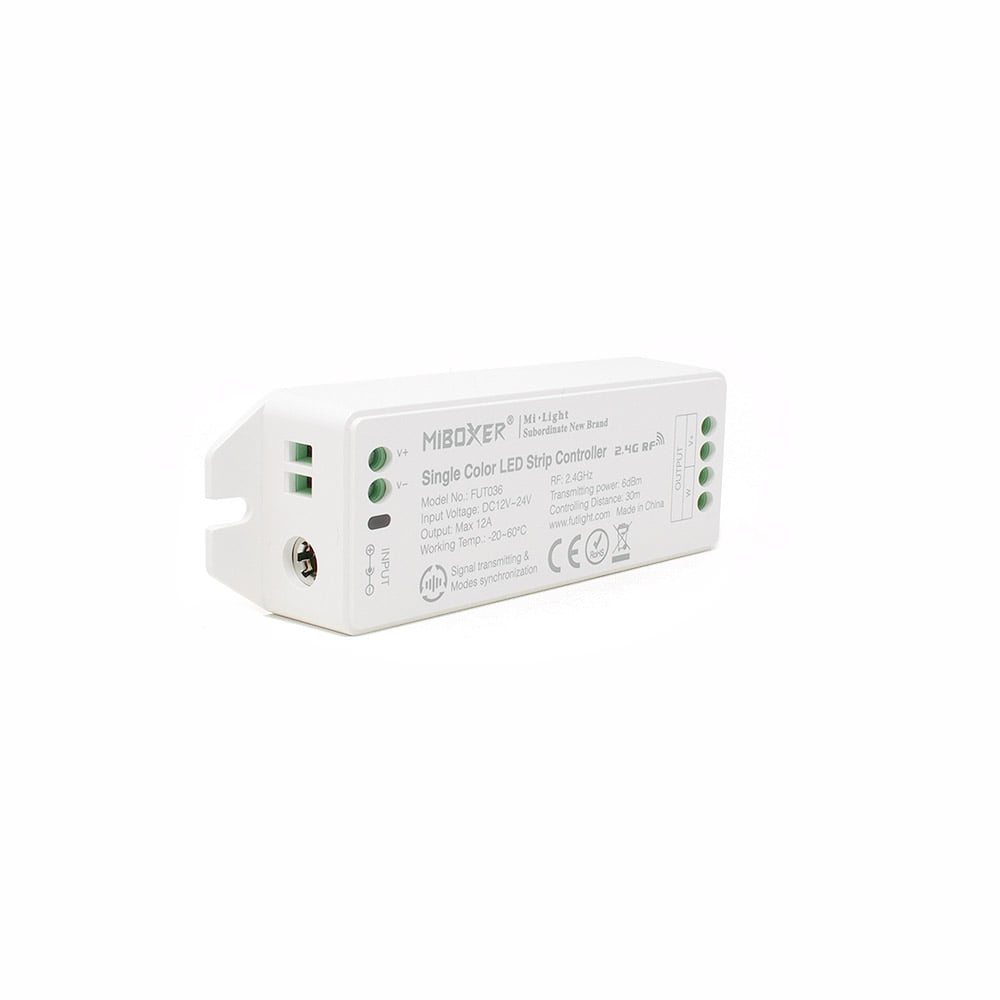

FUT036 MiBoxer Single Channel 2.4GHz RF Receiver

Product Code: FUT036
  • 2.4GHz RF Receiver
  • For Single Colour LED Lighting
  • Compatible with Mi-Light / MiBoxer handsets and wall panels
  • Smartphone Compatible
  • 30m signal transmiting and synchronization between receivers
  • Quick and easy to pair with handsets and wall panels
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

This high-quality Wireless Single Channel RF LED Receiver from Mi-Light. It is compatible with 2.4G RF LED Controllers and wall panels. Control your low voltage (12V or 24V) remote controlled single colour LED lighting products with ease.



This LED remote receiver is suitable for both commercial and domestic markets. Particularly ideal for professional lighting systems as the receivers can extend the wireless range of LED controllers. It is a perfect solution to enabling remote control lighting in commercial spaces such as restaurants, retail outlets and hotels. It is also suitable for LED control in your smart home as it can be integrated into your home automation network.

It is designed to control single colour, the RF remote receiver allows you to wirelessly switch your lighting on or off. You can also dim your lighting using this LED light receiver.



All our 2.4GHz RF receivers feature an auto transmitting & synchronising function. Multiple units can be paired to the same zone on the controller, providing they are all within 30m of each other.

The maximum load on this receiver is 10A (5A / Channel) and the PWM Frequency is 4KHz. This receiver requires an input voltage of AC100-240V.

In addition, the LED strip controllers can also be paired with a smartphone application. They also support third party voice control products such as smart speakers

(Note: Additional Mi-Light WiFi hub required for these features).



This RF Controller Receiver is great for controlling your single colour, warm white or cool white LED lights, these products include:



Make sure your LED lighting is connected to a suitable power supply. Then simply wire the lights into your stylish LED receiver and enjoy full control over your LED lighting system.

Compatible Mi-Light controllers for this single colour strip controller can be found on the downloadable datasheet supplied.

Our whole range of LED Receivers include:

  • Single channel units
  • Dual channel (CCT)
  • RGB (Three-channel)
  • RGBW (Four-channel)
  • RGB+CCT (Five-channel)



Compatible Mi-Light LED lighting is sold separately. All Mi-Light products purchased from LED Technologies carry an exclusive five-year warranty.

For product assistance please contact us by telephone, email or via the website live chat.

FUT036 MiBoxer Single Channel 2.4GHz RF Receiver

Quick Specs

The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.

What's in the box?

  • RF Receiver
  • 3M Sticky Pad
  • Instruction manual
Product Code: FUT036
Product Packed Gift box
Manufacturer Mi-Light / MiBoxer
Product Type Controller / Receiver
IP Rating IP20 Non-Waterproof
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
5 Years
Input Voltage
This is the required amount of volts needed to power the product.
100v - 240v AC
Output Voltage 12v / 24v DC
Connectivity RF
Size L119x W37.5 x H22mm
Dimmable: No
Wireless Range Up to 30 metres
Transmitting Power 6dBm
Operation Frequency 2.4GHz
Operating Temp -20~60°C
Total Output Max12A
Output Max 12A
Smart Synchronisation Version 2.0
Datasheet - FUT036 Download
