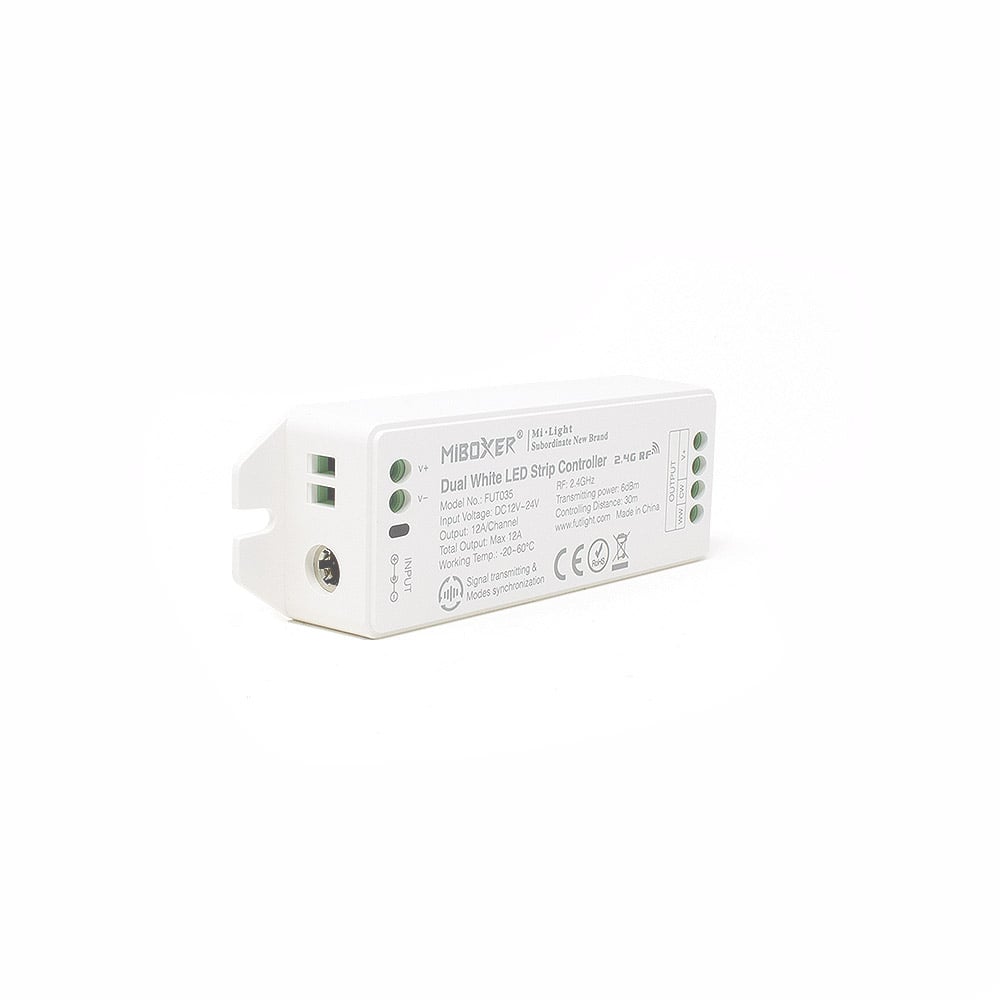

FUT035 MiBoxer Two Channel (CCT) 2.4GHz RF Receiver

Product Code: FUT035
  • 2.4GHz RF Receiver
  • For colour temperature adjustable LEDs
  • Compatible with Mi-Light / MiBoxer handsets and wall panels
  • Smartphone Compatible (WLBOX1 Required for this feature)
  • 30m signal transmiting and synchronization between receivers
  • Quick and easy to pair with handsets and wall panels
100V - 240V AC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Sign In/Register to view Prices

Product Description

This high-quality Wireless Dual Channel RF LED Receiver from Mi-Light. It is designed to be compatible with 2.4G RF LED remote Controllers or wall panels.

In addition, the LED strip controllers can also be paired with a smartphone application. They also support third-party voice control products such as smart speakers (Note: Additional Mi-Light WiFi hub required for these features).

This 2-channel transmitter receiver is designed to control dual-channel LED lighting to adjust the colour temperature or brightness. Achieve perfect lighting from your LED lights using this RF LED light receiver. You can either choose functional cool whites or adjust to soft romantic warm whites



All our 2.4GHz radio frequency receivers feature an auto transmitting & synchronising function. Multiple units can be paired to the same zone on the controller, providing they are all within 30m of each other.

The maximum load on this LED two-channel receiver is 10A (5A / Channel) and the PWM Frequency is 4KHz. This receiver requires an input voltage of AC100-240V.



Make sure your LED lighting is connected to a suitable 100v - 240v AC power supply. Then simply wire the lights into your stylish LED dual-channel receiver and enjoy full control over your LED lighting system.

Compatible Mi-Light controllers for this dual white strip controller can be found on the downloadable datasheet supplied.



For more information on this product and control options, please contact our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Controls through our website or contact our technical sales team.



FUT035 MiBoxer Two Channel (CCT) 2.4GHz RF Receiver

Quick Specs

  • Guarantee Period5 Years
  • IP RatingIP20 Non-Waterproof
  • Input Voltage100V - 240V AC

What's in the box

  • RF Receiver
  • 3M Sticky Pad
  • Instruction manual

Technical Specification

  • Product Code: FUT035
  • Product Packed Gift box
  • Manufacturer Mi-Light / MiBoxer
  • LED Strip Brands Mi-Light MiBoxer
  • Product Type Controller / Receiver
  • IP Rating IP20 Non-Waterproof
  • Guarantee Period 5 Years
  • Input Voltage 100V - 240V AC
  • Output Voltage 12V / 24V DC
  • Connectivity RF
  • Size L119x W37.5 x H22mm
  • Dimmable: No
  • Wireless Range Up to 30 metres
  • Transmitting Power 6dBm
  • Operation Frequency 2.4GHz
  • Operating Temp -20~60°C
  • Total Output Max12A
  • Output Max 12A/Channel
  • Smart Synchronisation Version 2.0

Product Datasheets

  • pdf Datasheet - FUT035 Download
  • pdf MiBoxer Distributor Authentication Notice Download
