Dado Rail LED Profile 2 MTR

Product Code: 100.889
  • Suitable for products up to W12mm
  • Durable anodised aluminium
  • Acts as a heat sink, aids cooling
  • Reduces glare and softens light output
  • Sturdy housing protects LED strip
  • Clip In Diffuser
  • Easy fit end caps and diffuser
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert

Due to handling & shipping rates our 1 & 2 mtr profiles now have a shipping surcharge in addition to our standard next day service. We also have minimum quantity order on 2mtr lengths.

If you order online we will contact you to confirm your order alternatively please contact our sales office on 01260 540014 to place your order.

Speak with an Expert

Product Description

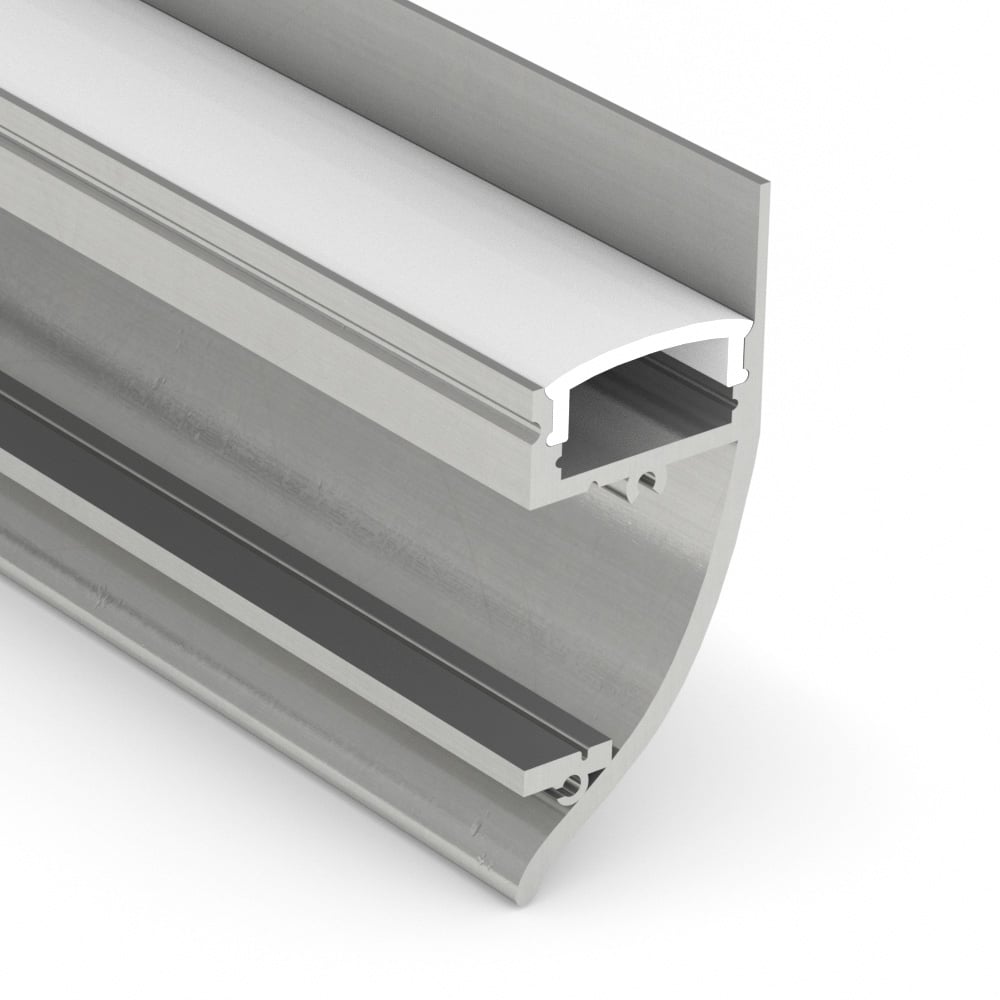

This high-quality 2m aluminium LED Heat Sink is available from our wide range of LED Strip Profiles. The profile features a Dado rail design to enable you to accent your walls with LED lights.



Features of the Profile

This LED strip light profile is perfect for high powered lighting strips that emit more heat than the average strip lights.

This LED aluminium profile also features a sturdy housing that will protect your lighting products. It will reduce spotting effects of standard LED lights while also diffusing the light for a soft lighting effect.

The aluminium profiles can be wall mounted or surface mounted easily using the mounting clips provided. It further provides a smooth and clean surface to mount your LEDs onto which some surfaces will not be able to provide.

The rail can also be painted to match the wall it is mounted upon and the light is emitted from the top.



It is suitable for installation with 12mm or smaller width strip lights.

The profile also comes with diffuser end caps, hanging wires and connectors and mounting brackets. Everything you need to protect your LED lighting in a contemporary and stylish way.



One of the main benefits of using LED profiles is that it will extend the life of your LED tape light products. This will ensure that your LED strips will not need replacing regularly saving you money in the long run.

The profiles are also extremally easy to clean and stop the strip lights coming into contact with cleaning materials.

All our profiles are available for next day delivery if ordered before the cut off time.



Using LED Profiles

This aluminium profile is perfect for your mounted LED strip lights in both commercial and domestic markets. This slim compact profile will be the perfect product for decorative and accent lighting projects.

The profile is suitable for your smart home in living rooms, bedrooms, kitchens and storage rooms. It will enable you to effortlessly mount your lighting for a sleek and modern look. It can be installed on ceilings, walls or under cabinets and shelves to create beautiful glows.

Its perfect for adding accent lighting to your walls in your home with beautiful and intriguing lighting designs.

It is also perfect for commercial spaces such as theatres, cinemas, retail outlets, restaurants and offices where high powered LED strips are required.



Read our blog for further lighting idea such as our guide for home improvements.

Installing LED Profiles

The profile can be mounted using the fixing clips provided or hanging clips. It can also be fixed into place by screwing through the back of the profile with a countersunk headed screw. This gives you freedom over placement of your LED strip lights.

To mount the strips onto the profile, simply peel the protective paper off the lights to reveal the adhesive backing. You can then attach the strip to the profile.

Take care when mounting the tape to ensure the tape is lined up perfectly on the profile. It is not recommended to remove strip lights and re-stick them as this can damage the lights. Therefore it is important to line the lights up properly the first time.

Note: When installing LED strips into a profile, check that the back of the strip remains insulated from the profile. The profile is aluminium, meaning it will conduct the low voltage power going through the tape, causing it to stop working.



Other Products

LED Technologies offer a wide range of LED profiles including:

  • Flat LED Profiles
  • Deep LED Profiles
  • Corner LED Profiles
  • Recessed LED Profiles
  • Walk over profiles



We also offer a range of LED strip lights including:

  • Single Colour
  • Duo Colour
  • RGB Colour
  • RGBW Colour
  • Waterproof



Note: Ensure the strips are no more than 12mm in width to ensure it will fit onto the profile.

Shop our range of products through our website or contact our technical sales team.

Aluminium Extrusion for LED Strip Light

Quick Specs

What's in the box?

  • 1 x Aluminium Base
  • 1 x Diffuser
  • Fixing Clips
Product Code: 100.889
Product Packed Tube
Manufacturer LED Technologies
Product Type Extrusion
Colour Brushed Aluminium
IP Rating IP20 Non-Waterproof
Metres 2 MTR
PCB Weight Not Applicable
CRI Rating (greater than) CRI >80
Dimmable: No
LED Type Not Applicable
Average LED life Hrs 30,000
Colour Temperature Variation IP20 No
Materials Die Cast Aluminium
Power Factor > Not Applicable
Wireless Range Up to 30 metres
Continuous Operation Not suitable for 24/7 continuous use
Profile Extrusion-Plastic Element-Datasheet Download
