Wide Box LED Profile 1 MTR

Product Code: 100.713
  • Suitable for products up to W52mm
  • Durable anodised aluminium
  • Acts as a heat sink, aids cooling
  • Reduces glare and softens light output
  • Sturdy housing protects LED strip
  • Clip In DIffuser
  • Easy fit end caps and diffuser
  • Easy installation
CRI 80
IP Rating 20
1 mtr
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert

Due to handling & shipping rates our 1 & 2 mtr profiles now have a shipping surcharge in addition to our standard next day service. We also have minimum quantity order on 2mtr lengths.

If you order online we will contact you to confirm your order alternatively please contact our sales office on 01260 540014 to place your order.

Speak with an Expert

Product Description

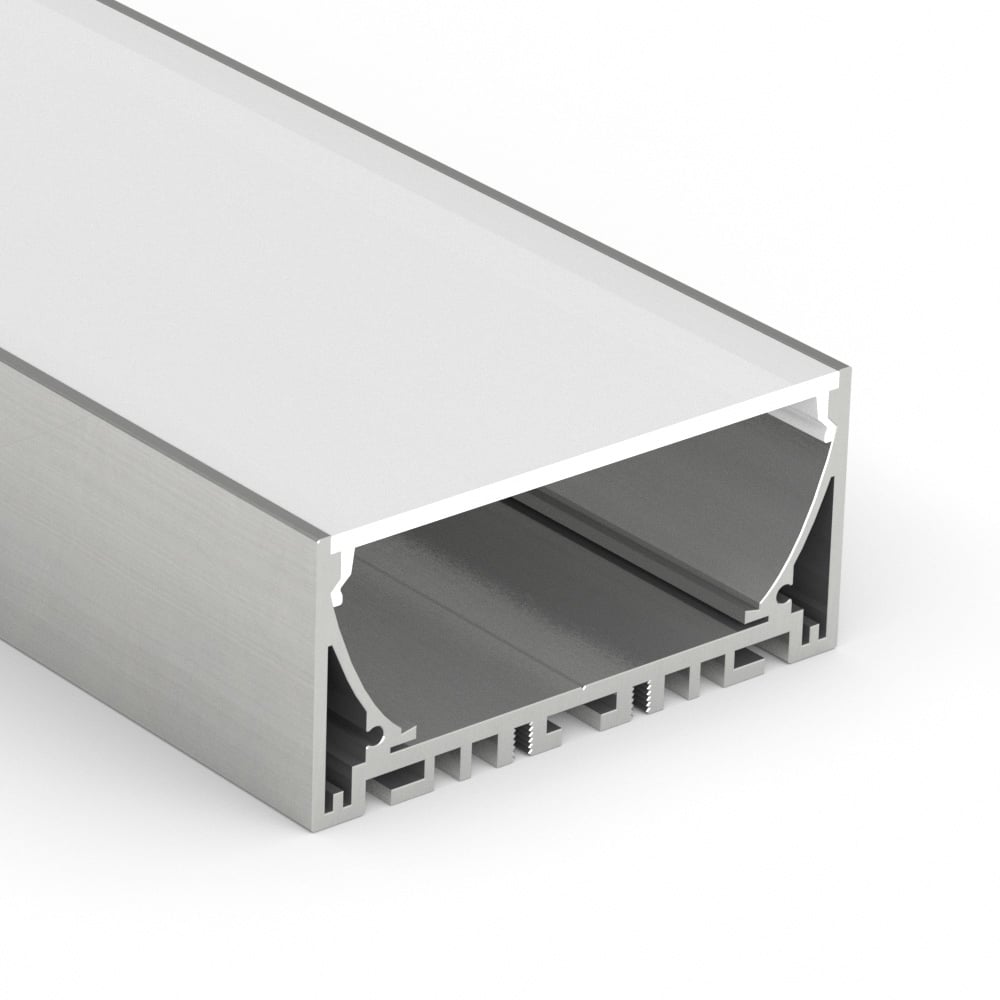

This wide box LED profile is a high-quality and durable solution for housing LED strip lights. It is 1M in length and can be cut to custom sizes to fit perfectly into any space. It has a depth of 35mm, which can house LED tape that is no more than 52mm in width.



Deep LED strip channels offer loads of benefits that include prolonging the life of the LED light strips. Read our "Why do I need LED profile" blog for 7 reasons why we recommend utilising LED profiles.

Our LED deep channels are ideal for creating spotless lighting as the strip will not be sitting directly under the diffuser. Therefore, the light can be more evenly distributed compared to shallow LED extrusions.



This deep LED extrusion is made from high-quality anodised aluminium with a clip-in diffuser. It is designed for large voids, enabling the lighting to look as if it is part of the surface. This deep profile will create a beautiful bar of solid light, an ideal solution for contemporary and elegant lighting in both commercial and domestic projects.



Installation

Deep LED channels can be mounted using the mounting clips provided or hanging clips. It can also be fixed by screwing through the back of the profile with a countersunk-headed screw.

Note: When installing LED strips into a profile, check that the back of the strip remains insulated from the profile. The profile is aluminium, meaning it will conduct the low-voltage power going through the tape, causing it to stop working.



For more information on this product, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Profiles through our website or contact our technical sales team.

Quick Specs

CRI 80
IP Rating 20
1 mtr

What's in the box?

  • 1 x Aluminium Base
  • 1 x Diffuser
  • End Caps
  • Fixing Clips
Product Code: 100.713
Product Packed Tube
Manufacturer LED Technologies
Product Type Extrusion
Colour Brushed Aluminium
IP Rating IP20 Non-Waterproof
Metres 1 MTR
PCB Weight Not Applicable
Size See Schematic Diagram
CRI Rating (greater than) CRI >80
Dimmable: No
LED Type Not Applicable
Average LED life Hrs 30,000
Power Factor > Not Applicable
Continuous Operation Not suitable for 24/7 continuous use
Profile Extrusion-Plastic Element-Datasheet Download
Datasheet - 100.713 Download
