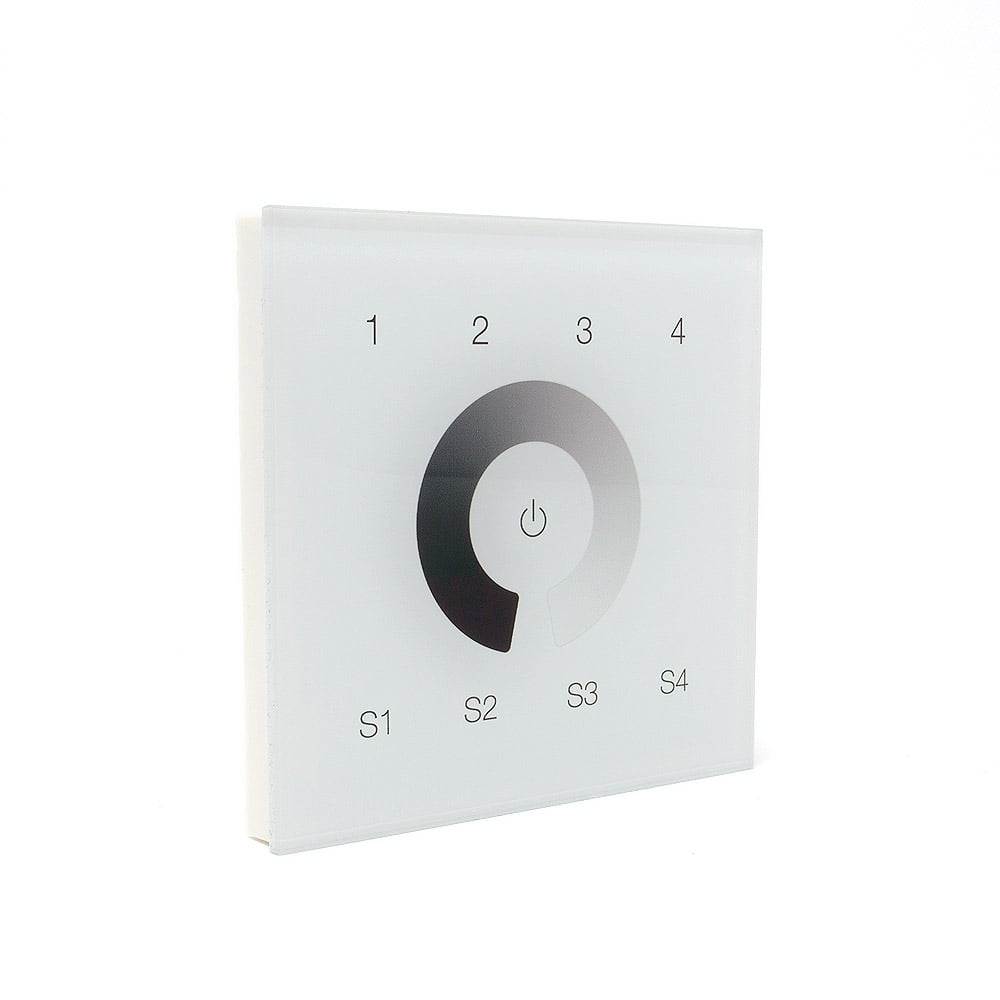

Sunricher Z-Wave Single Colour 4 Group Wall Panel White (Mains voltage)

Product Code: SRZV9001T4DIMWH
  • Z-Wave single colour 4 group wall panel
  • Works with all Z-Wave devices
  • Smooth dimming
  • Four programmable scenes
  • Security enabled Z-Wave plus product
  • Extends the Z-Wave network
  • Supports Over the Air firmware updates
  • Stylish white glass touch panel design
Guarantee
IP Rating
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

From our range of Sunricher Z-Wave licenced products, this four group Single Colour wall panel controller is a security enabled Z-Wave Plus device that can control other Z-Wave devices and activate various scenes in Gateways.  The wall controller can be included in any Z-Wave network with other Z-Wave certified devices and all non‐battery operated "nodes" within the network will also act as repeaters to increase the reliability and range of the Z-Wave network.

Although the wall panel can control other devices it cannot act as Z-Wave network primary or secondary controller so a security enabled controller is required to take full advantage of all the functions on the wall panel.  The wall panel also supports the "Over The Air" (OTA) feature for any firmware updates as they become available.

When incorporated into your Z-Wave system this wall panel is perfect for switching and dimming your single colour LED products and as a high quality product it is perfect for both commercial and domestic use.

Quick Specs

CRI Rating
Guarantee
IP Rating
Connectivity

What's in the box?

  • Z-Wave Single Colour Wall Panel (White)
  • Fixing kit
  • Instruction manual
Product Code: SRZV9001T4DIMWH
Product Packed Gift box
Manufacturer LED Technologies
Product Type Controller
Colour
rthrhrh
White
IP Rating IP20 Non-Waterproof
Guarantee Period 5 Years
Wattage 0.50w
Input Voltage
This is the required amount of volts needed to power the product.
100v - 240v AC
Connectivity Z Wave protocols
PCB Weight Not Applicable
Size: 86 x 86 x 29.1mm
CRI Rating (greater than) CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs 30,000
Colour Temperature Variation IP20 No
Power Factor > Not Applicable
Wireless Range Up to 40 metres
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type Mains Voltage
Operating Temp 0-40°C
Operation Frequency 868.42 MHz
Adjustable PWM Not Applicable
Relative Humidity 8% to 80%
SDK 6.71.01
Routing Yes
FLiRS No
Explorer Frame Support Yes
Datasheet - SR-ZV9001T4-DIM Download
