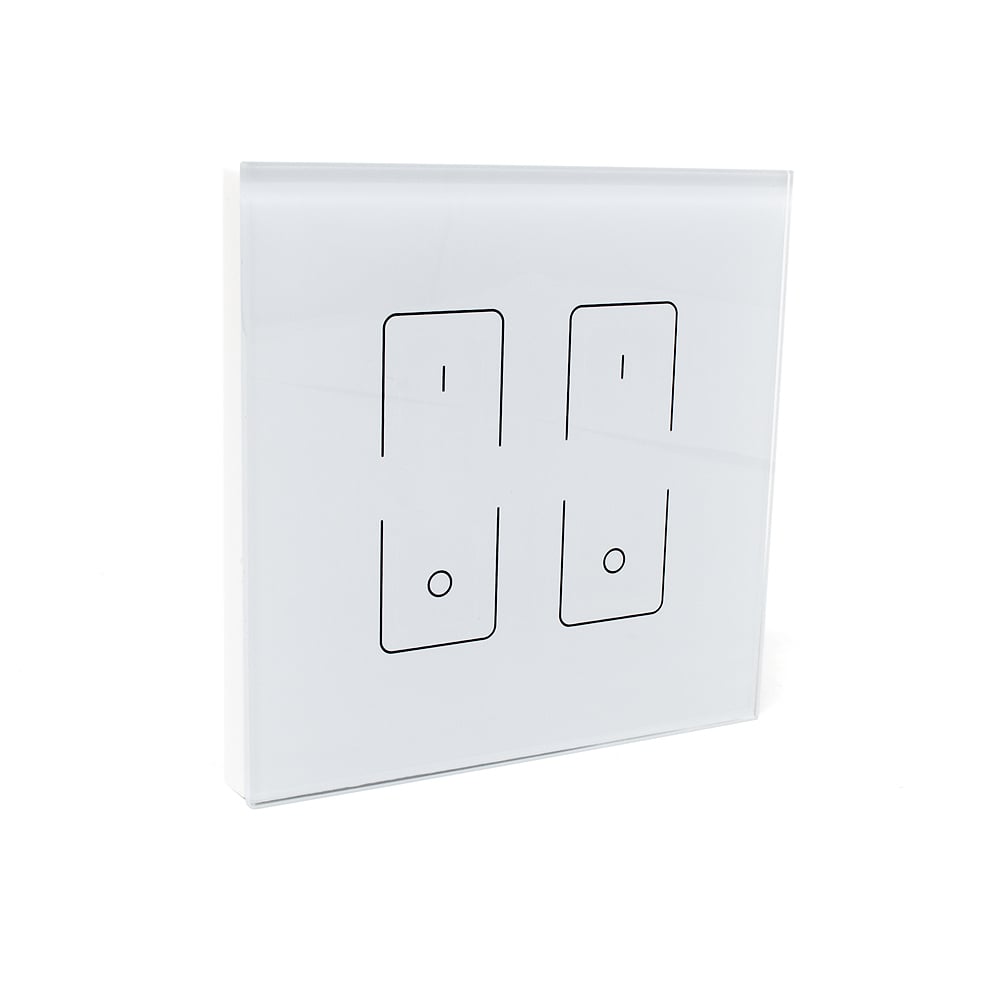

Sunricher RF 2 Zone Wall Panel for SR2501N Receivers (Low Voltage)

Product Code: SR2805T1WHITE
  • For use with the SR2501N Receivers only
  • Two Zone wall panel for on/off & dimming
  • Can individually switch & dim single colour LED
  • Easy to pair with receiver
  • Back lighting so easy to see in the dark
  • Low voltage connection 12v or 24v DC
  • Press to switch on/off
  • Press and Hold for smooth dimming
  • Stylish white glass touch panel
White / Glass
IP20 No
12V / 24V DC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Sign In/Register to view Prices

Product Description

This RF LED dimmer switch is available from our stunning range of Sunricher control gear. Featuring an elegant white glass finish, it has fully touch-sensitive controls. Perfect for controlling single-colour LED lighting such as LED strip lights from 20m away.

A Radio Frequency (RF) control system is a simple way of controlling your LED lighting. It communicates using radio waves, making it a simplistic wireless control solution.



Using the touch controls, this RF dimmer light switch features:

  • Easy switching (On/Off)
  • Smooth dimming
  • 2 zone control
  • Backlit (For operation in the dark)



This RF wall LED dimmer requires a 12v / 24v DC power supply to operate. It then needs to be paired with an SR2501N receiver. It is possible to connect up to eight RF dimmer switches to each receiver but an unlimited number of receivers to each zone on the wall panel.



For more information on this product and control options, please contact our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Controls through our website or contact our technical sales team.

Quick Specs

  • CRI Rating (greater than)CRI >80
  • ColourWhite / Glass
  • Guarantee Period5 Years
  • IP RatingIP20 Non-Waterproof
  • Colour Temperature VariationIP20 No
  • Input Voltage12V / 24V DC

What's in the box

  • Sunricher RF 2 x Zone Wall Panel for SR2501N Receivers (Low Voltage)
  • Instruction manual

Technical Specification

  • Product Code: SR2805T1WHITE
  • Product Packed Gift box
  • Manufacturer LED Technologies
  • LED Strip Brands Sunricher
  • Product Type Controller
  • Colour White / Glass
  • IP Rating IP20 Non-Waterproof
  • Guarantee Period 5 Years
  • Input Voltage 12V / 24V DC
  • Connectivity RF
  • PCB Weight Not Applicable
  • Size 86 x 86 x 29.1mm
  • CRI Rating (greater than) CRI >80
  • Dimmable: No
  • LED Type Not Applicable
  • Average LED life Hrs 30,000
  • Power Factor > Not Applicable
  • Wireless Range Up to 20 metres
  • Continuous Operation Not suitable for 24/7 continuous use
  • Voltage Type Low Voltage
  • Relative Humidity 8% to 80%
  • Operation Frequency 868/869.5/434MHz
  • Operating Temp 0-40°C

Product Datasheets

  • pdf Datasheet - SR2805T1WHITE Download
