Sunricher ZIGBEE Dual Colour (CCT) 1 Group 4 Scene Wall Panel White (Mains voltage)

Product Code: SRZG9001TCCTWH
  • Uses latest ZIGBEE 3.0 protocols
  • Works with all ZIGBEE devices & hubs
  • Supports "find & bind" mode
  • Enables "touch-link" commissioning
  • Extends the ZIGBEE network
  • One group plus 4 store & recall scenes
  • Easy to connect to the ZIGBEE network
  • Controls CCT adjustable LED products
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

This ZIGBEE wall controller is from the Sunricher range. It is designed to control 1 group of universal dual colour ZIGBEE devices.

These are ideal installations in the domestic and commercial markets, suitable for a range of areas such as bedroom, living rooms or even offices. It is a highly reliable and a high quality product perfect for controlling your ZIGBEE network.

The ZIGBEE lighting control controls 1 zone which can control a maximum of 30 binded lighting devices. It supports "touch-link" commissioning and "find and bind" mode to pair with other ZIGBEE lighting devices after added to the same ZIGBEE network.



The wall mounted control panel allows you to effortlessly control the brightness using the 4 buttons located at the top of the ZIGBEE controller. It enables you to choose from 25%, 50%, 75% and 100% brightness. It enables you to switch your LED lighting on or off using the ON/OFF button. The touch sensitive disc allows you smooth control over temperature from cool, daylight and warm white colours. The wall panel also allows you to adjust colour intensity using the appropriate buttons.

The ZIGBEE remote control features 4 programmable scenes. Your unique lighting settings can be stored and effortlessly recalled at the touch of a button.

This is compatible with a range of dual colour LED lighting products such as LED strip lights.



The ZIGBEE controller is the perfect addition to your smart home as ZIGBEE networks are designed to be integrated with your home automation system.

The wall panel requires a 100v or 240v AC power supply and must be used in conjunction with a ZIGBEE receiver.

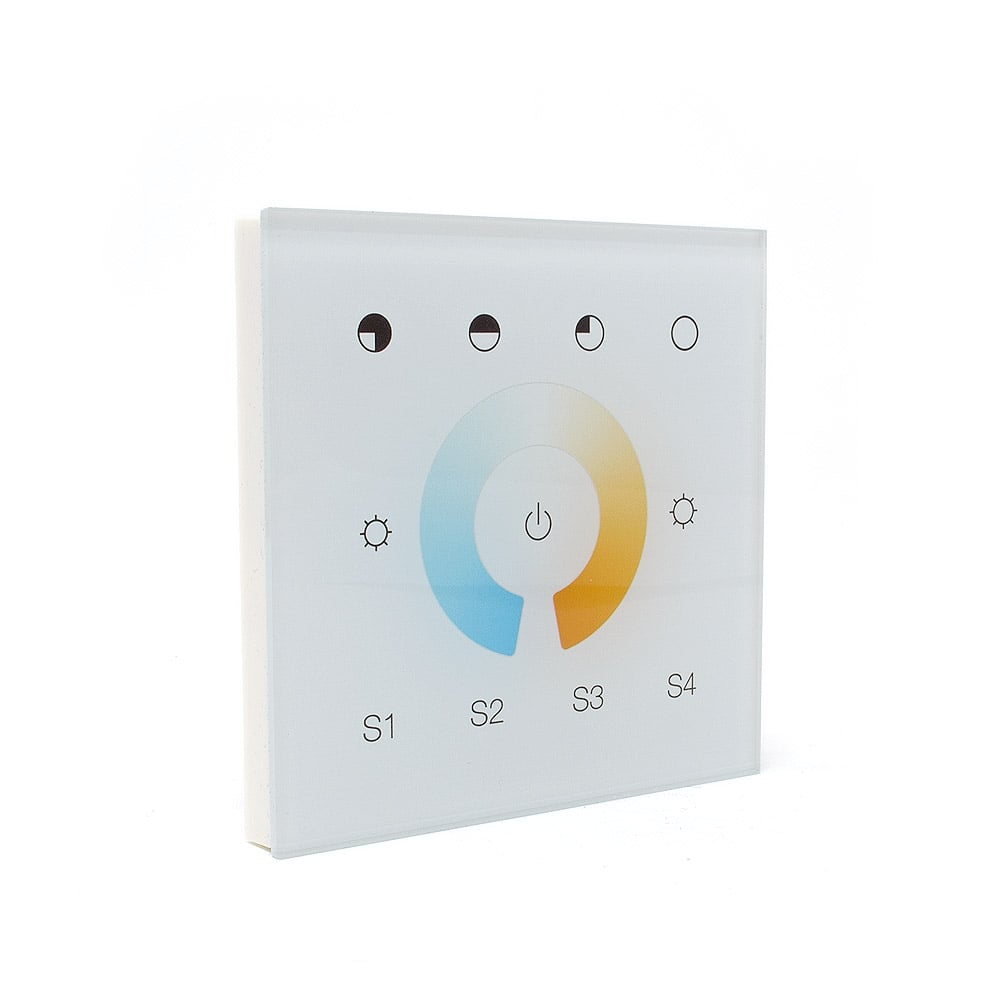

The wall mounted LED controller has an attractive white finish touch sensitive glass panel.

Quick Specs

The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.

What's in the box?

  • ZIGBEE Dual Colour white wall panel
  • Fixing kit
  • Instruction manual
Product Code: SRZG9001TCCTWH
Product Packed Gift box
Manufacturer LED Technologies
Product Type Controller
Colour White
IP Rating IP20 Non-Waterproof
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
5 Years
Input Voltage
This is the required amount of volts needed to power the product.
100v - 240v AC
Connectivity ZIGBEE protocols
PCB Weight Not Applicable
Size 86 x 86 x 29.1mm
CRI Rating (greater than) CRI >80
Dimmable: Yes
LED Type Not Applicable
Average LED life Hrs 30,000
Colour Temperature Variation IP20 No
Power Factor > Not Applicable
Wireless Range Up to 30 metres
Continuous Operation Not suitable for 24/7 continuous use
Voltage Type Mains Voltage
Relative Humidity 8% to 80%
Operation Frequency 2.4GHz
Operating Temp 0-40°C
Datasheet - SRZG9001TCCT Download
