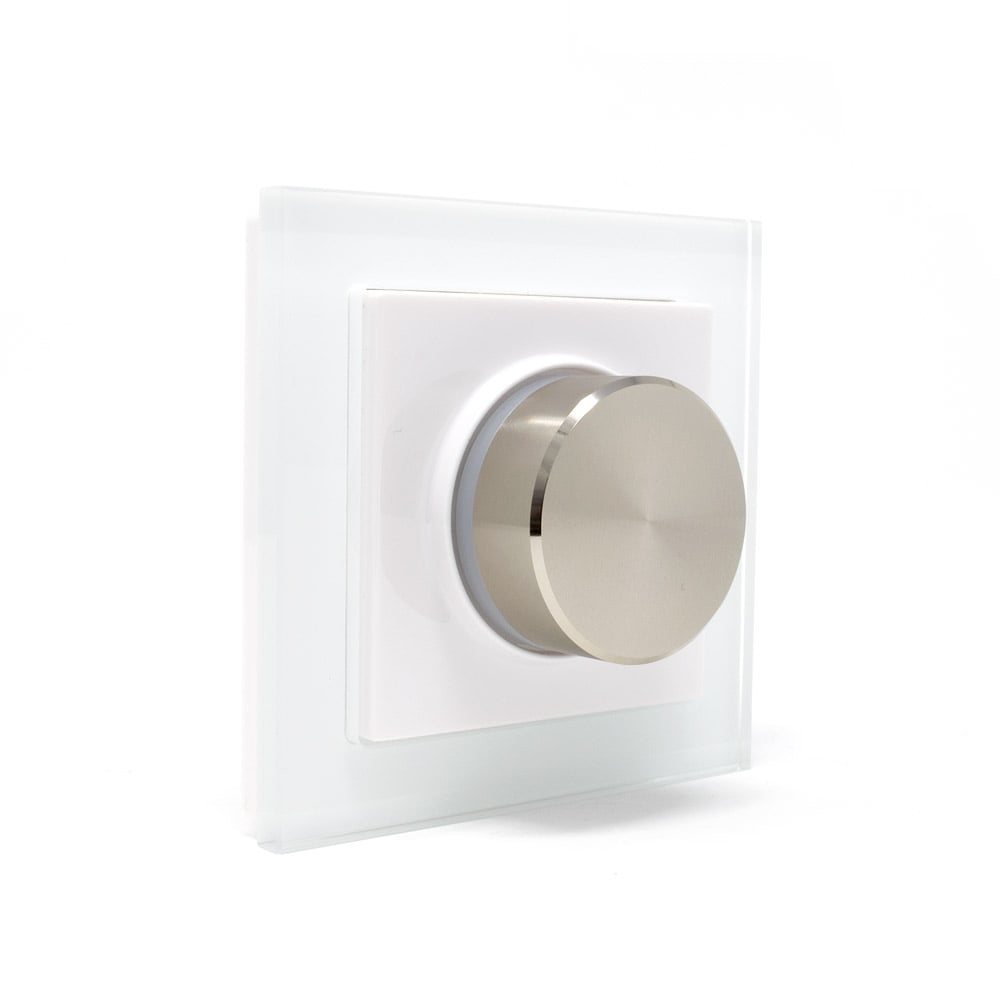

Sunricher DALI DT6 / DT8 RGB Group Control DALI Wall Panel (DALI BUS powered)

Product Code: SR2410RGRGBGLDT8
  • DALI DT6 & DT8 RGB wall panel
  • DALI Bus powered
  • Can control 1 x DALI group of devices
  • Controls all DALI devices on the circuit
  • Compatible with DALI DT8 colour tuning
  • Rear rotary switch for assigning groups
  • Works with all available DALI products
  • Back light indicator mimics light setting
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

Complying with all DALI standard protocols IEC 62386-209:2011 this high quality DALI wall panel will control one DALI group of DALI devices connected to your RGB TRi-Colour LED products.  It supports all DALI DT6 & DT8 products so will integrate with your existing DALI system perfectly, in additional as it is powered from the DALI bus it does not require a separate driver.

To operate the wall panel, simply click the control knob to switch your lighting on and off, turn to increase or decrease the intensity.  To change the colour, double click the control knob and turn to select the colour as required.

With a stylish glass back panel, brushed aluminium control knob and back-light feature which mimics the level and colour of the lighting on the circuit, this wall panel is ideal for use in both domestic and commercial premises that have a DALI control system installed.

Quick Specs

What's in the box?

  • DALI DT6 / DT8 RGB Group Control Wall Panel
  • Fixing Kit
  • Instruction Manual
Product Code: SR2410RGRGBGLDT8
Product Packed Gift box
Manufacturer LED Technologies
Product Type Controller
Colour
rthrhrh
White
IP Rating IP20 Non-Waterproof
Guarantee Period 5 Years
Current 4mA
Input Voltage
This is the required amount of volts needed to power the product.
DALI Bus Powered
Connectivity DALI DT8 Protocols
PCB Weight Not Applicable
Size 80 x 80 x 20.8mm
CRI Rating (greater than) CRI >80
Dimmable: Yes
LED Type Not Applicable
Average LED life Hrs 30,000
Colour Temperature Variation IP20 No
Power Factor > Not Applicable
Continuous Operation Not suitable for 24/7 continuous use
Relative Humidity 8% to 80%
Operating Temp 0-40°C
Datasheet - SR2410RGRGBGL Download
