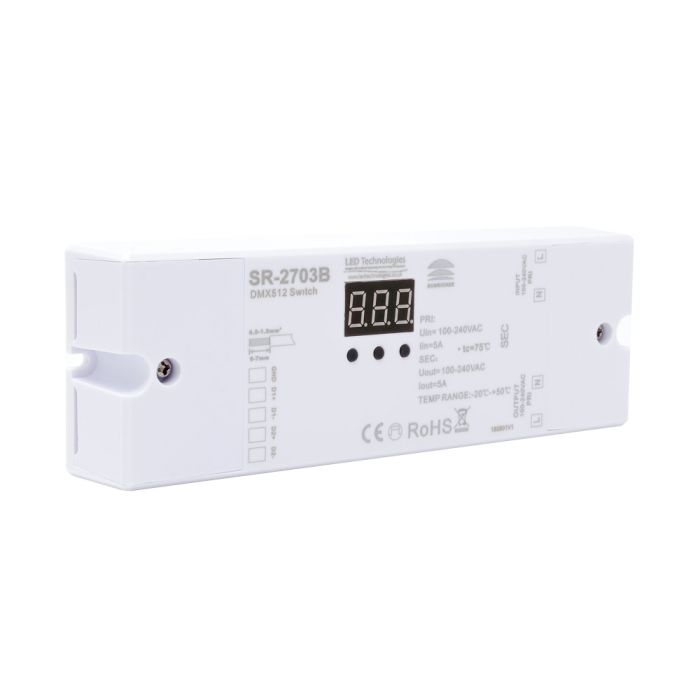

Sunricher DMX Single Channel Mains Powered Switch

Product Code: SR2703B
  • Single channel DMX512 AC switch
  • For switching mains powered products
  • Uses DMX512 protocols
  • Will switch AC mains LED lamps
  • Also for incandescent & halogen lamps
  • Hard wired DMX in/out connections
  • For 100v - 240v AC products only
  • Digital display for ease of setup
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

Available from our professional range of Sunricher LED control products is this DMX single-channel mains-powered switch.

This slim, single-channel mains-powered DMX512 decoder / AC switch is an installation-grade product suitable for use in domestic and commercial environments. This product would be used in places such as hotels, restaurants and retail outlets, where multiple sets of LED Strip lighting or other LED lighting units are to be connected to a DMX512 data source.

This DMX decoder is effectively a DMX-operated AC mains switch which will work from an AC mains power supply. The operating input voltage is 100v - 240v AC and the output voltage is 100v - 240v AC at 5A.

This product has a digital display to easily set the DMX address.

For ease of connection, hard-wired input terminals for power are provided and input/output link terminals are supplied for DMX channels with a single hard-wired output terminal for your LED product.

This DMX LED controller will be suitable for your single-coloured LED tapes including white LED lighting units. We supply a range of DMX controllers which are suitable to use with this product.

Quick Specs

The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.

What's in the box?

  • Single channel DMX 512 AC switch
  • Instruction manual
Product Code: SR2703B
Product Packed Gift box
Manufacturer LED Technologies
Product Type DMX Decoder / AC Switch
Colour White
IP Rating IP20 Non-Waterproof
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
5 Years
Wattage 500w
Current 5A
Input Voltage
This is the required amount of volts needed to power the product.
100v - 240v AC
Output Voltage 100v - 240v AC
Connectivity DMX 512 protocols
Size 170 x 59 x 29mm
Dimmable: No
Voltage Type Mains Voltage
Relative Humidity 8% to 80%
Operation Frequency 868 / 869.5 / 916.5 / 434MHz
Operating Temp 0-40°C
Datasheet - SR2703B Download
