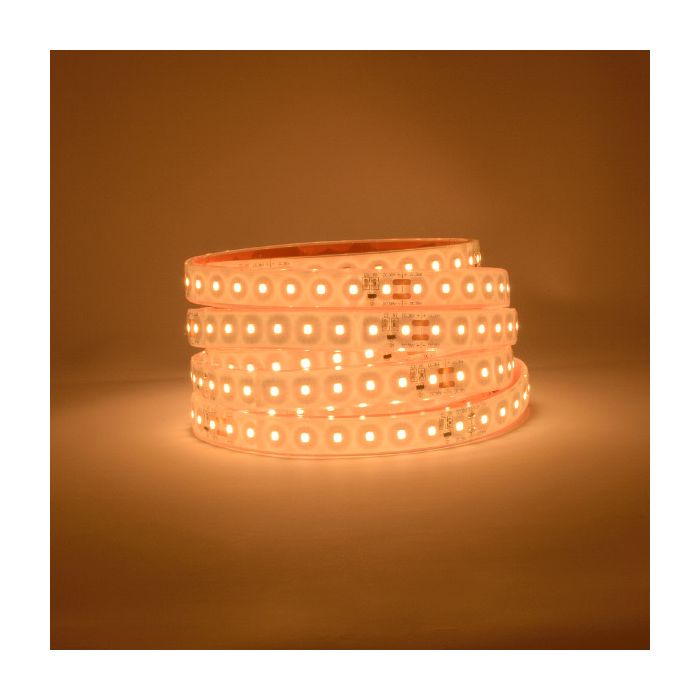

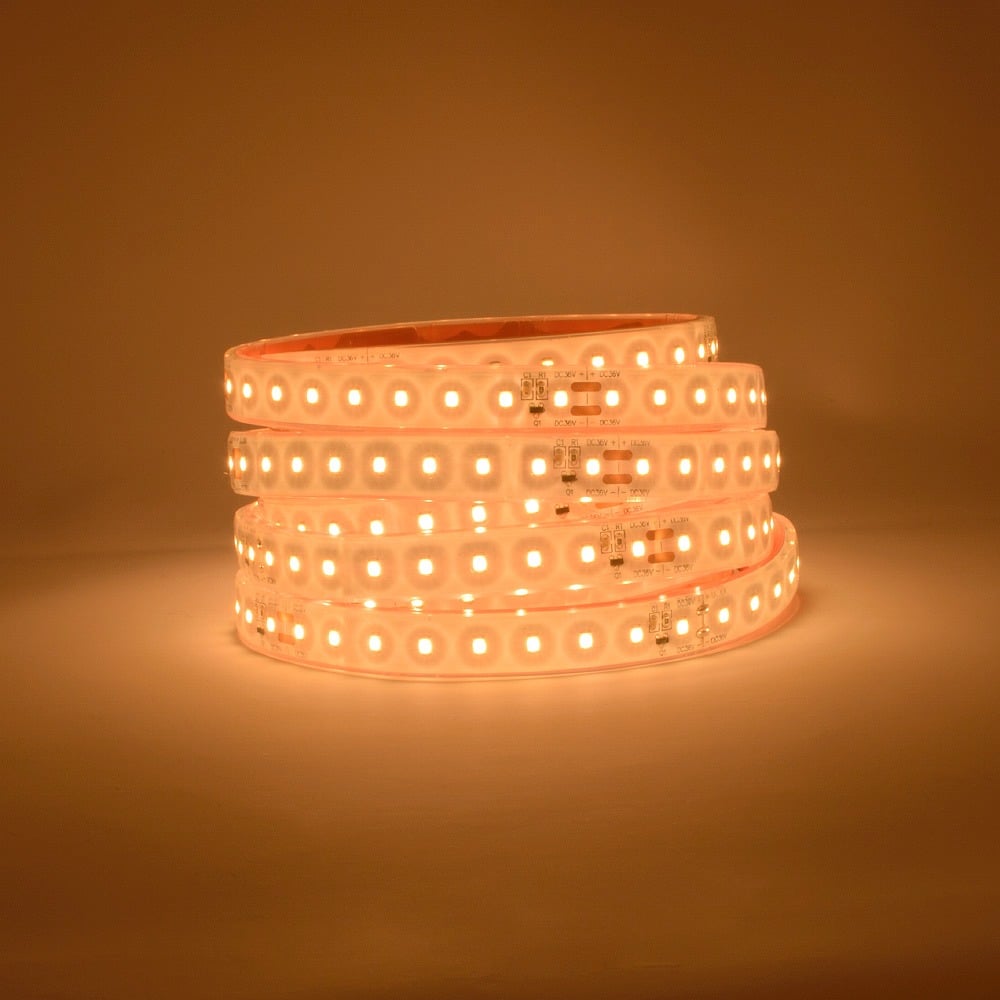

With a greater than 80 CRI rating and 90 x 3528 LED's /m at 7.2w /m, this superb long length ProFlex 36v tape is perfect for use in the installation industry where a reliable and professional grade LED flexible lighting product is required. This warmer white version is ideal for installing in restaurants, hotel reception and relaxation areas. It is also perfect for exhibitions, displays and signage where long lengths of LED tape are required. The IP67 rated silicone coating also enables it to be installed in wet or damp environments such as swimming pools, kitchens or bathrooms.
Long Length ProFlex products are supplied on a 10m roll with 1m tails at each end, they can be cut and joined every 100mm to a maximum overall length of 30m from one driver. The tape can be fixed using the super strong 4965 Tesa Tape backing.
Long Length ProFlex is fully dimmable and compatible with our range of SunRicher products. In addition, we stock a variety of DMX512 decoders for DMX control.
Specification
| Product Code: | 100.743 |
|---|---|
| Manufacturer | LED Technologies |
| Product Type | Flex |
| Colour | RGB |
| IP Rating | IP67 |
| LED per mtr | 90 p/Mtr |
| Guarantee Period | 3 Years |
| Wattage | 72w |
| Current | 200mA/M |
| Input Power: | 36v |
| PCB Weight | 3oz |
| Weight (g) | 1100.0000 |
| Size: | 14x4.8x10000mm Roll |
| Reel Length | 10M |
| Beam Angle: | 120 degree |
| LED Spacing | 11.1mm |
| Lumens P/LED | 7-8lm |
| Lumens P/Mtr | 650-700lm |
| CRI Rating (greater than) | CRI 80 |
| Dimmable: | Yes |
| Cut Intervals: | 100mm |
| LED QTY | 90 leds per meter |
| LED Type: | Epistar 5050 |
| Continuous run in mtrs | 30 |
| Average LED life Hrs: | 50,000 |
| Base Type | Tails |
| CE and RoHS: | Yes |
| Peelable Back | 300LSE 3M Adhesive Tape |
| Colour Temperature Variation | IP67 Yes |
