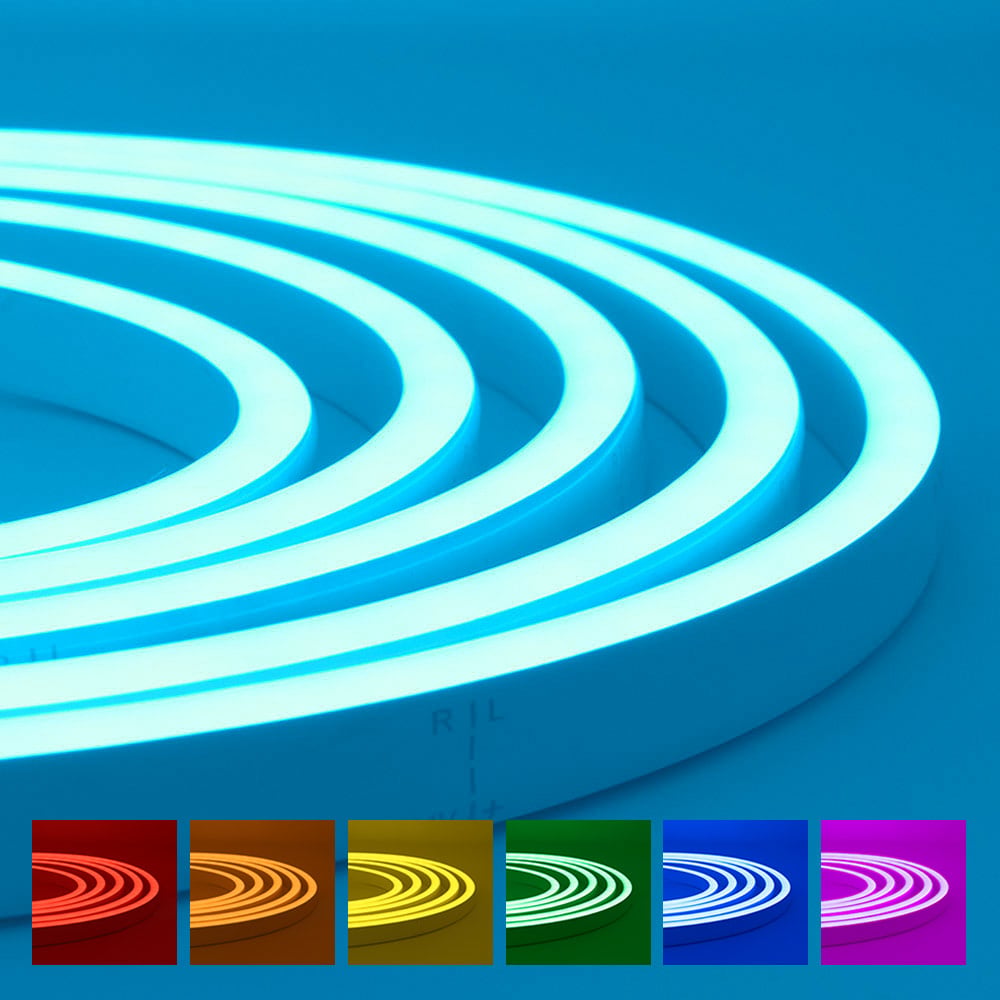

NEOLINEAR™ Sideview RGB Colour changing 5mtr

Product Code: 100.870

  • RGB Colour Changing
  • Can be flexed ''Side to Side''
  • 5% Maximum Pixelation
  • Bespoke & Available from Stock
  • 11.5 x 20 x 5000mm (W x H x L)
  • Rear Fed 1 Metre Cable at Both Ends
  • 5 Metre Roll
  • Daisy chain 10m in one line

From our NEOLINEAR™ range of professional flexible LED lighting solutions this "side view" RGB colour changing version is manufactured using high quality components.  NEOLINEAR™ is designed for professional installation purposes and is especially suitable for outdoor architectural projects.  NEOLINEAR™ is durable, flexible with minimal visible pixels.

Availability: In stock

Order in ? hours ?? minutes ?? seconds to get this item on Thursday 24th October*


RGB NEOLINEAR™ "side view" emits rich, vibrant colours from the top of the flex.  It is designed for both outdoor and indoor architectural projects in commercial installations such as shopping centres, hotels, restaurants and many other applications.

The IP67 rating offers protection against water, salt water, UV radiation and solvents making this product ideal for use in exposed locations and challenging environments such as coastal holiday resorts and theme parks.  Side view can be flexed "side to side" with a maximum radius of 15cm.

It is ideal for highlighting around the inside or outside of architectural features and a full range of accessories are available.  Each 5m length has a 1m wire tail from the underside of both ends.

NEOLINEAR™ products are fully dimmable and compatible with our RF remote and wall mounted controllers from the professional SunRicher control equipment range of products.  These including DMX512, PWM, ZIGBEE, 1-10v and DALI protocols.


Product Code: 100.870
Manufacturer LED Technologies
Product Type Neon Flex
Colour RGB
IP Rating IP67 Waterproof
LED per mtr 144 p/Mtr
Metres 5 MTR
Guarantee Period 3 Years
Wattage 60w
Current 500 mA/M
Input Voltage: 24v DC
Output Voltage 24v DC
PCB Weight 4oz
Weight (g) 2000.0000
Size: 11.5 x 20 x 5000mm Roll (W*H*L)
Reel Length 5M
Beam Angle: 120 degree
Power Consumption: 12w
Lumens P/LED 10 lm/m
Lumens P/Mtr 160 lm
Dimmable: Yes
Cut Intervals: 100mm
LED QTY 60 p/Mtr
LED Type: SMD5050
Continuous run 10mtrs Power 1 end, 20mtrs power both ends
Average LED life Hrs: 30,000
CE and RoHS: Yes
Max Bend 150mm
Operating Temp -20 to +45
Pixelation 5% Max Variable
Base Type With rear mould injection 100cm cable on both sides
