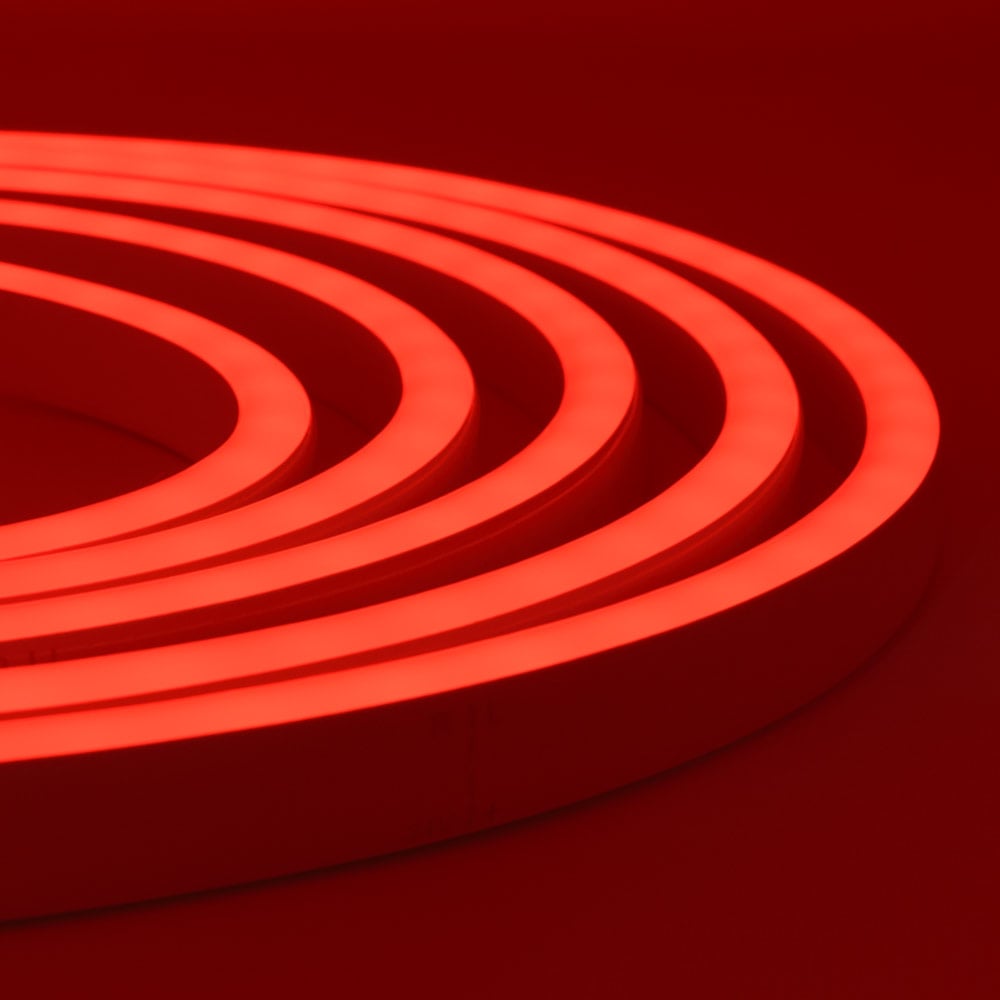

Neon Flex Sideview Red (620-625nm) 5MTR | NEOLINEAR

Product Code: 100.873
  • Red (620-625nm)
  • Can be flexed ''Side to Side''
  • 0% Pixelation
  • Bespoke & Available from Stock
  • 11.5 x 20 x 5000mm (W x H x L)
  • Rear Fed 1 Metre Cable at Both Ends
  • 5 Metre Roll
  • 3 Year Warranty*
  • Daisy chain 10m in one line
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

NEOLINEAR™ is a durable high specification Neon LED strip light product. The number one choice for external & internal Linear lighting. Our product range of LED Neon features a wide range of colours & styles and really is LED that looks like Neon light strips.

Our high-quality Red (620-625nm) NEOLINEAR™ "side view" emits a rich, bright Red LED light from the side of the flex. Our LED flexible neon is designed for both outdoor and indoor architectural projects in commercial installations. These include settings such as shopping centres, hotels, restaurants and many other applications where a neon light would be required.

The IP67 rating offers protection against:

  • Water and salt water
  • UV radiation
  • Solvents

This product is ideal for use in exposed locations and challenging environments. Due to the waterproof rating, this flexible LED neon light can be used in locations such as coastal holiday resorts and theme parks.

It is ideal for highlighting the inside or outside of architectural features and a full range of accessories are available. Each 5m length of Neon Flex has a 1m wire tail from the underside of both ends.



Side view LED Neon Flex Lighting:

NeoLinear™ Side is part of our professional range of LED Neon products for high end commercial and domestic installs. The Side View variation of NeoLinear™ is designed to be bent Side to side with light projecting upwards.

The Neon LED Strip flex itself has a maximum bend radius of 150mm and can be cut every 167mm. Once cut the Flex must be sealed with an end cap to maintain the IP rating for outdoor installs.



Custom bespoke Neon LED

The advantage of bespoke products is that you can specify exactly what you need. We can have custom lengths of LED Neon made by the factory if required. When you have the Neon custom made, there is more choice of single lengths (up to 10m long).

You can also specify the length of the connecting cables and where they are connected, back, side or end and also at one end or both ends of the strip.



NEOLINEAR™ products are fully dimmable and compatible with our RF remote and wall mounted controllers. These controllers are available from our professional Sunricher control equipment range of products. These include DMX512, PWM, ZIGBEE, 1-10v and DALI protocols.

NEOLINEAR™ is available in a variety of bright single colour options. We also supply a range of LED Neon Flex Warm White & Cool White LED options. Further to this we also keep stock of Neon Flex RGB and RGBNW Sideview flexes for colour changing projects.



IP67 - Waterproof: The 6 on the IP rating stands for totally protected against dust. The 7 stands for protection against temporary submersion. The test for this is between 15cm and 1m and of a duration of 30 minutes.

Quick Specs

The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
This is the required amount of volts needed to power the product.

Applications

  • TV Studios
  • Theatres
  • Bathrooms
  • Signage
Product Code: 100.873
Product Packed Anti static Bag
Manufacturer LED Technologies
Product Type Neon Flex
Colour Red
IP Rating IP67 Waterproof
LED per mtr
The amount of LED chips per 1 meter length.
144 p/Mtr
Metres 5 MTR
View Side View
Colour Temperature
Colour Temperature refers to the coolness or warmth of the light produced by the LED's indicated in degrees Kelvin.
620-625nm
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
3 Years
Guarantee Info *Warranty is 3 years for our standard production item. For customisation warranty is subject to negotiation.
Wattage 60w
Current 500 mA/M
Input Voltage
This is the required amount of volts needed to power the product.
24v DC
Output Voltage 24v DC
PCB Weight 4oz
Size 11.5 x 20 x 5000mm Roll (W*H*L)
Reel Length 5M
Beam Angle: 120 degree
Power Consumption: 12w
Lumens P/LED 4 lm/m
Lumens P/Mtr 62 lm
CRI Rating (greater than) CRI >80
Dimmable: Yes
Cut Intervals: 166.7mm
LED QTY 60 p/Mtr
LED Type SMD5050
Continuous run 10mtrs Power 1 end, 20mtrs power both ends
Average LED life Hrs 50,000
Colour Temperature Variation IP20 No
Power Factor > Not Applicable
Continuous Operation Not suitable for 24/7 continuous use
Max Bend 150mm
Pixelation Pixel Free
Base Type With rear mould injection 100cm cable on both sides
Operating Temp -20 to +45
Datasheet - NEOLINEAR_Sideview Download
