Sunricher Touch Sensor Mini PWM Dimmer
- Single touch sensor mini PWM dimmer
- For dimming 12v & 24v LED products
- Touch sensitive pad
- Designed extrusion mounting
- Touch & hold to dim single colour LED
- For low voltage LED products only
- Works with loads up to 500W (5A)
- Designed extrusion mount
*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.
Product Description
This touch sensor switch for LED lighting is available from our incredible range of Sunricher controls. It is designed to control single-coloured 12v or 24v LED luminaires such as LED strip lights up to a maximum load of 5A.

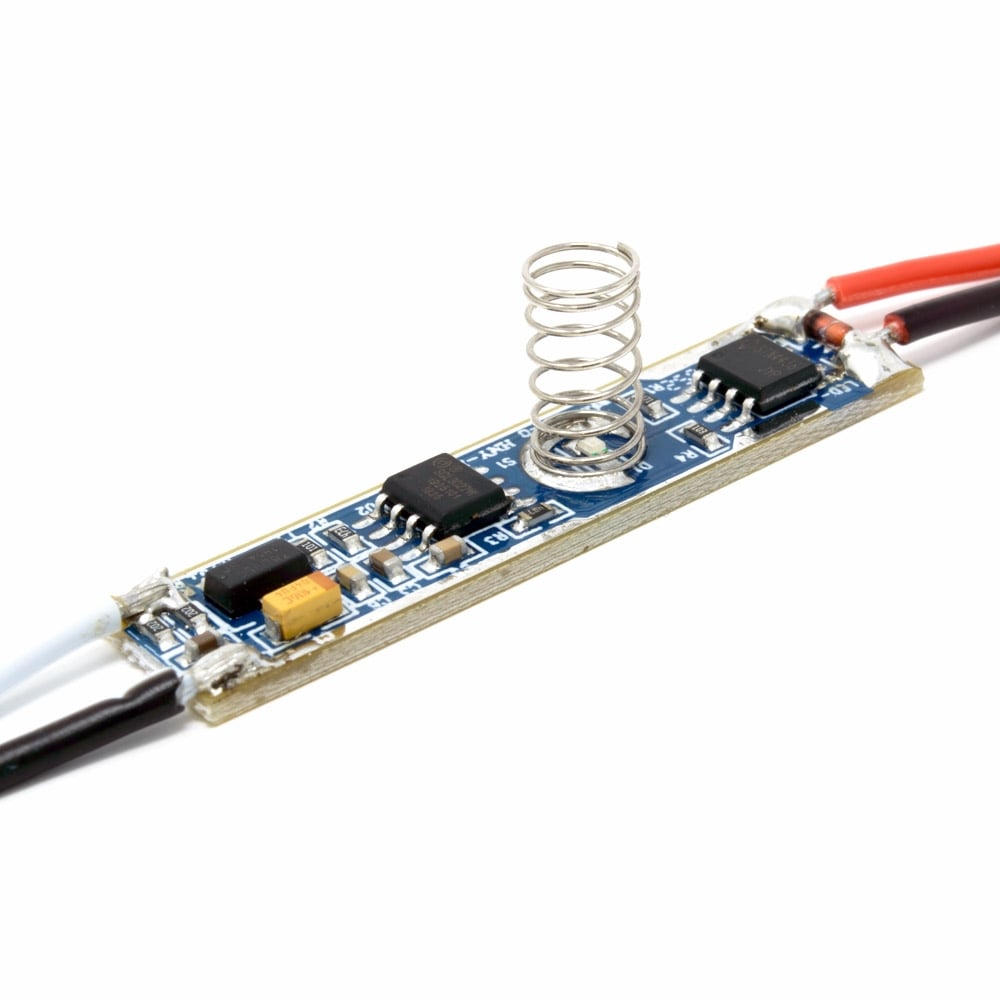

This touch sensor dimmer switch for LEDs is supplied on a circuit board with wire output and input connections. As there is no outer case, this touch dimmer should be mounted into an extrusion or LED profile. To prevent the cover from being damaged, it is recommended to use white hard paper to protect the spring on the touch switch.
To operate, it requires a 12v / 24v DC input. Then, touch the control disc once to toggle it on and off, and hold it to adjust the brightness smoothly.
Note: Pay attention to the polarity as reverse polarity will destroy the touch sensor.
For more information on this product, don't hesitate to get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.
Shop our range of PIR Sensors through our website or contact our technical sales team.
Quick Specs
- Guarantee Period5 Years
- IP RatingIP20 Non-Waterproof
- Input Voltage12V / 24V DC
What's in the box
- Single Channel Touch Sensitive Mini Dimmer
- Instruction manual
Technical Specification
- Product Code: SR2901S
- Product Packed Gift box
- Manufacturer LED Technologies
- LED Strip Brands Sunricher
- Product Type Dimmer
- IP Rating IP20 Non-Waterproof
- Guarantee Period 5 Years
- Wattage 500W
- Current 5A
- Input Voltage 12V / 24V DC
- Output Voltage 12V / 24V DC
- Size 42 x 10 x 10mm
- Dimmable: Yes
- Voltage Type Constant Voltage
- Relative Humidity 8% to 80%
- Operating Temp 0-40°C
Product Datasheets
- Datasheet - SR2901s Download
