Hippo Strip to Strip IP20 4pins 10mm RGB (Pack of 10)

Product Code: 100.820
  • Commercial Grade Connector
  • Strip to Strip
  • Allows for 10mm Strip
  • RGB Strip
  • Maximum 5 Amp total Load
Brushed Aluminium
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Sign In/Register to view Prices

Product Description

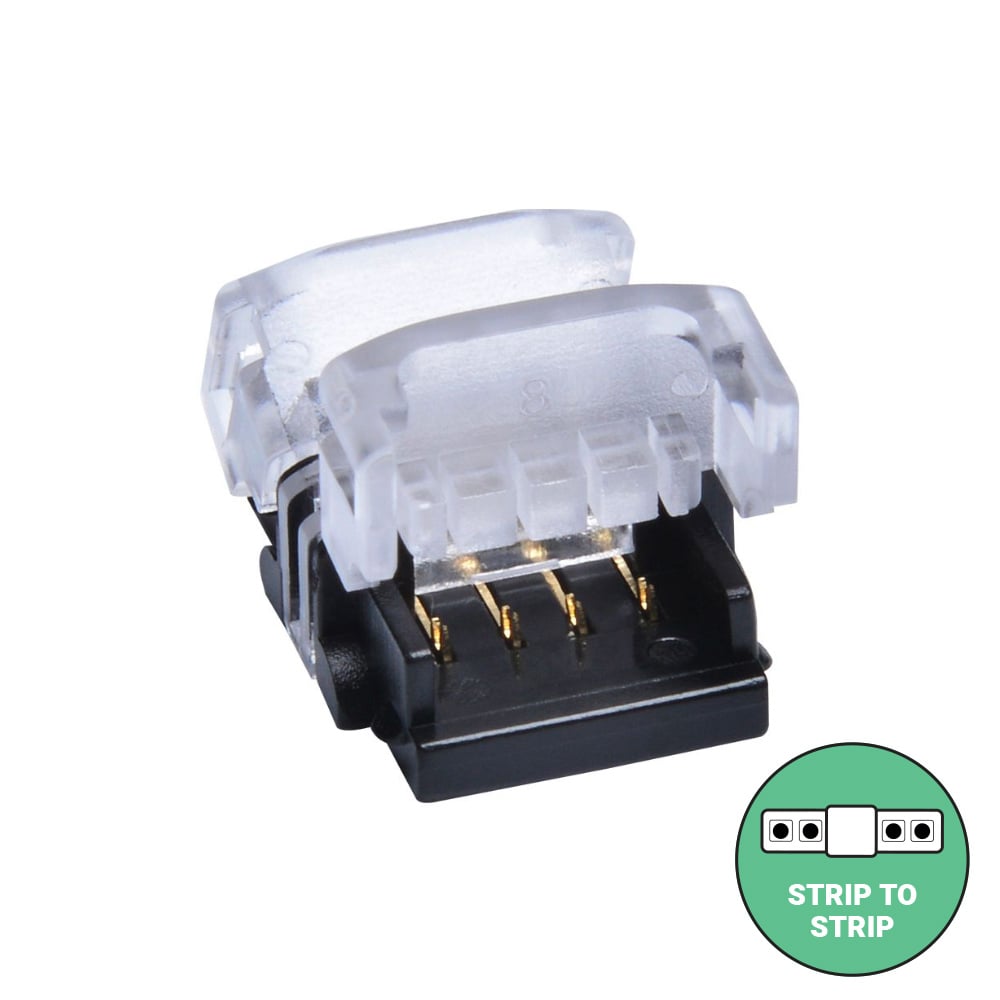

This 4 pin LED strip-to-strip connector is a simple and easy solution to connect LED strip lights together after cutting to size.

This 10mm Hippo 4 pin LED strip-to-strip connector features 4 pins to connect two pieces of our 10mm RGB strips together. This LED strip-to-strip connector is IP20 rated and intended to use for lighting in dry environments.

Please note – You cannot use these connectors on a strip with more than 60 LEDs per metre as there is not enough circuit board to make the connection.



Hippo 4 pin strip-to-strip LED Connectors help to speed up installation and are a new superior connector designed to replace the conventional snap-on connectors. Once the connectors are closed they cannot be reopened due to the firm and tight connection.

Note: These connectors make a simple and fast connection solution for temporary installations. For long term installations/applications however, we always recommend direct soldering.



For more information on this product, don't hesitate to get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Accessories through our website or contact our technical sales team.

Hippo Strip to Strip IP20 4pins 10mm RGB (Pack of 10)

Quick Specs

  • ColourBrushed Aluminium
  • Guarantee Period1 Year
  • IP RatingIP20 Non-Waterproof

Technical Specification

  • Product Code: 100.820
  • Product Packed Box
  • Manufacturer LED Technologies
  • Product Type Connectors
  • Colour Brushed Aluminium
  • IP Rating IP20 Non-Waterproof
  • Guarantee Period 1 Year
  • PCB Weight Not Applicable
  • Dimmable: Yes
  • LED Type Not Applicable
  • Average LED life Hrs 30,000
  • Power Factor > Not Applicable
  • Continuous Operation Not suitable for 24/7 continuous use
  • Type Strip to Strip
  • Workable Wire Gauge 22-20 AWG / 0.34-0.54 mm2
  • Strip Light Width 10mm
  • Strip Light Colour RGB
  • Pin Quantity 4 Pins
