FUT038Z MiBoxer ZigBee 3.0 RGBW LED Controller

Product Code: FUT038Z
  • ZigBee 3.0 Receiver
  • Compatible with Mi-Light / MiBoxer handsets and wall panels
  • Smartphone Compatible
  • 30m signal transmitting and synchronization between receivers
  • Quick and easy to pair with handsets and wall panels
5 Year Guarantee
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
IP Rating 20
ZigBee
View full product details and specification

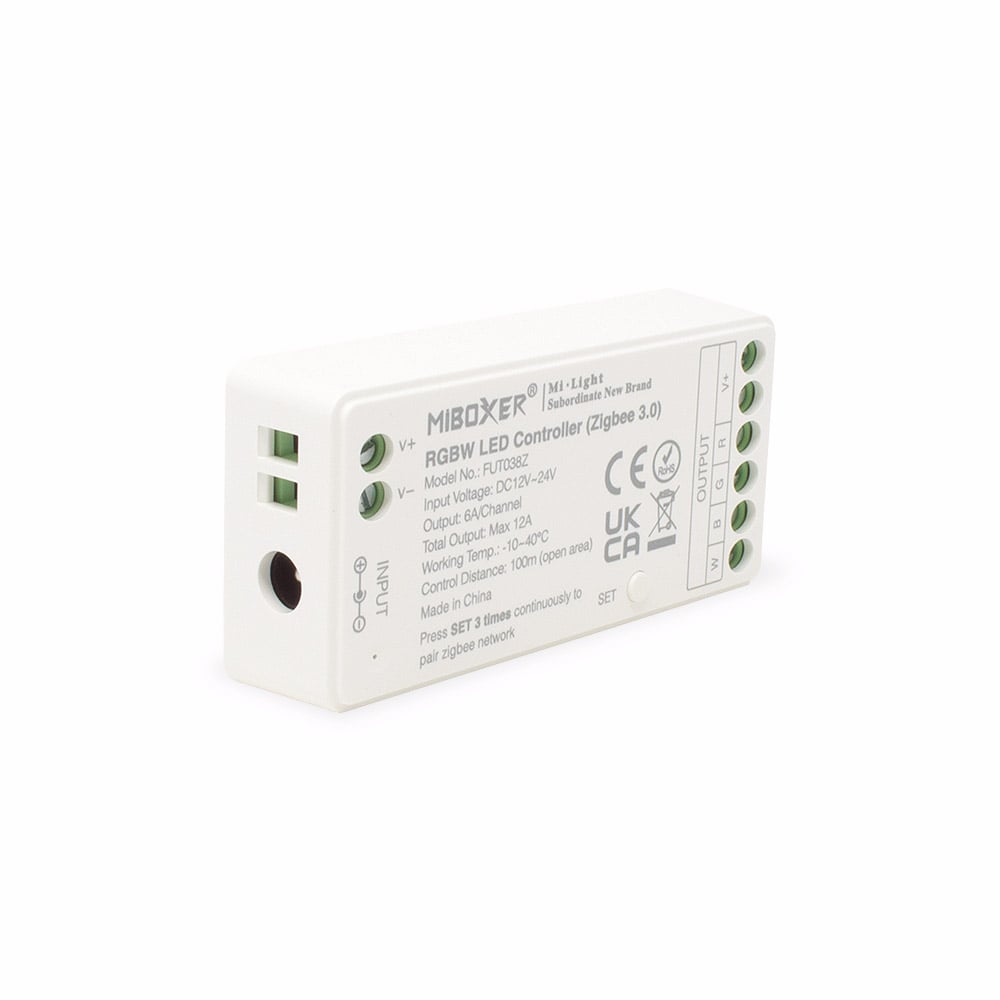

main product photo
Currently in Stock
Next day delivery available*
In stock
Speak with an Expert
Speak with an Expert

Product Description

This high-quality Wireless ZigBee 4 Channel remote receiver is available from our range of Mi-Light products. It can be paired to a ZigBee handset, wall panel or ZigBee hub to control low voltage (12V or 24V) RGBW LED lighting products with ease, such as RGBW LED tape.

This 4-channel receiver uses the latest ZigBee 3.0 protocols and is compatible with many third-party ZigBee Gateways. This allows LED lighting to be controlled through a smartphone using the free MiLight app as well as third-party voice control products. (Additional Mi-Light WiFi hub needed for these features).

Pairing with a ZigBee Hub will enable control of lighting from anywhere. Set routines that can operate LED lighting while you are away automatically.

It is possible to control RGBW LED Strip lights with this Mi-Light ZigBee RGBW Receiver. It can be paired with your 12V and 24V LED Strip Lights.

The maximum load on this LED receiver is 12A (6A / Channel) and requires an input voltage of 12V-24V DC (Direct Current).

For more information on this product and control options, please contact our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Controls through our website or contact our technical sales team.

FUT038Z MiBoxer ZIGBEE 3.0 RGBW LED Controller

Quick Specs

5 Year Guarantee
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
IP Rating 20
ZigBee

What's in the box?

  • ZigBee RGBW LED Controller
  • 3M Sticky Pad
  • Instruction manual
Product Code: FUT038Z
Product Packed Gift box
Manufacturer Mi-Light / MiBoxer
Product Type Controller / Receiver
IP Rating IP20 Non-Waterproof
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
5 Years
Input Voltage
This is the required amount of volts needed to power the product.
12V / 24V DC
Connectivity ZIGBEE protocols
Size L74.5mm x W36mm x H17mm
Dimmable: No
Wireless Range Up to 30 metres
Transmitting Power 6dBm
Operation Frequency ZIGBEE 3.0
Operating Temp -10 to 40ºC
Total Output Max12A
Output Max 6A/Channel
Datasheet - FUT038Z Download

We currently have no product FAQs, ask your question
