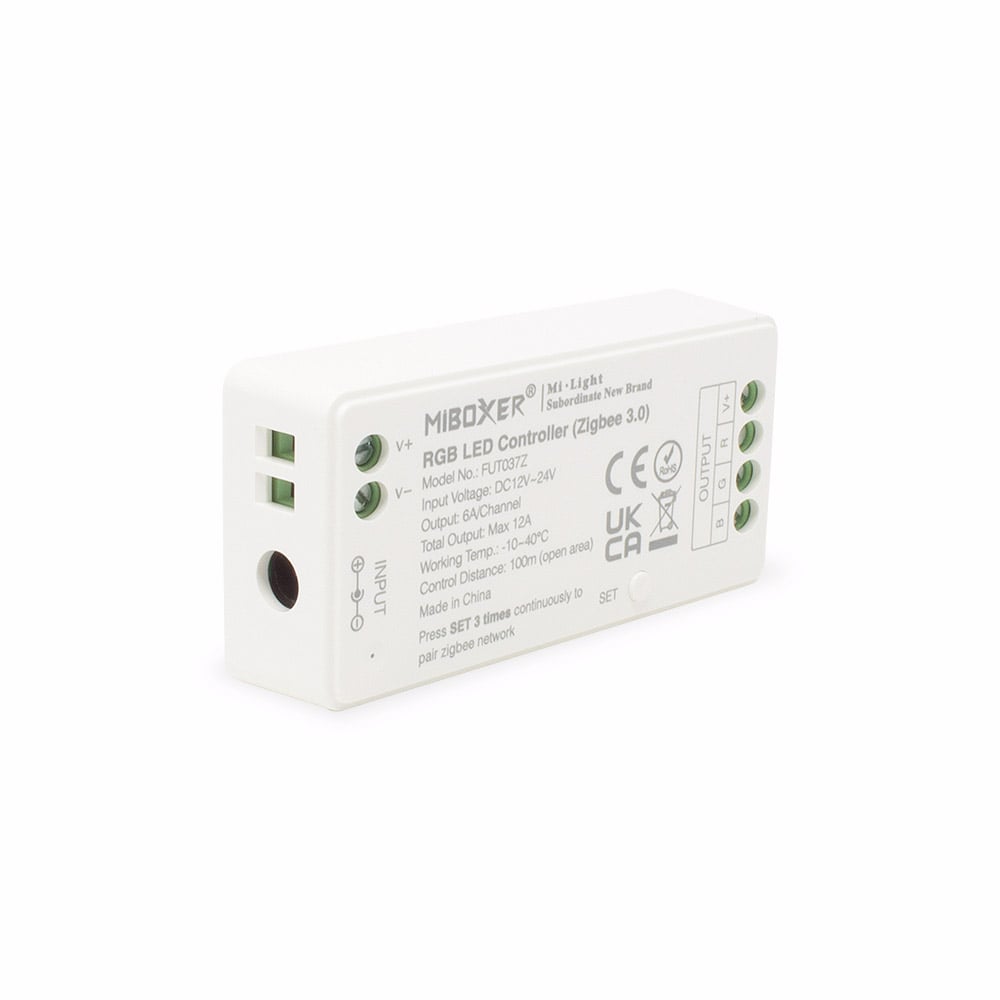

FUT037Z MiBoxer ZIGBEE 3.0 RGB LED Controller

Product Code: FUT037Z
  • RF & ZIGBEE remote control (2.4GHz)
  • For RGB, RGBW & RGB+CCT colour changing LED strips
  • Compatible with Mi-Light 2.4GHz RF handsets & wall panels
  • Compatible with ZIGBEE 3 gateways
  • Smartphone compatible (gateway required)
  • Smart speaker compatible (gateway required)
  • Mesh network wireless synchronisation between receivers
  • Adjustable PWM frequency from 250Hz to 16KHz
  • Quick and easy to pair with handsets & wall panels
12V / 24V DC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Sign In/Register to view Prices

Product Description

This high-quality Wireless Three-Channel ZIGBEE LED receiver is available from our range of Mi-Light products. It can be paired to a ZIGBEE remote control handset, wall panel or ZIGBEE Hub. Control low voltage (12V or 24V) RGB LED lighting products easily.



This RGB control receiver uses the latest ZIGBEE 3.0 protocols and is compatible with many third-party ZIGBEE Gateways. This allows LED lighting to be controlled through a smartphone using the free MiLight app as well as third-party voice control products. (Additional Mi-Light WiFi hub needed for these features).

Pairing with a ZIGBEE Hub will enable you to control your lighting from anywhere. You can set routines that can operate your lighting while you are away automatically.





Make sure your LED lighting is connected to a suitable power supply. Then simply wire your remote control LED light into your stylish LED RGB receiver. Enjoy full control over your LED lighting system.

It is possible to control your RGB LED Strip lights with this Mi-Light Receiver. This colour-changing LED receiver can be paired with your 12V and 24V LED Strip Lights to suit your mood.

The maximum load on this RGB LED receiver is 12A (6A / Channel) and requires an input voltage of 12V-24V DC (Direct Current).



For more information on this product and control options, please contact our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Controls through our website or contact our technical sales team.

FUT037Z MiBoxer ZIGBEE 3.0 RGB LED Controller

Quick Specs

  • Guarantee Period5 Years
  • IP RatingIP20 Non-Waterproof
  • Input Voltage12V / 24V DC

What's in the box

  • Dual White LED Controller
  • 3M Sticky Pad
  • Instruction manual

Technical Specification

  • Product Code: FUT037Z
  • Product Packed Gift box
  • Manufacturer Mi-Light / MiBoxer
  • LED Strip Brands Mi-Light MiBoxer
  • Product Type Controller / Receiver
  • IP Rating IP20 Non-Waterproof
  • Guarantee Period 5 Years
  • Input Voltage 12V / 24V DC
  • Connectivity ZIGBEE protocols
  • Size L74.5mm x W36mm x H17mm
  • Dimmable: No
  • Wireless Range Up to 30 metres
  • Transmitting Power 6dBm
  • Operation Frequency ZIGBEE 3.0
  • Operating Temp -10 to 40ºC
  • Total Output Max12A
  • Output Max 6A/Channel

Product Datasheets

  • pdf Datasheet - FUT037Z Download
