Domed Plaster In LED Strip Profile 1 MTR

Product Code: 101.176
  • Suitable for strips up to W23mm
  • Durable anodised aluminium
  • Acts as a heat sink, aids cooling
  • Reduces glare and softens light output
  • Sturdy housing protects LED strip
  • Clip in Diffuser
  • Easy fit end caps and diffuser
  • Easy installation
CRI 80
IP Rating 20
1 mtr
View full product details and specification

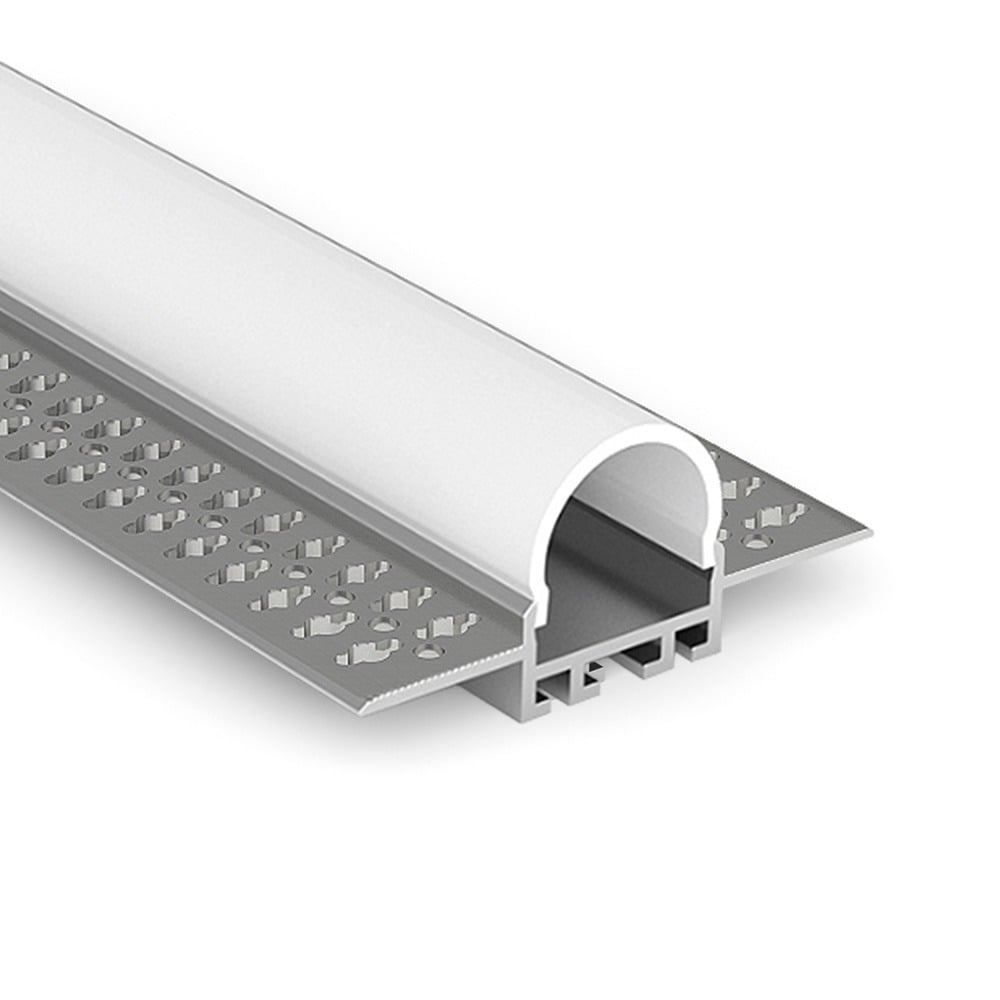

main product photo
Currently in Stock
Next day delivery available*
In stock
Speak with an Expert

Due to handling & shipping rates our 1 & 2 mtr profiles now have a shipping surcharge in addition to our standard next day service. We also have minimum quantity order on 2mtr lengths.

If you order online we will contact you to confirm your order alternatively please contact our sales office on 01260 540014 to place your order.

Speak with an Expert

Product Description

This LED strip plaster-in profile is perfect for housing LED strip lights. Designed to be installed into the ceiling or plastered wall for a secure and flush lighting installation, featuring a domed diffuser.

The total width of this plaster in aluminium profile is 65.4mm and a total depth of 28mm. The internal tray is able to house LED tape that is no more than 23mm in width. This is a 1m length, that can be easily cut into bespoke sizes to fit into any space perfectly.



Our plaster-in LED profiles are made from high-quality anodised aluminium with a clip-in diffuser. This offers a huge amount of benefits including acting as a heat sink to reduce heat build-up. Read our  "Why do I need LED profile" blog for 7 reasons why we recommend installing LED profiles.



Plaster-in LED extrusions are ideal for achieving a neat and professional installation as they improve the overall look of LED lighting. This is perfect for high-end installations in both commercial and domestic applications.



Installation

This extrusion for LED strips is fixed into place by plastering over the corrugated wings.

To mount the strips onto the plaster in extrusion, simply peel the protective paper off the lights to reveal the adhesive backing. Then stick the strip lights to the interval tray, and clip-in the diffuser.



Note: When installing LED strips into a profile, check that the back of the strip remains insulated from the profile. The profile is aluminium, meaning it will conduct the low-voltage power going through the tape, causing it to stop working.



For more information on this product, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Profiles through our website or contact our technical sales team.

Quick Specs

CRI 80
IP Rating 20
1 mtr

What's in the box?

  • 1 x Aluminium Base
  • 1 x Diffuser
  • Fixing Clips
  • End Caps
Product Code: 101.176
Product Packed Tube
Manufacturer LED Technologies
Product Type Extrusion
Colour Brushed Aluminium
IP Rating IP20 Non-Waterproof
Metres 1 MTR
PCB Weight Not Applicable
Size See Schematic Diagram
CRI Rating (greater than) CRI >80
Dimmable: No
LED Type Not Applicable
Average LED life Hrs 30,000
Power Factor > Not Applicable
Continuous Operation Not suitable for 24/7 continuous use
Datasheet - 101.176 Download
