Dome Top Diffuser LED Profile 2 MTR

Product Code: 100.973
  • Suitable for products up to W16mm
  • Durable anodised aluminium
  • Acts as a heat sink, aids cooling
  • Reduces glare and softens light output
  • Sturdy housing protects LED strip
  • Clip In Diffuser
  • Easy fit end caps and diffuser
  • Under cabinet & room edge installations
Brushed Aluminium
IP20 No
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Sign In/Register to view Prices

Product Description

This high-quality aluminium profile with a rounded diffuser is perfect for housing LED strip lights for a professional and attractive lighting design.

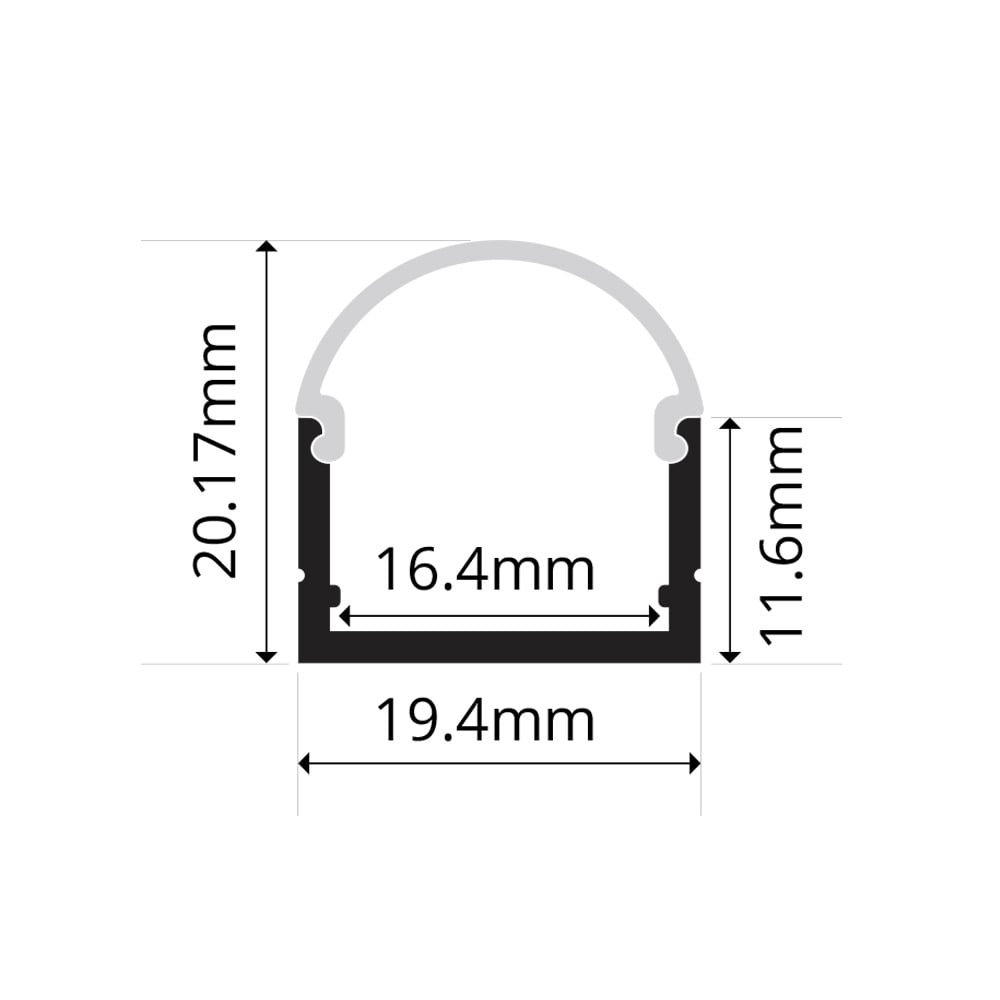

It has a total depth of 20.17mm, with an interval width of 16.4mm. Therefore, this LED dome profile can house LED tapes that are no more than 16mm in width. Available in 2m lengths, this can be cut into bespoke lengths to fit perfectly into a unique space.



Our founded profile is made from high-quality anodised aluminium with a clip-in LED dome diffuser. This offers a huge amount of benefits including acting as a heat sink to reduce heat build-up. Read our  "Why do I need LED profile" blog for 7 reasons why we recommend installing LED profiles.



Our rounded profile is a vital element for achieving a neat and skillfully installation. Perfect for high-end projects in both commercial and domestic establishments.



Installation

Aluminium dome profiles can be mounted using the fixing clips provided, or screwing directly through the back with a countersunk-headed screw.

 To mount the strips onto the profile, simply peel the protective paper off the lights to reveal the adhesive backing. You can then attach the strip to the profile.

Note: When installing LED strips into a profile, check that the back of the strip remains insulated from the profile. The profile is aluminium, meaning it will conduct the low-voltage power going through the tape, causing it to stop working.



For more information on this product, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Profiles through our website or contact our technical sales team.

Quick Specs

  • CRI Rating (greater than)CRI >80
  • ColourBrushed Aluminium
  • IP RatingIP20 Non-Waterproof
  • Colour Temperature VariationIP20 No

What's in the box

  • 1 x Aluminium Base
  • 1 x Diffuser
  • End Caps
  • Fixing Clips

Technical Specification

  • Product Code: 100.973
  • Product Packed Tube
  • Manufacturer LED Technologies
  • Product Type Extrusion
  • Colour Brushed Aluminium
  • IP Rating IP20 Non-Waterproof
  • Metres 2 MTR
  • PCB Weight Not Applicable
  • Size See Schematic Diagram
  • CRI Rating (greater than) CRI >80
  • Dimmable: No
  • LED Type Not Applicable
  • Average LED life Hrs 30,000
  • Power Factor > Not Applicable
  • Wireless Range Up to 30 metres
  • Continuous Operation Not suitable for 24/7 continuous use

Product Datasheets

  • pdf Datasheet - 100.973 Download
