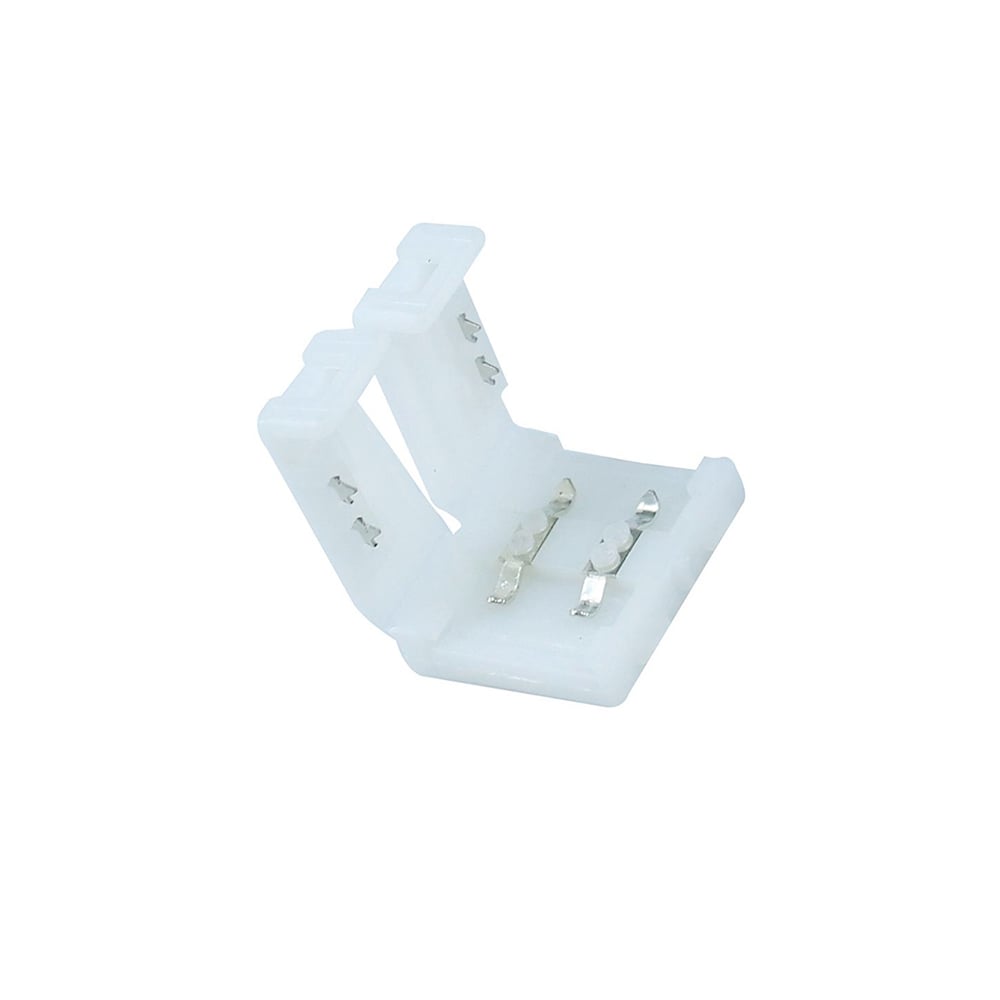

10mm Solderless Double Connector

Product Code: 100.676
  • 10mm double solderless connector
  • Join lengths of tape
  • Simple alternative to soldering
  • Specially for our IP20 Strips
  • Quick and easy to use
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

Our LEDTech range of solderless connectors is designed to make joining our uncoated LED tape products simple without the need to make soldered joints. This high-quality connector for LED strip lights key feature is a simple clip fitting for an easy wire to wire connection.

NOTE: Ensure that the LED tape is cut only at the clearly marked cutting points. Please also ensure that the copper or soldered tabs are showing before continuing with the wire joining.

Important: The copper tabs are protected with a layer of clear lacquer, before attaching the connector, carefully scrape away the lacquer to ensure a good connection.

Our range of strip to strip connectors have a compact design and are easy to implement into any indoor LED light installation. To use this solderless cable connector simply:

  1. Open the connector covers and insert the tapes to be joined into the slot on each side of the connector
  2. Ensure that the copper or soldered tabs are lined up with the tabs on the connector.
  3. Close the two connector covers making sure that they are firmly clipped into place and the locking tabs are latched

There are a couple of things to remember when using an LED strip light solderless connector. It is important that you do not daisy chain more than 5m lengths of LED flexible tape in one long line. Please ensure that you follow this rule when joining tape together otherwise the tape could overheat causing it to fail.

Our range of solderless tape connectors has a rating of IP20 so they are to be used in a dry environment when there is no exposure to moisture.

Our LED experts at LED Technologies can help you with your LED products and installations. For more information, please contact us by calling our technical sales team or sending an email or via live chat.

Quick Specs

What's in the box?

10mm Double Solderless Connector
Product Code: 100.676
Product Packed Box
Manufacturer LED Technologies
Product Type Connectors
Colour White
IP Rating IP20 Non-Waterproof
Size 10mm
Dimmable: No
Average LED life Hrs 30,000
Continuous Operation Not suitable for 24/7 continuous use

We currently have no product FAQs, ask your question
