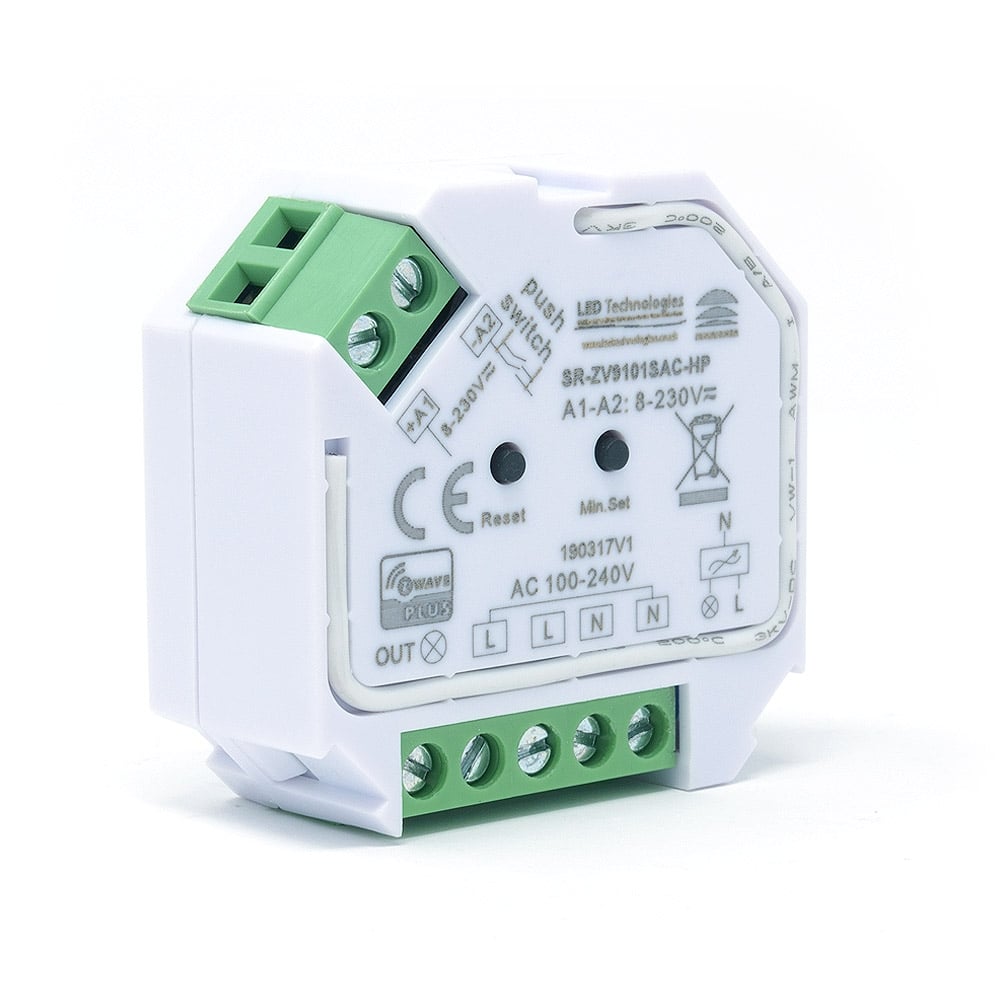

Sunricher Z-Wave In-Wall Mountable AC Dimmer

Product Code: SRZV9101SACHP
  • Z-Wave AC in-wall mountable dimmer
  • Works with all Z-Wave devices
  • Works with resistive & capacitive loads
  • Easy to connect to the Z-Wave network
  • Security enabled Z-Wave plus product
  • Extends the Z-Wave network
  • Input & output voltage 100v - 240v AC
  • Supports loads up to 1.5A
IP Rating
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

This In-wall AC Dimmer is a Z-Wave device that can be controlled by other Z-Wave devices to switch On or Off a connected light.  The In-wall switch can be included and operated in a Z-Wave network by any other Z-Wave certified device.  All non-battery operated nodes within the network will act as repeaters to increase the reliability of the Z-Wave network.

When incorporated into your Z-Wave system this wall panel is perfect for switching and dimming your mains powered LED lighting products.  The dimmer is also compatible with incandescent mains powered Halogen lights, Low Voltage Halogen lights with electronic transformers and low voltage LED lighting with transformers.

As a high quality product it is perfect for both commercial and domestic use.

Quick Specs

IP Rating

What's in the box?

  • Z-Wave In-Wall Mountable AC Dimmer
  • Instruction manual
Product Code: SRZV9101SACHP
Product Packed Gift box
Manufacturer LED Technologies
Product Type Controller / Receiver
IP Rating IP20 Non-Waterproof
Guarantee Period 5 Years
Current 1.5A Max
Input Voltage
This is the required amount of volts needed to power the product.
100v - 240v AC
Output Voltage 100v - 240v AC
Connectivity Z Wave protocols
Size: 45.5 x 45 x 20.3mm
Dimmable: Yes
Wireless Range Up to 40 metres
Voltage Type Mains Voltage
Operating Temp 0-40°C
Operation Frequency 868.42 MHz
Relative Humidity 8% to 80%
SDK 6.71.03
Routing Yes
Explorer Frame Support Yes
Datasheet - SR-ZV9101SAC-HP Download
