NeoLinear Pixel Tubes

01 / 360 degree light

A sculptural LED system that turns programmed colour into one continuous, all-angle line of light.

02 / addressable colour

Choose a 1m tube in white or black, with either SPI pixel movement or RGB Cool White whole-tube colour.

Learn More View All Products

All-Angle Output

Continuous 360° illumination.

Pixel Movement

Chases, gradients and waves.

Dot-Free Diffusion

One clean line of colour.

Structural System

Connect, stand and suspend.

Two Control Options

SPI pixel or RGB Cool White.

Professional Build

24V models and warranty support.

Explore the NeoLinear Pixel Tube

01 / Light OutputContinuous 360° Illumination

A tough diffused body creates one clean, dot-free line of colour from every viewing angle.

02 / Pixel MovementSPI Addressable Colour

Create flowing chases, gradients and waves along the 1m SPI Pixel Tube.

03 / Tube Format1m Tube. Two Finishes.

Choose the standard 1m tube in a clean white or smart black finish.

04 / ProtectionIP65-Rated Pixel Models

Designed for professional installations where the lighting system needs dependable protection.

05 / Electrical24V Professional Platform

Both 1m formats are designed for dependable professional lighting installations.

06 / SignalUCS2904 SPI Driver

Pair the Pixel Tubes with compatible SPI control for responsive, addressable colour effects.

07 / ConstructionFast-Connect Attachment System

Stand, suspend, clip or connect tubes into custom geometric structures using the matching ecosystem.

08 / RGB Cool White3m Cable. Unified Colour.

RGB Cool White tubes wire to compatible RGB controllers, so the entire tube changes together.

NeoLinear colour-changing LED tubes suspended above an outdoor live event
Real-world NeoLinear

Colour at Live-Event Scale

Build expressive layers of suspended light that remain visible across large stages, venues and audiences.

Live colour demonstration

See the Colour in Motion

The animated tube demonstrates how a continuous diffuser turns programmed colour data into smooth, flowing light with no visible breaks along its surface.

01 / Control input

SPI Pixel Control

Connect the Pixel Tube to a compatible SPI controller for addressable colour movement.

02 / Light output

Diffused Pixel Movement

SPI data drives chases, waves and gradients while the 360° body blends them into one clean line.

Two control types, four tube models

Pair the Light with the Finish

Every 1m tube is available in white and black. Choose SPI Pixel for moving effects or RGB Cool White for straightforward whole-tube colour control.

SPI Pixel / 1 metre

SPI Pixel Tubes

500.005

1m SPI Pixel Tube — White

  • SPI
  • 1m
  • White
500.006

1m SPI Pixel Tube — Black

  • SPI
  • 1m
  • Black
Whole-tube colour / 1 metre

RGB Cool White 6000K Tubes

500.009

1m RGB Cool White Tube — White

  • RGB
  • 6000K
  • White
500.010

1m RGB Cool White Tube — Black

  • RGB
  • 6000K
  • Black
View All Tubes

Tube comparison matrix

Compare Every Tube Format

Review the four standard 1m NeoLinear tubes by control type, light engine and finish in one clear technical overview.

ModelCodeLengthLight engineControlFinish
SPI Pixel Tube500.0051mAddressable pixel colourSPI pixelWhite
SPI Pixel Tube500.0061mAddressable pixel colourSPI pixelBlack
RGB Cool White Tube500.0091mRGB + Cool White 6000KStandard RGB controlWhite
RGB Cool White Tube500.0101mRGB + Cool White 6000KStandard RGB controlBlack

Control compatibility

Specify the Control Route

NeoLinear is offered in two familiar formats. Select SPI when the installation needs addressable pixel effects; select RGB Cool White when the full tube should change colour together.

SPI Pixel

Addressable Effects

A basic SPI installation is a Pixel Tube, compatible SPI controller, appropriate connection cable and signal amplifier after 13 tubes where required.

Recommended: SPIB5 MiBoxer SPI+DMX Controller Sole UK distributor. Use in SPI mode for NeoLinear Pixel Tubes; 80+ programmes, RF/Bluetooth, Tuya app programming, music mode and C9/B9 control pairing.
RGB Cool White

Whole-Tube Colour

These tubes have a 3m colour-coded cable at one end. Wire it directly into a standard compatible RGB controller, just as you would an RGB strip.

Every tube changes together. Select an individual channel when a single colour output is required, or use all channels for RGB Cool White scenes.

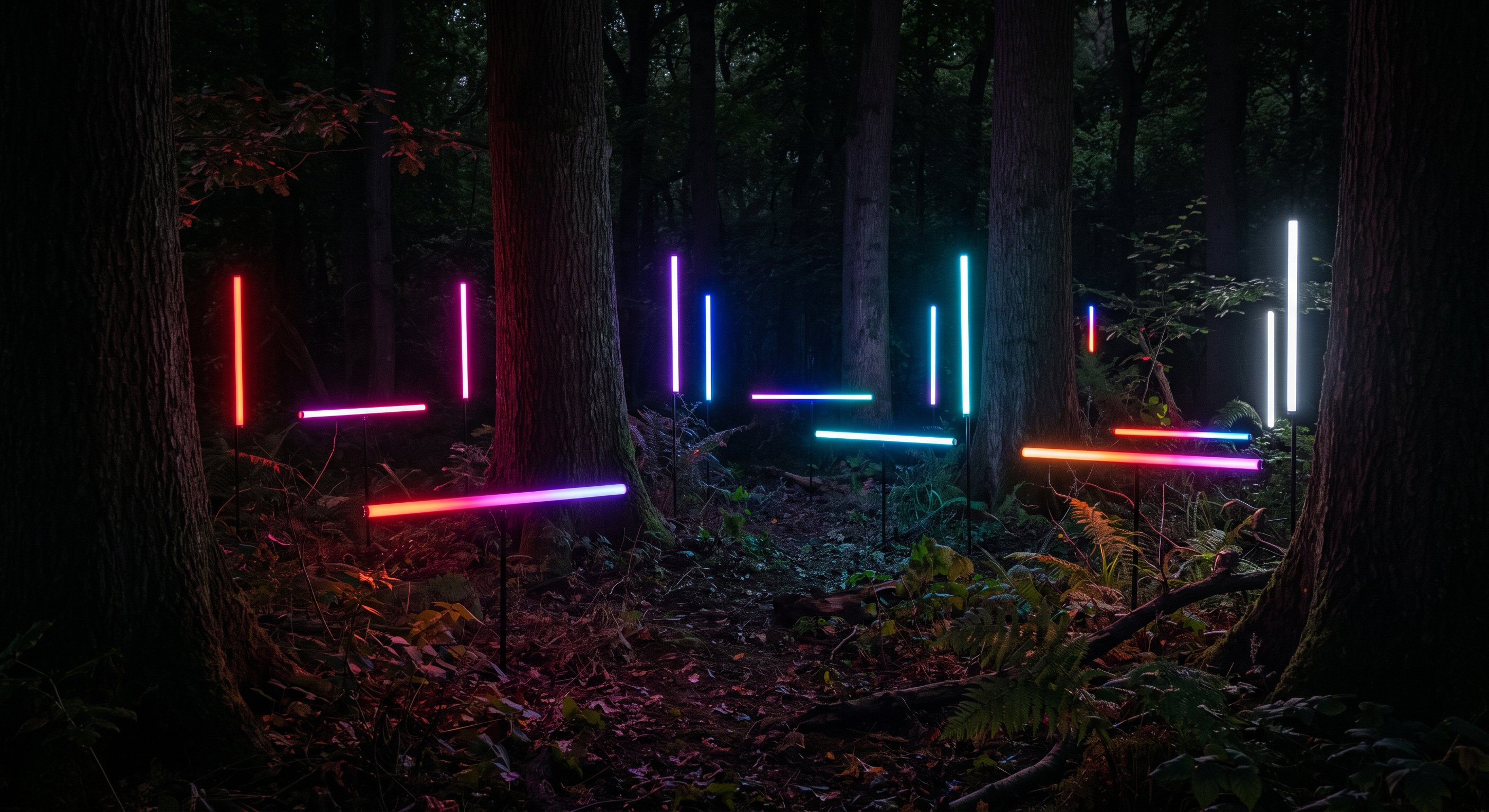

NeoLinear LED tubes positioned vertically and horizontally throughout a woodland
Beyond the venue

Light Within the Landscape

Combine vertical and horizontal tubes to draw precise colour through natural, outdoor and site-specific environments.

Mounting options

Mount NeoLinear Your Way

Choose the fixing method that best suits the space, from discreet surface mounting and freestanding displays to suspended features and custom geometric structures.

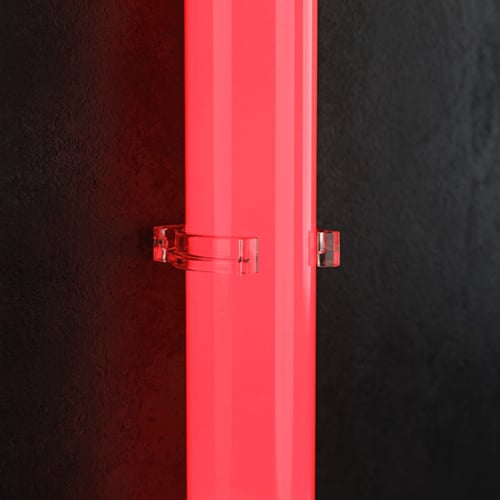

Transparent fixing clips securing a NeoLinear LED tube to a surface
01 / Surface Fixed

Transparent Fixing Clip

Secure tubes discreetly to walls, ceilings or display panels. Multiple clips keep the light line straight while minimising visible hardware.

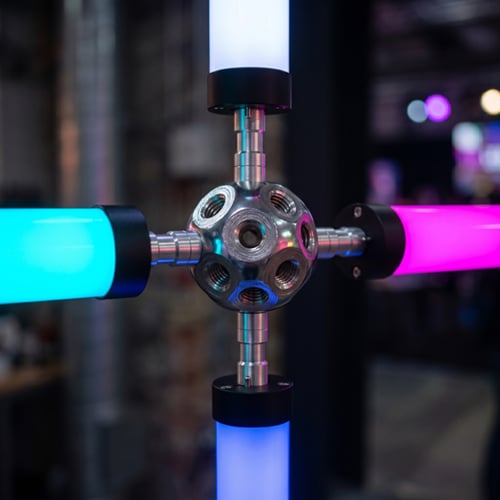

NeoLinear LED tubes joined to a multi-port mounting node ball
02 / Structural

Connecting Node Ball

Join multiple tubes at different angles to create illuminated grids, branching forms and bespoke geometric structures.

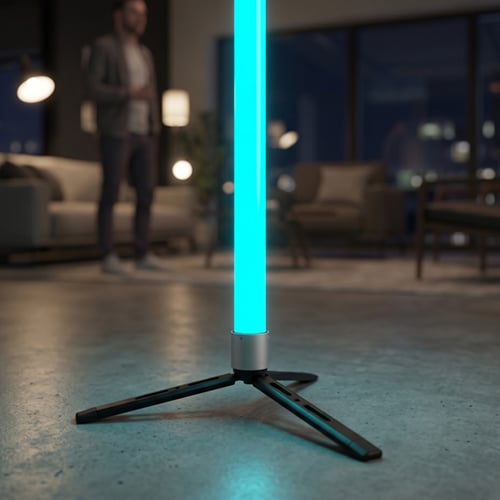

NeoLinear LED tube installed vertically on a tripod floor stand
03 / Floor Standing

Tripod Floor Stand

Create a freestanding upright tube for events, entrances and displays without fixing into the surrounding architecture.

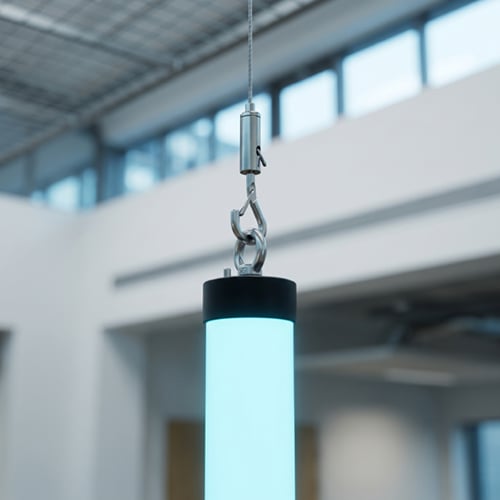

NeoLinear LED tube suspended vertically using the hanging mounting system
04 / Suspended

Hanging System

Suspend tubes from ceilings or truss to build light curtains, overhead arrays and immersive displays with a clear floor below.

View Mounting Accessories

The complete ecosystem

Control, Connect and Construct

Use the controller, cabling, signal support and mounting hardware to turn individual tubes into a complete professional lighting system.

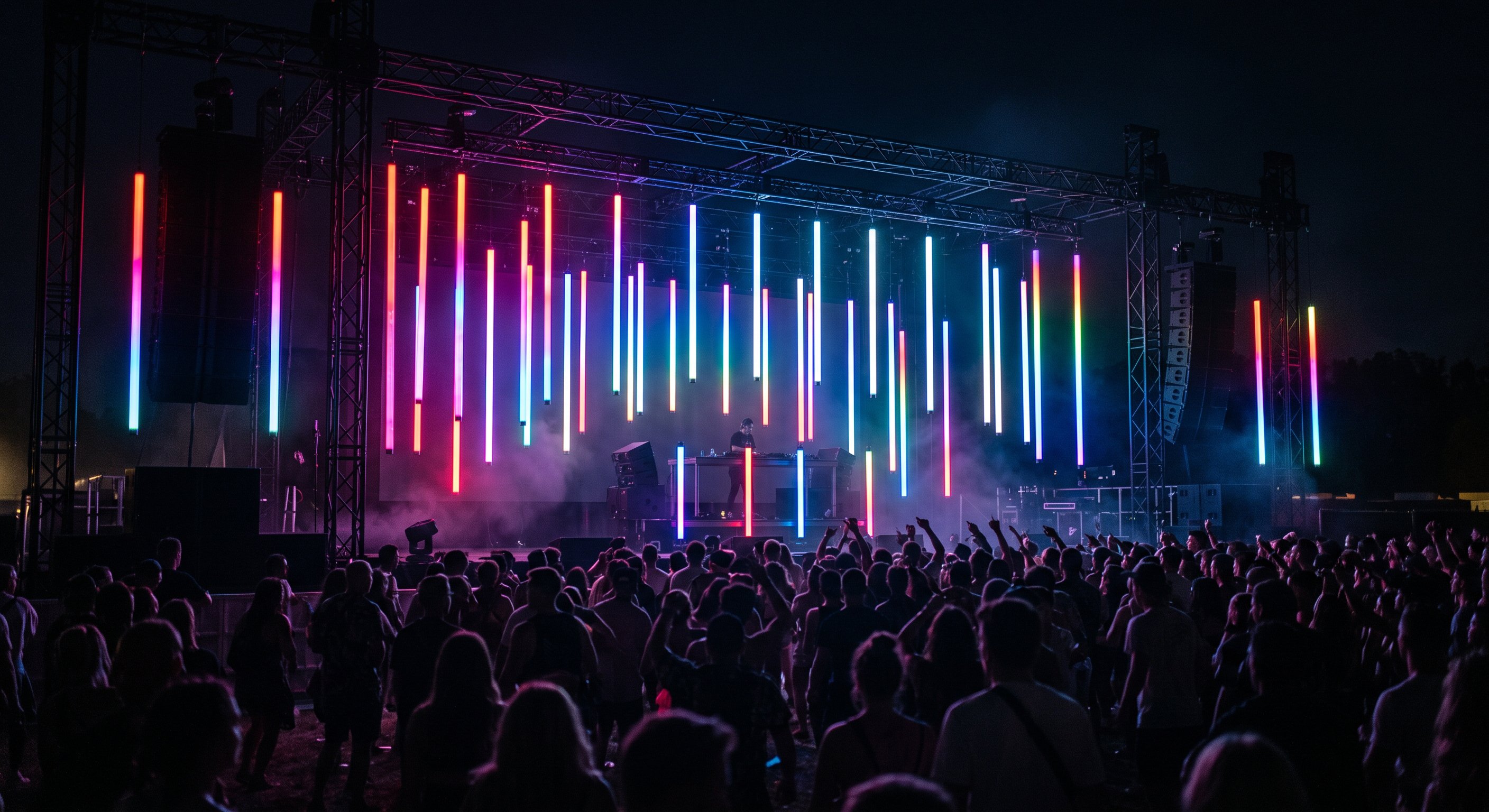

NeoLinear tubes used as a placeholder image for control and signal products
01 / Control

Control & Signal

Start the SPI system with the controller, then support longer signal runs where required.

View Control & Signal

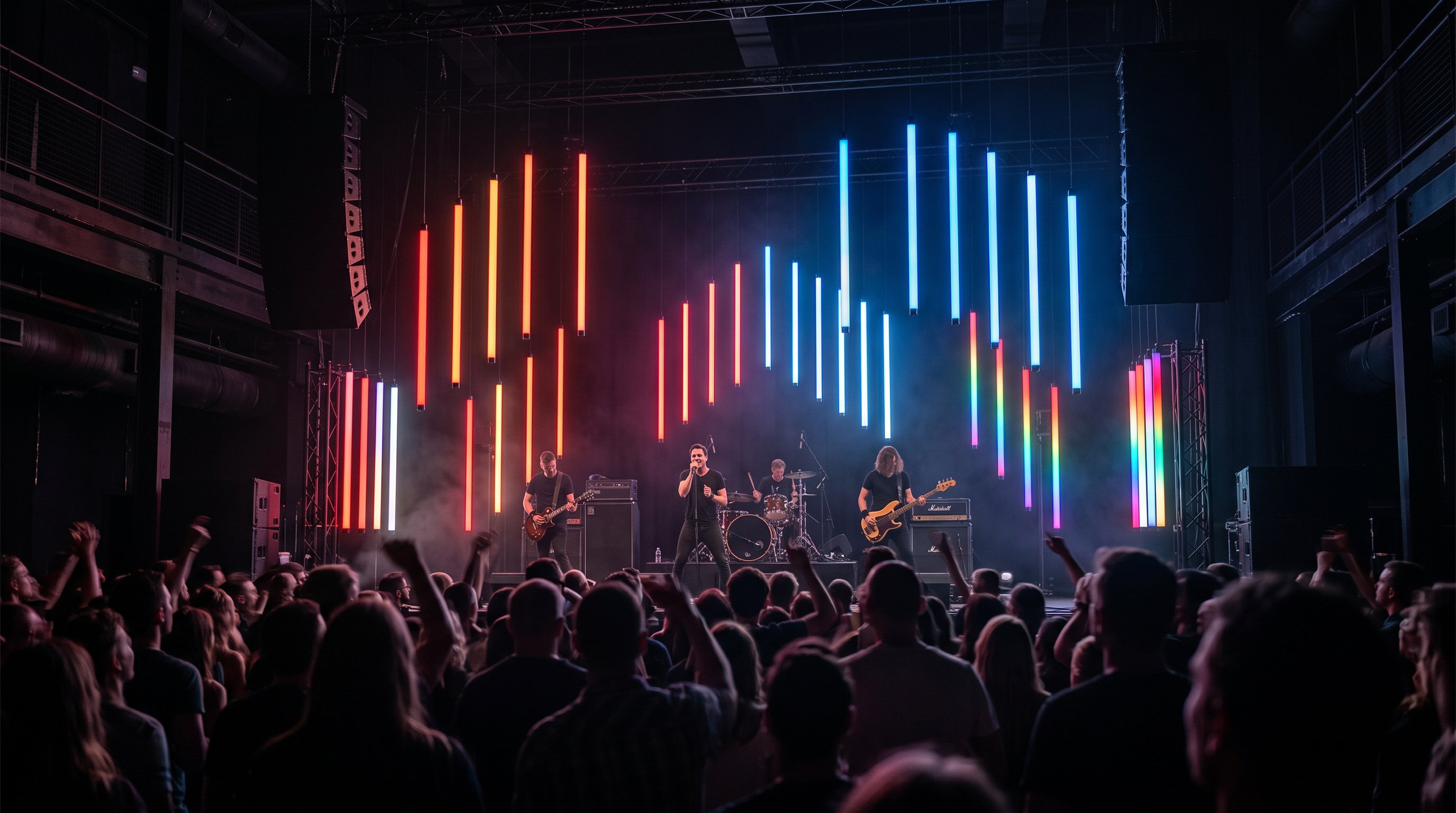

NeoLinear tubes used as a placeholder image for cables and branches
02 / Distribution

Cables & Branches

Extend, turn and distribute the SPI connection with the correct lead or T-cable for the layout.

View Cables & Branches

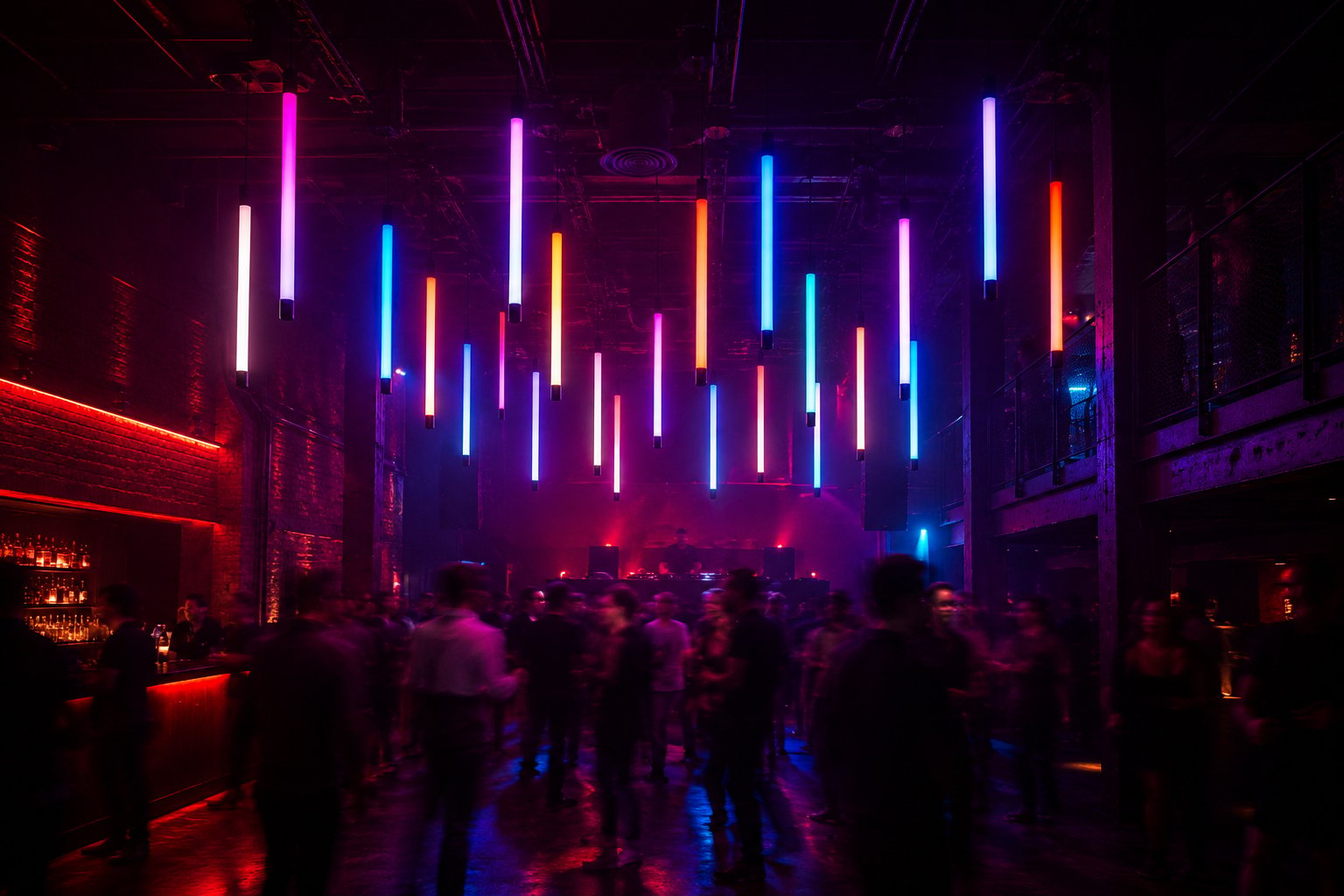

NeoLinear tubes used as a placeholder image for mounting and suspension accessories
03 / Mount

Mounting & Suspension

Choose how the tube sits in the space: floor-standing, clipped in place or suspended from above.

View Mounting Accessories

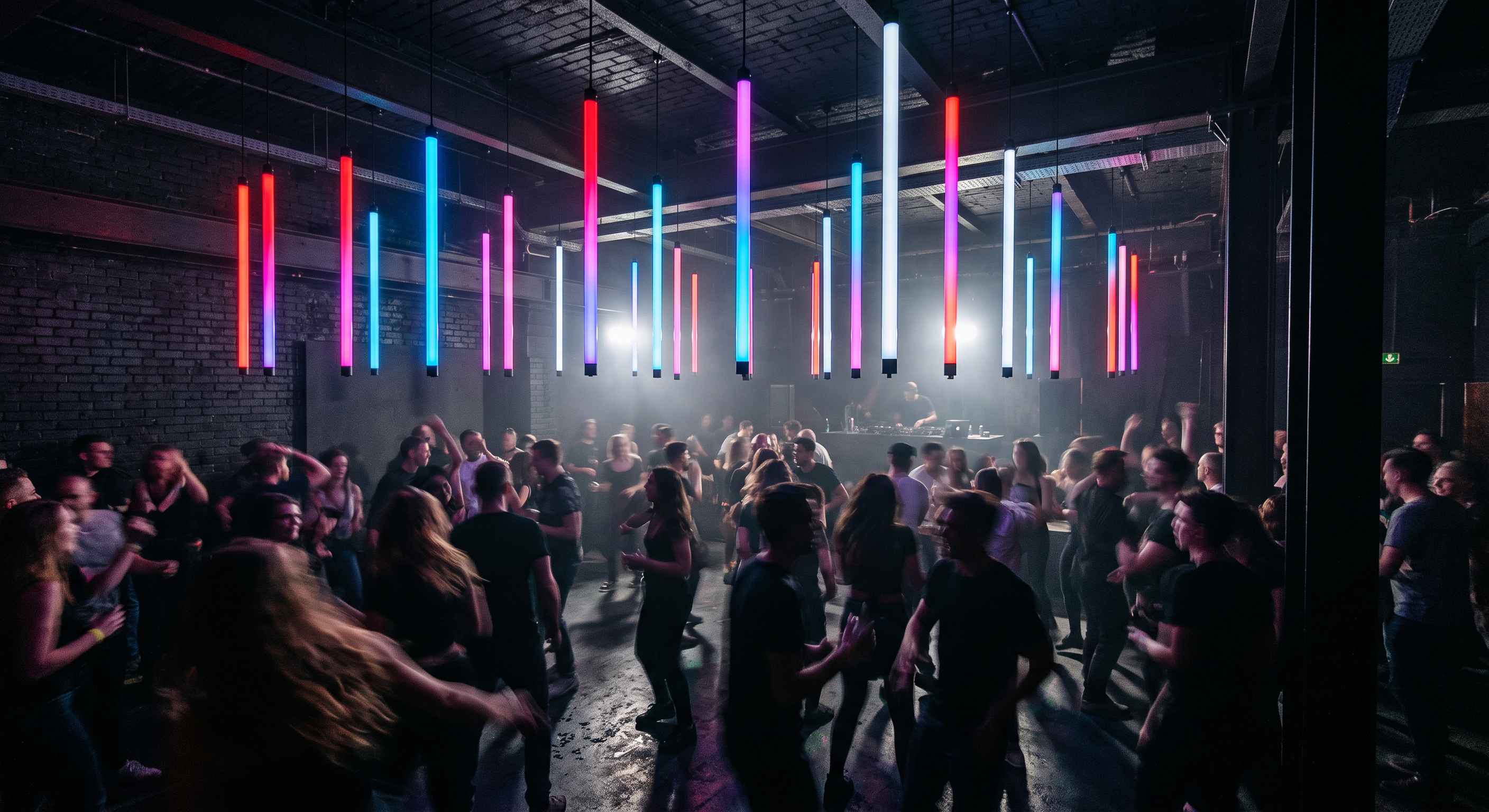

NeoLinear tubes used as a placeholder image for structural connectors
04 / Construct

Connectors & Geometry

Build custom tube arrangements with screw connectors and multi-port nodes in silver or black.

View Structural Connectors

NeoLinear in context

Built for Expressive Spaces

From live production and nightlife to immersive art, rooftops and outdoor installations, NeoLinear tubes turn programmed colour into part of the environment.

Colourful NeoLinear LED tubes suspended throughout a nightclub
01 / Nightlife

Clubs and Venues

Transform the ceiling into an immersive field of light.

NeoLinear LED tubes illuminating a busy dance event
02 / Events

Dance and Hospitality

Give busy social environments a distinctive visual identity.

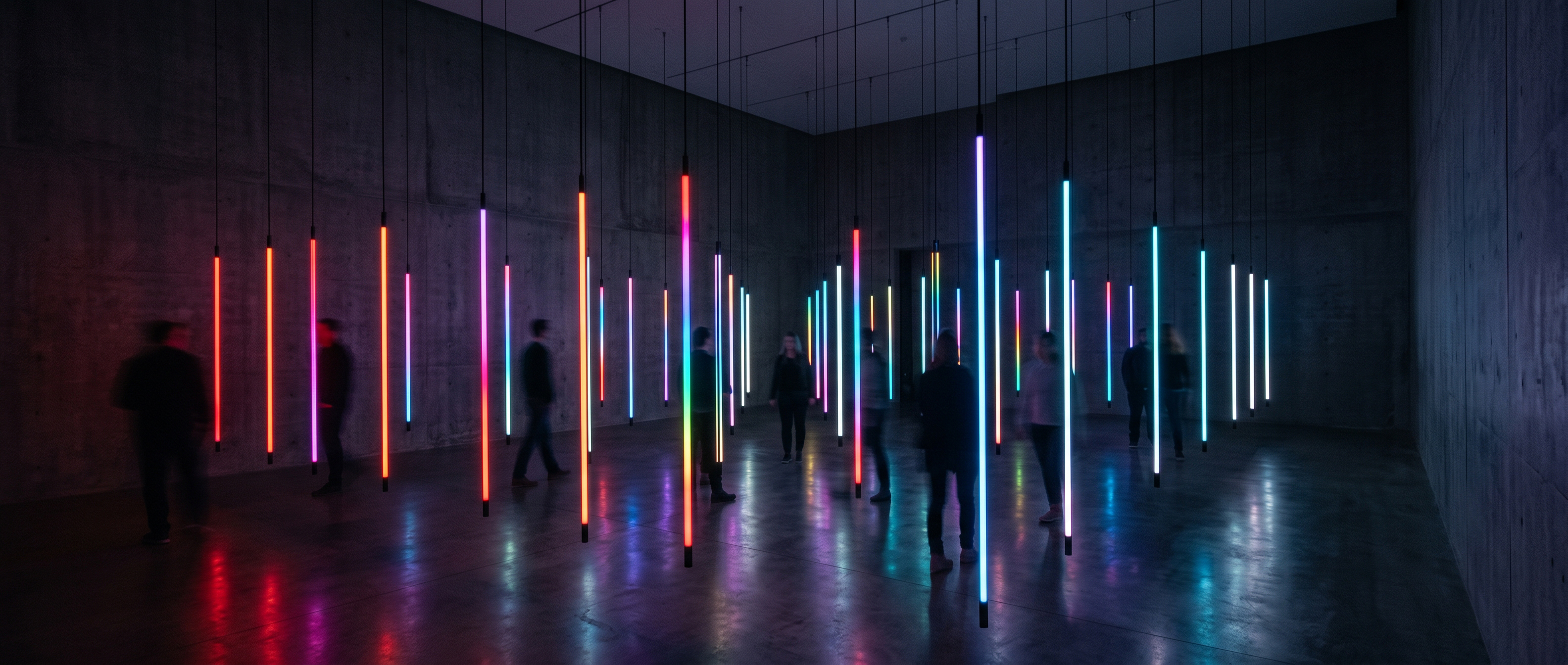

Visitors walking through an immersive NeoLinear LED tube installation
03 / Immersive art

Walk-Through Installations

Use light as a spatial material visitors can move through.

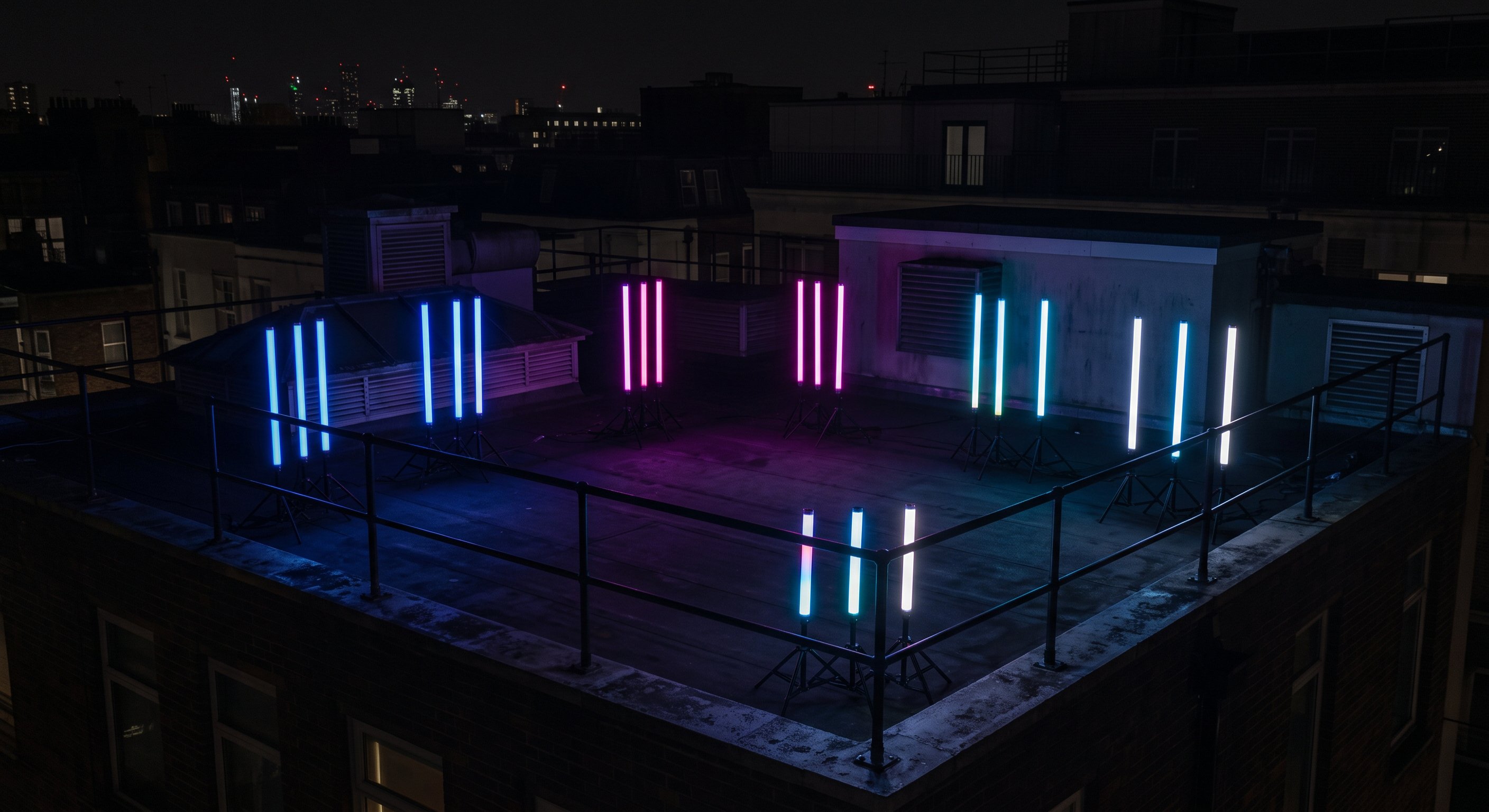

NeoLinear LED tubes arranged across a rooftop at night
04 / Rooftops

Open-Air Experiences

Create modular colour installations above the city.

Technical reference

Specification and Project Detail

Key dimensions, electrical information, compatibility guidance and common project questions for specifying the NeoLinear range.

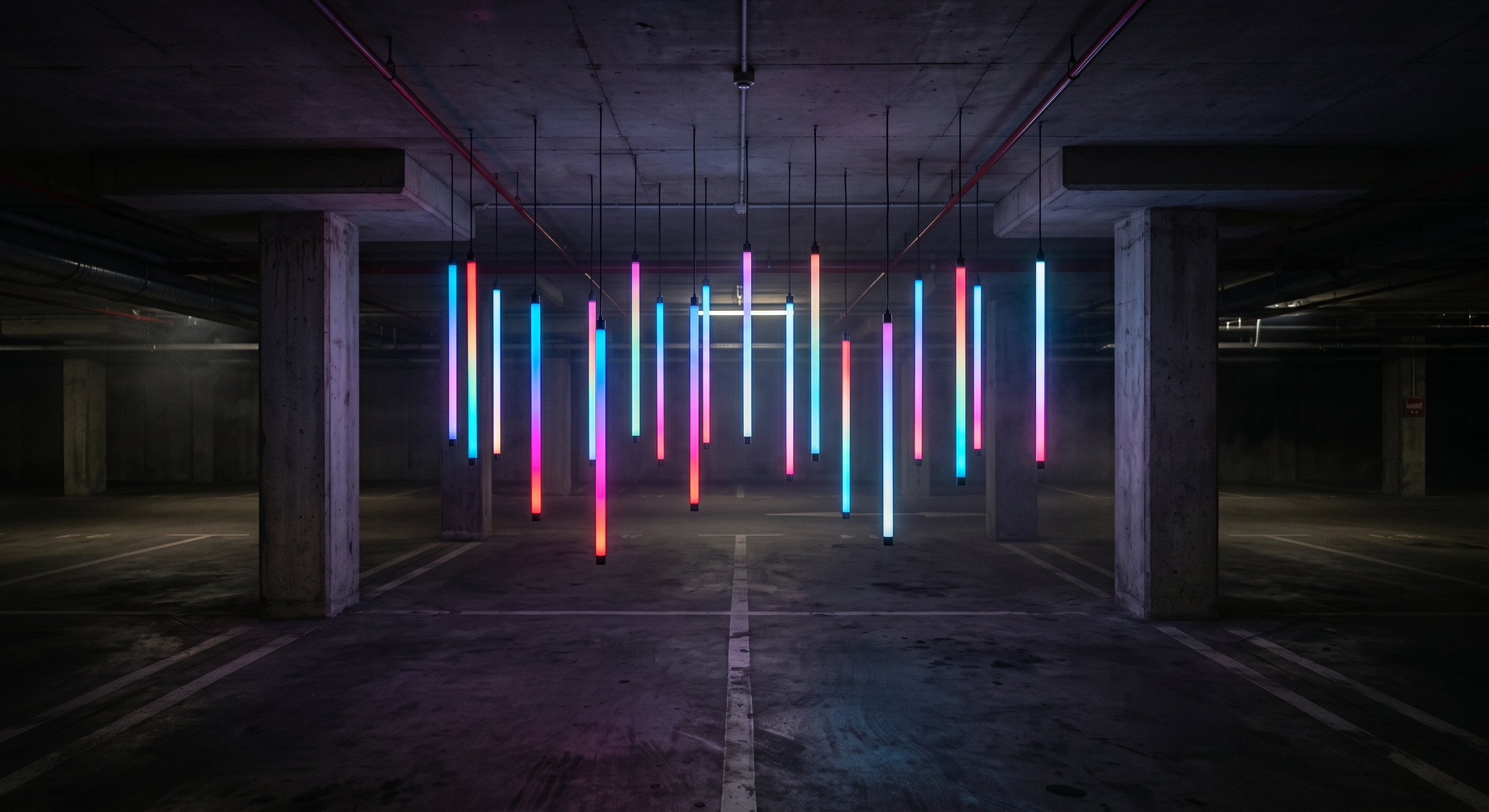

NeoLinear LED tubes suspended in an underground architectural space Control + signal + suspension + diffused output
Technical snapshot

Core System Specifications

Tube body40mm diameter

A tough diffused tube designed for professional installations.

Light outputContinuous 360° illumination

All-angle colour with a smooth and visibly dot-free surface.

Standard length1m

The stocked range is supplied in one consistent 1m tube length.

Input24V system

Specified across the supplied reference tube models.

SPI controlAddressable pixel effects

SPI Pixel Tubes create movement, chases, gradients and waves along the tube.

RGB Cool WhiteWhole-tube colour control

Wire to an existing RGB controller and change the full tube colour at once.

RGB cable3m cable to one end

RGB Cool White Tubes are supplied with a 3m cable for straightforward wiring.

Attachment systemFast modular connection

Supports compatible floor, hanging, wall and geometric mounting hardware.

Project assuranceTwo-year warranty support

Warranty coverage is stated for the supplied reference tube specifications.

Bespoke NeoLinear manufacturing

Need aDifferent Size?

The stocked tube range is 1m, but your installation does not have to be. We can manufacture bespoke NeoLinear tubes for custom structures, architectural features and large-scale lighting concepts.

Custom length0.5m to 3m

Specify the right tube length for the space, layout or structure.

Custom diameter40mm to 150mm

Scale the tube body to suit the visual impact and construction required.

Discuss Bespoke Tubes

Technical project support

Build the Right NeoLinear System

Talk to the technical sales team about tube selection, control, cabling, mounting and bespoke manufacturing for your installation.

Call technical sales01260 540014 Project enquiriesEmail technical support Custom shapes & sizesExplore bespoke options
