TRIC1ZR Mi-Light ZigBee TRIAC Dimmer

Product Code: TRIC1ZR
  • Input voltage 100v-240v AC 50/60Hz
  • ZigBee Protocols
  • 2.4GHz RF protocols>
  • Push Dim facility
  • 1.36A Maximum load
  • 5 Year Warranty
100V - 240V AC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Sign In/Register to view Prices

Product Description

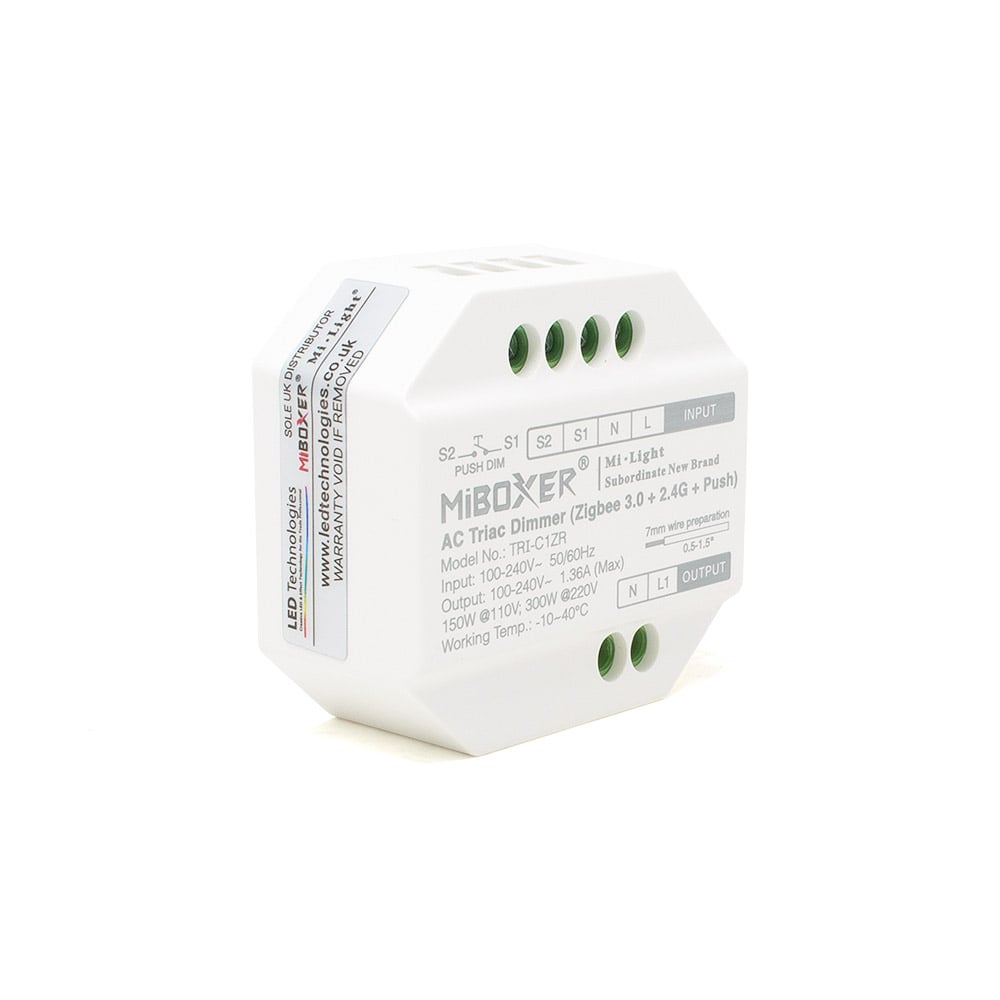

The TRIC1ZR is a small TRIAC Dimmer that will switch and dim your mains powered lighting products up to 1.36A. It will work with filament, halogen or LED mains powered lighting products. The dimmer will work from ZigBee protocols so it can be linked to your smart home system. This will enable you to control your lighting products from anywhere in the world and it will enable you to set up routines such as switching on your outdoor floodlights when to get home in the evening or switching them off automatically when everyone leaves home in the morning.

The dimmer will also pair with the Mi-Light / Mi-Boxer 2.4GHz RF remote control handsets or wall panels and with the addition of PUSH dimmer connections it can be hard wired into a momentary push switch. When in 2.4GHz control mode the dimmer also features signal synchronisation which effectively forms a MESH network of 2.4GHz products passing the signal from unit to unit with no limit to the number of units that will work together wirelessly.

For further information about this and our other exciting range of lighting and control products please contact our technical sales team by phone, email or live chat and we will be pleased to advise you enabling you to get the best out of our products.



Quick Specs

  • Guarantee Period5 Years
  • IP RatingIP20 Non-Waterproof
  • Input Voltage100V - 240V AC
  • Input SignalZIGBEE + 2.4GHz RF

What's in the box

  • TRIAC RF / ZigBee Dimmer
  • Instruction manual

Technical Specification

  • Product Code: TRIC1ZR
  • Product Packed Gift box
  • Manufacturer Mi-Light / MiBoxer
  • LED Strip Brands Mi-Light MiBoxer
  • Product Type Controller / Receiver
  • IP Rating IP20 Non-Waterproof
  • Guarantee Period 5 Years
  • Input Voltage 100V - 240V AC
  • Output Voltage 100V - 240V AC
  • Output Current 1.36A
  • Connectivity ZIGBEE protocols
  • Size L49mm x W49mm x H25mm
  • Dimmable: No
  • Wireless Range Up to 100 metres
  • Max Bend Not Applicable
  • Operation Frequency Zigbee 3.0
  • Operating Temp -10 to 40ºC

Product Datasheets

  • pdf Distributor Authentication Notice Download
  • pdf Datasheet - TRIC1ZR Download
