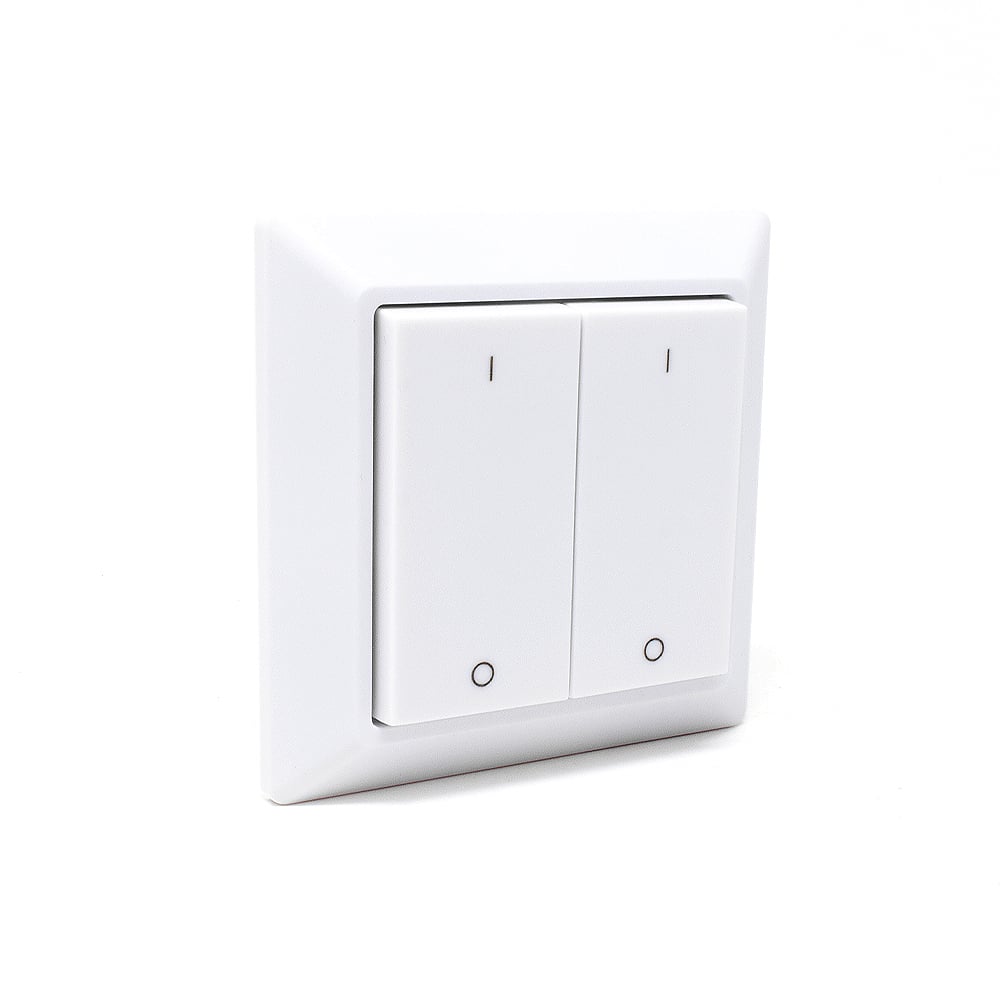

Sunricher ZIGBEE 2 Zone Single Colour Kinetic Wall Panel

Product Code: SRZGP2801K4DIMG2

Single colour two zone Kinetic wall panel
No power or batteries required
Works as part of your ZIGBEE lighting system
On / Off, CCT control & dimming functions
Easily mountable no wiring required
Typical transmitting range is 10-30m
Slim compact design will fit standard Euro panel
Fixing Kit supplied

View full product details and specification

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Currently in Stock

Next day delivery available*

In stock

Speak with an Expert

Product Details

Product Description

This Kinetic wall mounted LED light controller is from Sunricher. It is a wireless LED controller that will communicate with a wide variety of ZIGBEE compatible systems. It is designed to control your single colour LED lighting products over two zones. It is a highly reliable and a high quality product.

This innovative ZIGBEE controller does not require any connections for power. It has an integral micro generator that produces a small electrical current that powers the built in transmitter.

Simply pair with your ZIGBEE receiver to control your lights without need of any connecting cables. This LED controller can be mounted just about anywhere. It is designed to be integrated into your ZIGBEE home automation network.

Two individual zones can be controlled by simply pushing the appropriate button. To dim your LED lighting between 0% - 100%, simply push and hold the appropriate switch.

Using its high-quality touch control LED light control, this LED remote control panel features:

Smooth Dimmable adjustment of LED strip lights
30m wireless range
Pairing with wireless receivers/ controllers
Bluetooth integration
Home network integration

ZIGBEE is a wireless protocol that forms a MESH network which is a group of products that all communicate with each other so that the wireless signal can find the most efficient route around the network.

This LED wall mounted remote controller is has a slim compact design that is ideal for both domestic and commercial applications. Ideal for lighting that requires wireless control through bluetooth or smart home network integration.

Quick Specs

What's in the box?

Sunricher ZIGBEE 2 x Zone Single Colour Kinetic Wall Panel
Instruction manual

Technical Specification

Product Code:	SRZGP2801K4DIMG2
Product Packed	Gift box
Manufacturer	LED Technologies
Product Type	Controller
Colour	White
IP Rating	IP20 Non-Waterproof
Guarantee Period The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.	5 Years
Input Voltage This is the required amount of volts needed to power the product.	Kinetic - Self Powered
Connectivity	ZIGBEE protocols
PCB Weight	Not Applicable
Size	80.5 x 80.5 x 14.7mm
CRI Rating (greater than)	CRI >80
Dimmable:	No
LED Type	Not Applicable
Average LED life Hrs	30,000
Colour Temperature Variation	IP20 No
Power Factor >	Not Applicable

Wireless Range	Up to 30 metres
Continuous Operation	Not suitable for 24/7 continuous use
Relative Humidity	8% to 80%
Operation Frequency	2.4GHz
Operating Temp	0-40°C
