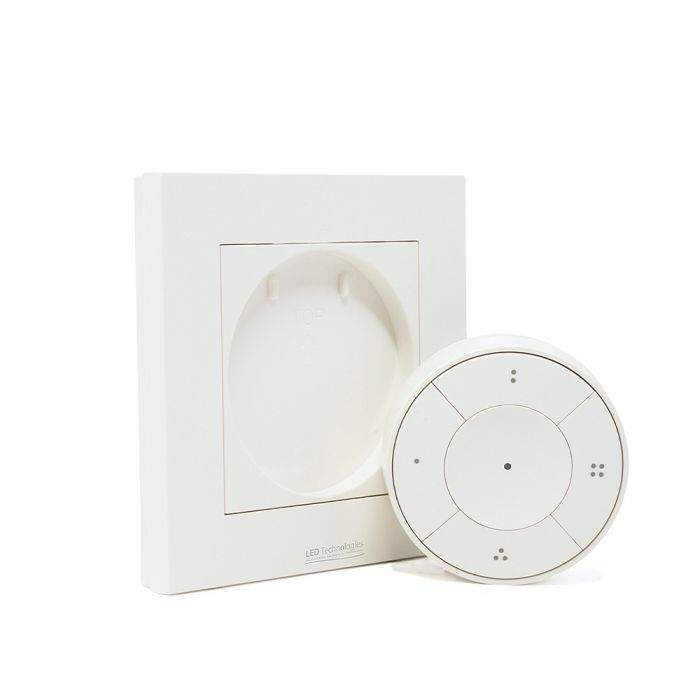

Sunricher Zigbee RGB+CCT 4 x Scene + Curtain Smart Remote Wall Panel

Product Code: SRZG2836D5EU
  • Sole UK & Ireland Authorised Distributor
  • For Single colour, CCT, RGB, RGB+CCT colour changing LED products
  • Curtain control mode to open & close your blinds or drapes
  • Works with universal ZIGBEE MESH Networks
  • Can be used as a standalone ZIGBEE Device
  • Supports Touch Link Commissioning
  • Up to 4 x programmable scenes can be stored & recalled
  • Supports 1 Group of up to 30 devices
  • Multi-function button for colour & brightness
  • Battery Powered (1 x CR2450)
  • Magnetic remote for hand, wall panel or desktop control
  • Supplied with wall panel backplate
  • 5 Year Warranty
White
Battery Powered
check-circle Same day shipping available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

Product Description

The ZIGBEE Wireless protocol can work as an independent wireless system or through a ZIGBEE gateway, forming a mesh network of control products that pass the signal from node to node finding the most efficient route through the network. This high-quality desktop RGBW controller from our Sunricher range of lighting control products easily integrates into your ZIGBEE network of products through the Sunricher ZIGBEE gateway, enabling control of your Single colour, Colour Temperature Adjustable (CCT), RGB or RGB+CCT Colour changing LED Lighting. There is also a Curtain control mode that will open or close your Roller Blinds, Shutter Blinds or Drapes. The controller requires a CR2450 Button Battery to power it and as it is fixed magnetically to the standard UK / EU wall panel (supplied) it can also be removed and used anywhere within the ZIGBEE MESH network as a handheld controller if required. There is also a desktop base unit (supplied separately) that it can be attached to magnetically if required.

The remote-control unit it has a range of up to 30m and up to four separate scenes can be stored on the remote controller for instant recall at the touch of a button. Note: Walls and other obstructions can reduce the range of wireless products.

For more information on this and our other professional lighting control products please contact our technical sale team by phone, email or via live chat and WhatsApp on our website

Quick Specs

  • ColourWhite
  • Guarantee Period5 Years
  • IP RatingIP20 Non-Waterproof
  • Input VoltageBattery Powered

What's in the box

  • ZIGBEE RGB+CCT Smart Remote
  • Wall Panel Base Plate
  • Adhesive & Screw Fixings
  • Data Sheet

Technical Specification

  • Product Code: SRZG2836D5EU
  • Product Packed Gift box
  • Manufacturer LED Technologies
  • LED Strip Brands Sunricher
  • Product Type Controller
  • Colour White
  • IP Rating IP20 Non-Waterproof
  • Guarantee Period 5 Years
  • Input Voltage Battery Powered
  • Connectivity ZIGBEE protocols
  • Size Wall Panel 86mm x 86mm, Rotary Controller 52mm Dia x 20mm Deep
  • Dimmable: No
  • Operating Temp 0-40°C

Product Datasheets

  • pdf SRZG2836D5 Datasheet Download
  • pdf Sunricher Attestation Of Conformity Download
