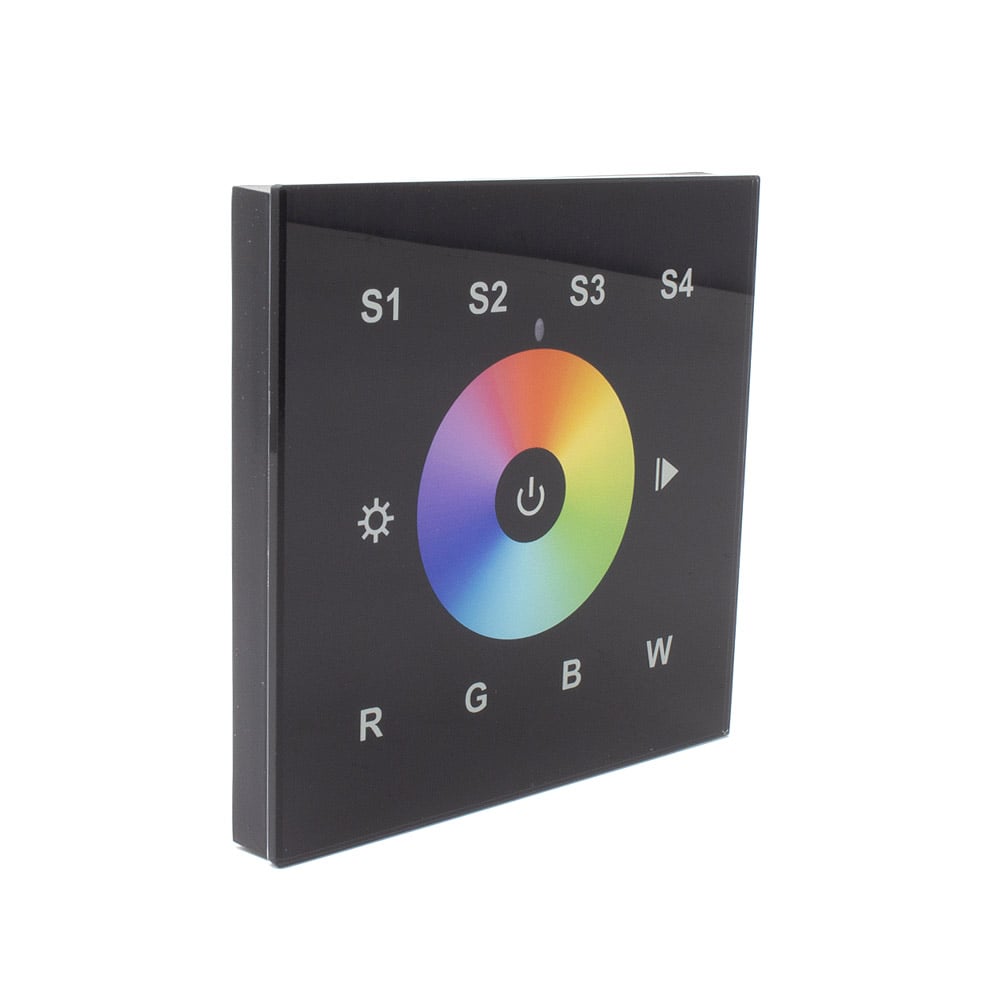

Sunricher RF RGBW 4 x Scene RF Wall Panel Black (Mains voltage)

Product Code: SR2820BACBLACK
  • RGBW colour single zone RF wall panel
  • Four programmable scenes
  • Ten built in adjustable programs
  • 100v to 240v connection only required
  • Smooth RGBW adjustment and dimming
  • Up to 20m range
  • Fixing Kit supplied
  • Stylish black glass panel design
Black
IP20 No
100V - 240V AC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

Product Description

This wall control panel from our range or Sunricher products is a high quality radio frequency remote. It is designed for controlling Quad Colour LED lighting in four channels. It is ideal for installing in the domestic or commercial market where reliable, high quality products are required.



Instant colour selection is available using the touch sensitive disc on the LED light controller. It is possible to adjust the brightness levels of each of the four channels. This enables you to mix the exact colour required.

You can then store those settings into one of four programmable scenes. They can be instantly recalled at the touch of a button on the wall control panel.

In addition there are ten effects that can be selected and adjusted for both run speed and brightness.

This product is compatible with our range of four channel Sunricher receivers. It will control 12v, 24v or 36v quad colour products.



Using its high-quality rotating control LED control, this RF remote control panel features:

  • Smooth Dimmable adjustment
  • Smooth colour changing of LED strip lights
  • 4 programmable channels
  • 10 adjustable programs

The transmitter has an attractive black finished touch sensitive glass panel and can operated within 20m of the receiver units.

Quick Specs

  • CRI Rating (greater than)CRI >80
  • ColourBlack
  • Guarantee Period5 Years
  • Colour Temperature VariationIP20 No
  • Input Voltage100V - 240V AC

What's in the box

  • RGBW colour changing RF wall panel
  • Fixing kit
  • Instruction manual

Technical Specification

  • Product Code: SR2820BACBLACK
  • Product Packed Gift box
  • Manufacturer LED Technologies
  • LED Strip Brands Sunricher
  • Product Type Controller
  • Colour Black
  • Guarantee Period 5 Years
  • Input Voltage 100V - 240V AC
  • Connectivity RF
  • PCB Weight Not Applicable
  • Size 86 x 86 x 29.1mm
  • CRI Rating (greater than) CRI >80
  • Dimmable: Yes
  • LED Type Not Applicable
  • Average LED life Hrs 30,000
  • Power Factor > Not Applicable
  • Continuous Operation Not suitable for 24/7 continuous use
  • Voltage Type Mains Voltage
  • Relative Humidity 8% to 80%
  • Operation Frequency 869.5 / 434MHz
  • Operating Temp 0-40°C

Product Datasheets

  • pdf Datasheet - SR2820B Download
  • pdf Pre-Programmed Effects List Download
