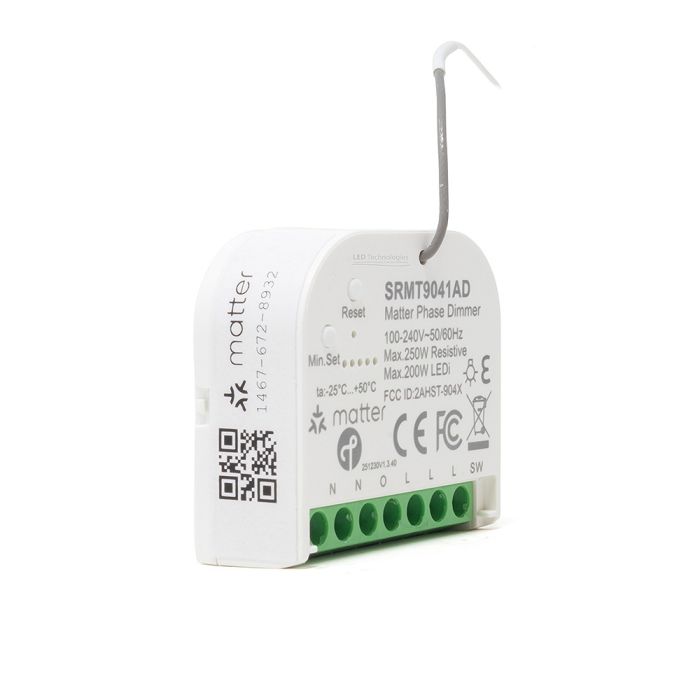

Sunricher Matter Dual Tech 1 x Ch Matter + Zigbee Mini Smart Dimmer

Product Code: SRMT9041AD
  • Sole UK & Ireland Authorised Distributor
  • Matter over Thread Mini Smart Dimmer
  • 100V - 240V AC input with or without a neutral wire
  • Supports resistive, Capacitive & Inductive loads
  • Trailing Edge Dimming
  • Up to 250W incandescent & HV Halogen
  • Up to 200W for LED lamps, dimmable drivers & LV Halogen
  • Enables On / Off and Dimming
  • Supports touch link remote control
  • Fully compatible with Universal Matter systems
  • App control through Matter Apple Home, Amazon Alexa, Google Home
  • Voice control with Apple Siri, Google Assistant, Amazon Alexa
  • 16mm deep can be installed into a standard UK / EU wall box
  • 5 Year Warranty
White
100V - 240V AC
check-circle Same day shipping available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

Product Description

This Matter over Thread + ZIGBEE Mini Smart AC Phase Cut Dimmer module has advanced microprocessor control and will switch and dim your dimmable mains-powered LED lamps, LED dimmable drivers and Low Voltage halogen lamps up to 200W, it will also work with Incandescent and High Voltage halogen lamps up to 250W. There is a minimum brightness and start up brightness setting and it is equipped with an Active power and Energy Metering functionality, it will work with PUSH dimmers (momentary switches) or toggle switches if required. The mini Dimmer will fit into a standard UK / EU wall box with a depth of 16mm, it can be connected either using a two-wire system (no neutral wire) or a three-wire system (with neutral). The dimmer is Trailing edge, and this superb quality Matter over Thread mini smart dimmer is part of our range of Sunricher lighting control products and can be controlled through Thread from your smart phone application using Apple HomeKit, Amazon Alexa and Google Home for example or by voice control using Apple Siri, Amazon Alexa or Google Assistant. For more information on this and our other exciting range of lighting control products, please contact our technical sales staff by phone, email or through WhatsApp and Live Chat on our website.

Quick Specs

  • ColourWhite
  • Guarantee Period5 Years
  • IP RatingIP20 Non-Waterproof
  • Input Voltage100V - 240V AC
  • Input SignalMatter + Zigbee

What's in the box

  • Matter + Zigbee Mini Smart Dimmer
  • Data Sheet

Technical Specification

  • Product Code: SRMT9041AD
  • Product Packed Gift box
  • Manufacturer LED Technologies
  • LED Strip Brands Sunricher
  • Product Type Receiver
  • Colour White
  • IP Rating IP20 Non-Waterproof
  • Guarantee Period 5 Years
  • Wattage 250W
  • Input Voltage 100V - 240V AC
  • Output Voltage 100V - 240V AC
  • Connectivity Matter over Thread
  • Size 42mm x 36mm x 16mm
  • Dimmable: No
  • Wireless Range Up to 30 metres
  • Operating Temp 0-40°C

Product Datasheets

  • pdf SRMT9041AD Data Sheet Download
  • pdf Sunricher Attestation Of Conformity Download
