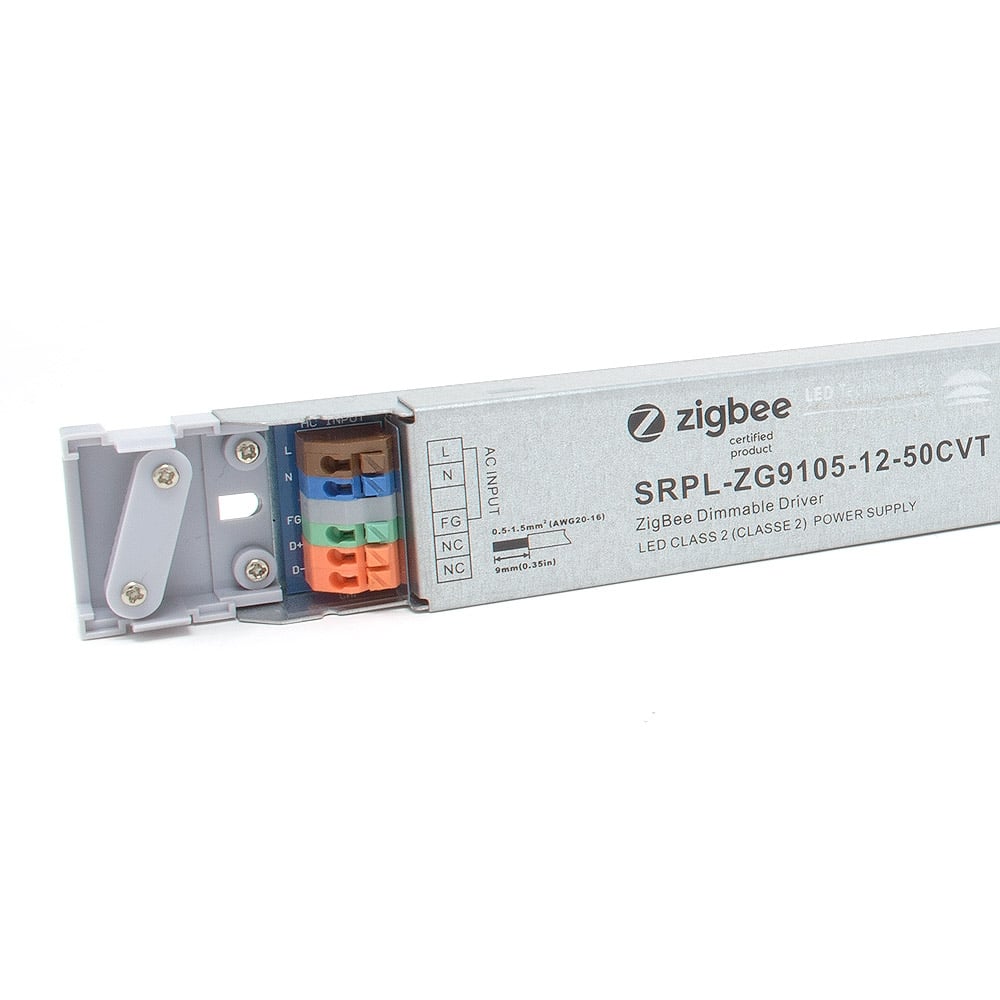

Sunricher ZIGBEE Dual Channel (CCT) 12v 50w Slim Style Constant Voltage LED Driver

Product Code: SRPLZG91051250CVT
  • Uses latest ZIGBEE 3.0 protocols
  • Works with all ZIGBEE devices & hubs
  • Enables "touch-link" commissioning
  • Short circuit, overload & temp protect
  • Acts as repeater to extend the network
  • Works with ZIGBEE remote controllers
  • Easy to link to the ZIGBEE network
  • For single / dual colour (CCT) LED products
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

This high quality ZIGBEE Dual Channel (CCT) 12v 50w ZIGBEE Driver uses the latest ZIGBEE 3.0 protocols enabling you to control your LED Lighting products through your home automation ZIGBEE network.  The unit supports "touch-link" commissioning to pair with other ZIGBEE lighting devices after adding to the same ZIGBEE network.

Simply connect the controller to a 100v - 240v AC mains supply and bind with your ZIGBEE network system to control your RGBW LED lighting products from your home automation system.  You can also use touch-link commissioning with a compatible Sunricher ZIGBEE remote control handset or wall panel directly to the controller without a ZIGBEE hub.

This product is suitable for both commercial or domestic use and has a greater than 90% efficiency.  To ensure a high safety performance worldwide the driver is UL, ENEC and TUV certified.

Quick Specs

What's in the box?

  • ZIGBEE Dual channel 12v 50w Slim Style LED Driver
  • Instruction manual
Product Code: SRPLZG91051250CVT
Product Packed Gift box
Manufacturer LED Technologies
Product Type Controller / Driver
Colour
rthrhrh
Brushed Aluminium
Guarantee Period 5 Years
Wattage 50w
Current 4A
Input Voltage
This is the required amount of volts needed to power the product.
100v - 240v AC
Output Voltage 12v DC
Connectivity ZIGBEE protocols
PCB Weight Not Applicable
Size 486 x 30.7 x 20.9mm
CRI Rating (greater than) CRI >80
Dimmable: Yes
LED Type Not Applicable
Average LED life Hrs 30,000
Colour Temperature Variation IP20 No
Power Factor > Not Applicable
Wireless Range Up to 30 metres
Continuous Operation Not suitable for 24/7 continuous use
Voltage Type Constant Voltage
Operating Temp -20 to +45
Datasheet - SRPL-ZG9105-12-50CVT-SRPL-ZG9105-24-50CVT Download
