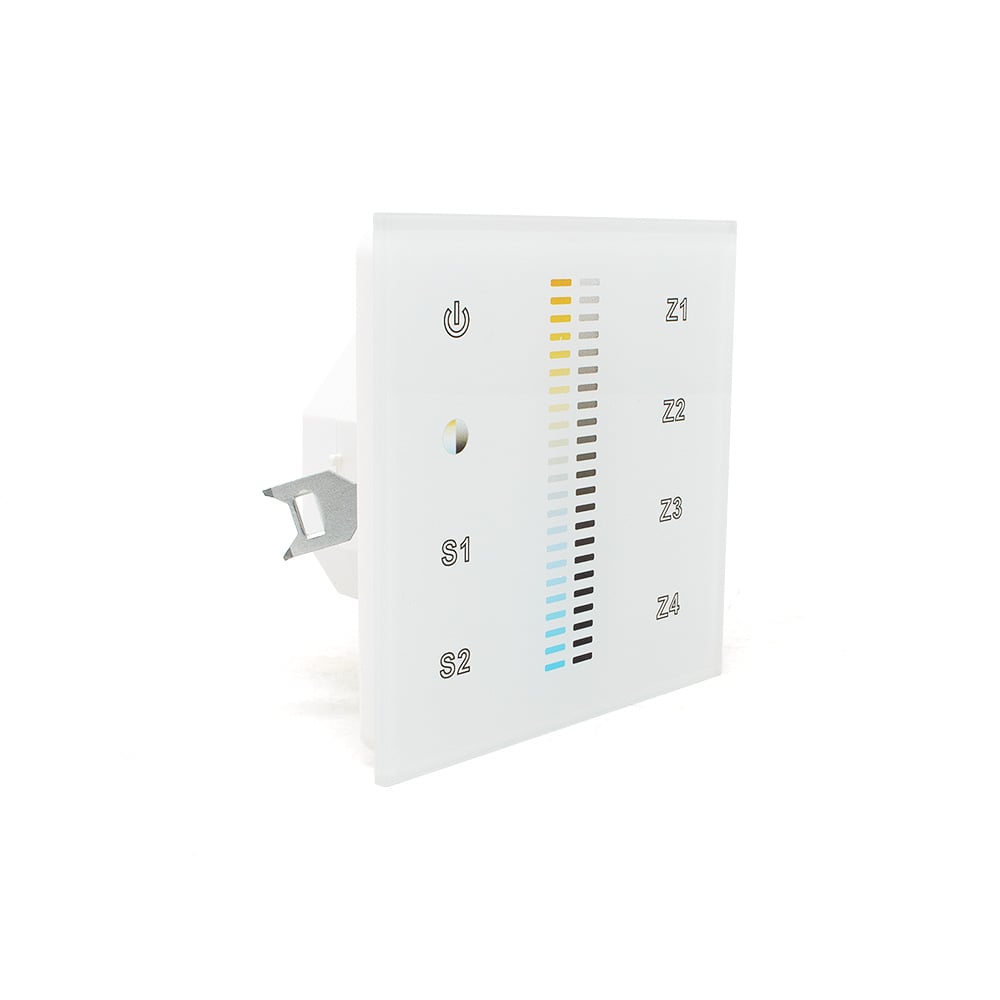

Sunricher DALI DT8 Four Zone Dual Colour (CCT) Double Touch Slider DALI Wall Panel White (Mains Voltage)

Product Code: SR2300TSCCTWHAC
  • DALI DT8 dual colour wall panel
  • Can control 4 x DALI group of devices
  • 2 x programmable scenes
  • Controls all DALI devices on the circuit
  • 100V - 240V AC input
  • Rear rotary switch for assigning groups
  • Built in DALI BUS 100mA PSU
  • Works with all available DALI products
  • Stylish touch sensitive slider controls
White
IP20 No
100V - 240V AC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Sign In/Register to view Prices

Product Description

This DALI DT8 Four Zone colour temperature (CCT) wall panel from our range of Sunricher control systems features a white glass front panel and fully touch-sensitive controls for adjustment of your Dual Colour (CCT) LED Lighting products.

DALI LED control systems allow you to address control your lighting and the wall control panel complies with DALI standard protocols IEC 62386-209:2011 supporting DALI DT8 protocols so it will integrate with your existing DALI DT8 system perfectly.

Using the high-quality touch panel, this CCT wall panel features:

  • Easy power (On/Off)
  • 4 x zone control
  • 2 x programmable scenes
  • Smooth colour temperature adjustment from cool white to warm white
  • Smooth dimming control

Each zone controls one DALI address. Two rotary switches on the back of the device enable the DALI address to be adjusted.

The wall panel has a built-in DALI BUS Power supply when connected to a 100V to 240V AC mains supply or it can be connected and powered by an external DALI BUS.

For more information on all our professional control systems, please contact our technical sales team by phone, email or live chat and WhatsApp on our website.

Quick Specs

  • ColourWhite
  • Guarantee Period5 Years
  • IP RatingIP20 Non-Waterproof
  • Colour Temperature VariationIP20 No
  • Input Voltage100V - 240V AC

What's in the box

  • DALI DT8 4 x Zone 2 x Scene Dual Touch Slider Colour mains Powered Wall Panel
  • Fixing Kit
  • Instruction Manual


Technical Specification

  • Product Code: SR2300TSCCTWHAC
  • Product Packed Gift box
  • Manufacturer LED Technologies
  • LED Strip Brands Sunricher
  • Product Type Controller
  • Colour White
  • IP Rating IP20 Non-Waterproof
  • Guarantee Period 5 Years
  • Input Voltage 100V - 240V AC
  • Connectivity DALI DT8 Protocols
  • Size 86 x 86 x 29.1mm
  • Dimmable: Yes
  • Average LED life Hrs Not Applicable
  • Voltage Type Mains Voltage
  • Max Bend Not Applicable
  • Relative Humidity 8% to 80%
  • DALI bus output Yes
  • Operating Temp 0-40°C

Product Datasheets

  • pdf Datasheet - SR2300TSCCTWHAC Download
