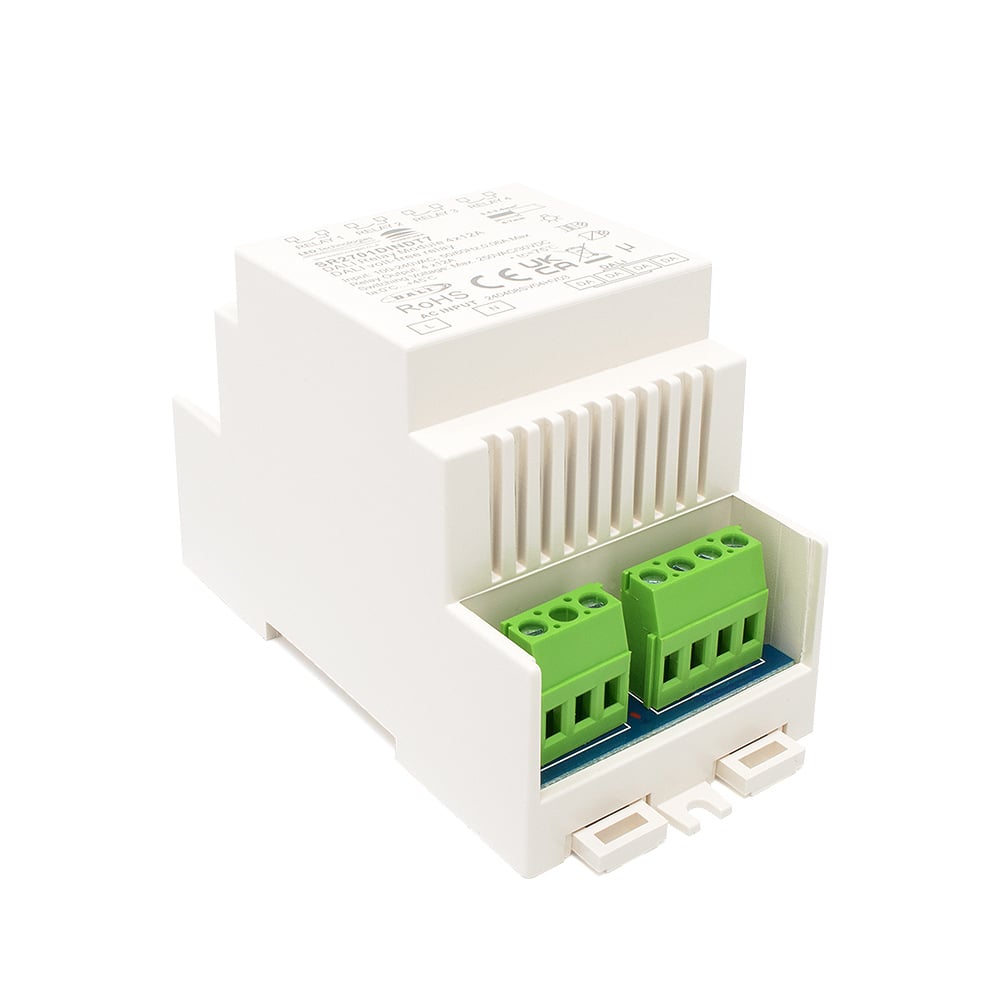

Sunricher DALI 4 Channel (Adjustable) DIN Mount DALI Relay

Product Code: SR2701DINDT7
  • DALI 2 Certified four-channel relay module
  • Works with resistive, inductive & capacitive loads
  • DALI Address settable by DALI master
  • 4 x 12A outputs
  • Input voltage 100V - 240V AC
  • Max switching voltage AC 250V, DC 30V
  • DIN rail mountable
White
100V - 240V AC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

Product Description

This four-channel DALI Relay is available from our professional range of control products by Sunricher. This unit can switch each channel individually or by adjusting the unit to 1, 2, 3 or 4 DALI addresses it can switch the channels together as required.

The relay is DALI 2 certified and can switch AC products up to 250V AC. This product can also switch up to 30V DC with a maximum current per channel of up to 12A.

Designed to be DIN Rail mounted, this DALI switch relay is perfect for commercial or domestic installations. This DALI Relay module can switch Resistive, Capacitive, or Inductive Loads up to 2,7600W.

For more information on this or any of our professional control products, please contact our technical sales team by phone, email or Live Chat and Whats App on our Website.

Quick Specs

  • ColourWhite
  • Guarantee Period5 Years
  • IP RatingIP20 Non-Waterproof
  • Input Voltage100V - 240V AC
  • Input SignalDALI 2

What's in the box

  • Sunricher DALI 4 Channel (Adjustable) DIN Mount DALI Relay
  • Data Sheet

Technical Specification

  • Product Code: SR2701DINDT7
  • Product Packed Gift box
  • Manufacturer LED Technologies
  • LED Strip Brands Sunricher
  • Product Type Controller
  • Colour White
  • IP Rating IP20 Non-Waterproof
  • Guarantee Period 5 Years
  • Input Voltage 100V - 240V AC
  • Output Voltage 100V - 240V AC
  • Output Current 12V - 36V: 8A 48V: 4A
  • Connectivity DALI protocols
  • Size 53mm x 105.5mm x 65mm
  • Dimmable: No
  • Wireless Range Up to 30 metres
  • DALI Current Consumption <3mA
  • Input Voltage Range 100V - 240V AC
  • Operating Temp -20~50°C

Product Datasheets

  • pdf Datasheet - SR2701DINDT7 Download
