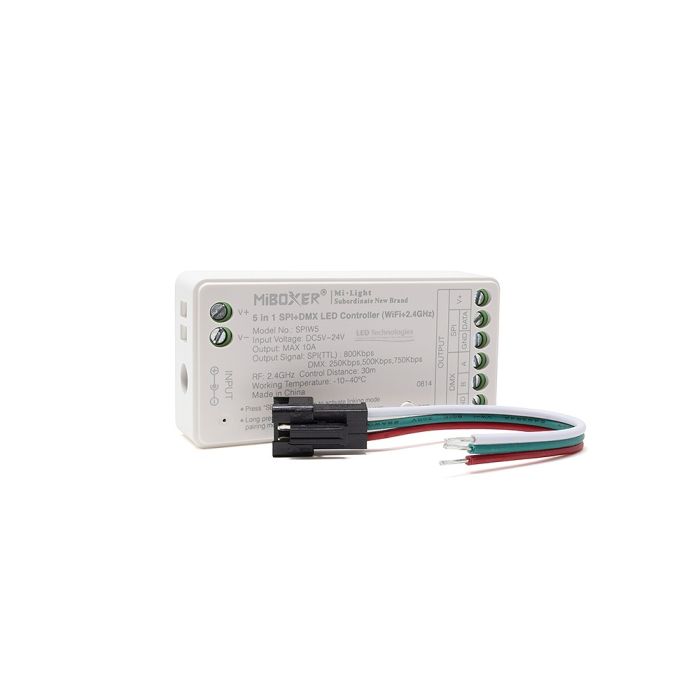

SPIW5 MiBoxer SPI+DMX 5-In-1 Controller (2.4G RF & Wi-Fi)

Product Code: SPIW5
  • Sole UK Distributor
  • RF remote control (2.4GHz) & Wi-Fi
  • For Single Colour, CCT, RGB, RGBW & RGB+CCT
  • Works with C9 SPI handset & B9 SPI wall panels
  • Smartphone compatible (Tuya Application)
  • Music Mode (Internal microphone or smart phone)
  • Programmable settings through the Tuya Application
  • Do not Disturb function
  • For 5V to 24V LED Pixel Strips
  • Dual protocol SPI or DMX
  • Easy to pair with handsets & wall panels
5V to 24V
check-circle Same day shipping available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

Product Description

From our Mi-Light / Mi Boxer range of LED Control products this dual protocol pixel strip controller will work with both SPI and DMX protocols. The controller can be paired with the C9 SPI remote control handset or the B9 SPI Wall Panel to enable you to access the various programs in the controller. The various functions and parameters in the controller can be set when the controller is paired to the Tuya Application. There is a built-in music function with 8 settings that makes use of the in -built microphone on the controller or if playing music from your smart phone it will respond to the microphone on your phone when connected to the Tuya Application. Another great feature of this product is the "Do not Disturb" function which allows you to set the lighting to return to the last setting or in the "off" state should power be lost and then restored. These superb wireless receiver / controllers can be used for both commercial & domestic installations for 5v to 24V LED Pixel strips using either the SPI or DMX protocol (settable from the Tuya Application. For more information on these or any of our Mi-Light / Mi-Boxer range of products please contact our technical sales team by phone, email or live chat and WhatsApp on our website.

Quick Specs

  • Guarantee Period5 Years
  • IP RatingIP20 Non-Waterproof
  • Input Voltage5V to 24V

What's in the box

  • SPIW5 Receiver / Controller
  • Connection Cable
  • Adhesive Pad
  • Instruction manual

Technical Specification

  • Product Code: SPIW5
  • Product Packed Gift box
  • Manufacturer Mi-Light / MiBoxer
  • LED Strip Brands Mi-Light MiBoxer
  • Product Type Controller / Receiver
  • IP Rating IP20 Non-Waterproof
  • Guarantee Period 5 Years
  • Input Voltage 5V to 24V
  • Output Voltage 5V to 24V
  • Connectivity RF & WiFi
  • Dimmable: No
  • Wireless Range Up to 30 metres
  • Voltage Type Constant Voltage
  • Rated Current Max Output Current 12A
  • Voltage Range 12v DC & 24V DC
  • Frequency Range 433MHz
  • Transmitting Power Up to 500m
  • Operation Frequency 433MHz
  • Operating Temp -10 to 40ºC
  • Total Output Max12A
  • Output Max 6A/Channel

Product Datasheets

  • pdf SPIW5 Datasheet Download
