Simpilio Trade Cabinet Lighting Systems

Matched cabinet lighting for trade installation teams. Specify lighting, power, switching and cabling as one complete low-voltage system.

fact_checkBuild a Checked Bill of Materialsinventory_2View the product range
Voltage platforms12V / 24V
Colour renderingCRI90
COB protectionIP65
Professional warranty15 Years
Built for professional fitted furniture work.Designed for repeat trade specification, workshop planning and on-site installation teams.
carpenterCabinet makersconstructionJoinerscountertopsKitchen fitterselectrical_servicesElectriciansstorefrontShopfittersfactoryManufacturers
System architecture

Four Matched Component Groups. One Checked Installation.

Simpilio removes the guesswork between strip, drivers, controls and cables. Each project starts with the lighting requirement and finishes with a complete, checked bill of materials.

01 / Lightinglightbulb

Select the light output

Choose the profile, colour temperature, voltage and physical run lengths.

COB / Neon / Angle / CCT
02 / Powerbolt

Calculate the driver load

Match 12V or 24V drivers with suitable wattage headroom for the connected load.

60W / 100W
03 / Controlsensors

Define switching zones

Use master control for one system or channels for separate compartments.

Door / PIR / Touch / RF
04 / Cablingaccount_tree

Complete the cable route

Add connecting cables, extensions and splitters around the furniture layout.

Connect / Extend / Distribute
lightstripLighting profilepowerDriverhubSplitter / controlsensorsSensor / switchaccount_treeCable
Simpilio cabinet lighting installation
check_circleMatched components reduce compatibility checks during estimating and ordering.
Simpilio lighting prepared for fitted furniture
manufacturingLow-voltage connections support workshop preparation and controlled site installation.
Completed Simpilio fitted furniture lighting
descriptionThe calculator produces product codes, quantities, load allowance and installation notes.
Professional applications

Designed Around Fitted Furniture Projects

Use one familiar product system across repeat programmes, bespoke commissions and commercial fit-outs, with practical setup guidance built into each project type.

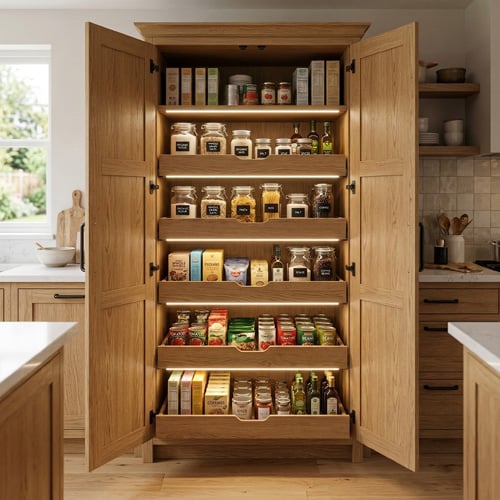

Kitchen cabinet lighting
countertopsKitchen furniture
Kitchen

Worktop and Plinth Runs

For practical task lighting and low-level furniture detail across kitchen zones.

  • COB LED strip
  • Matched 12V or 24V driver
  • Touch or RF switching

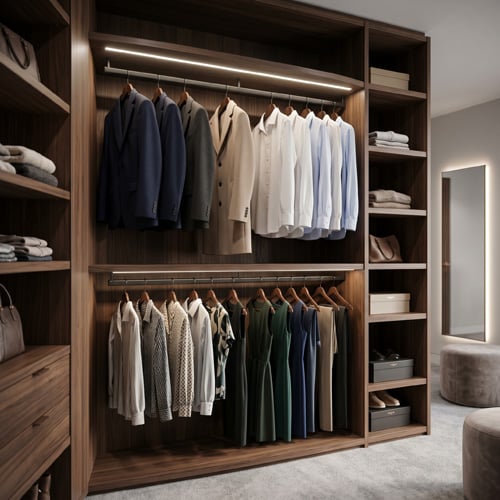

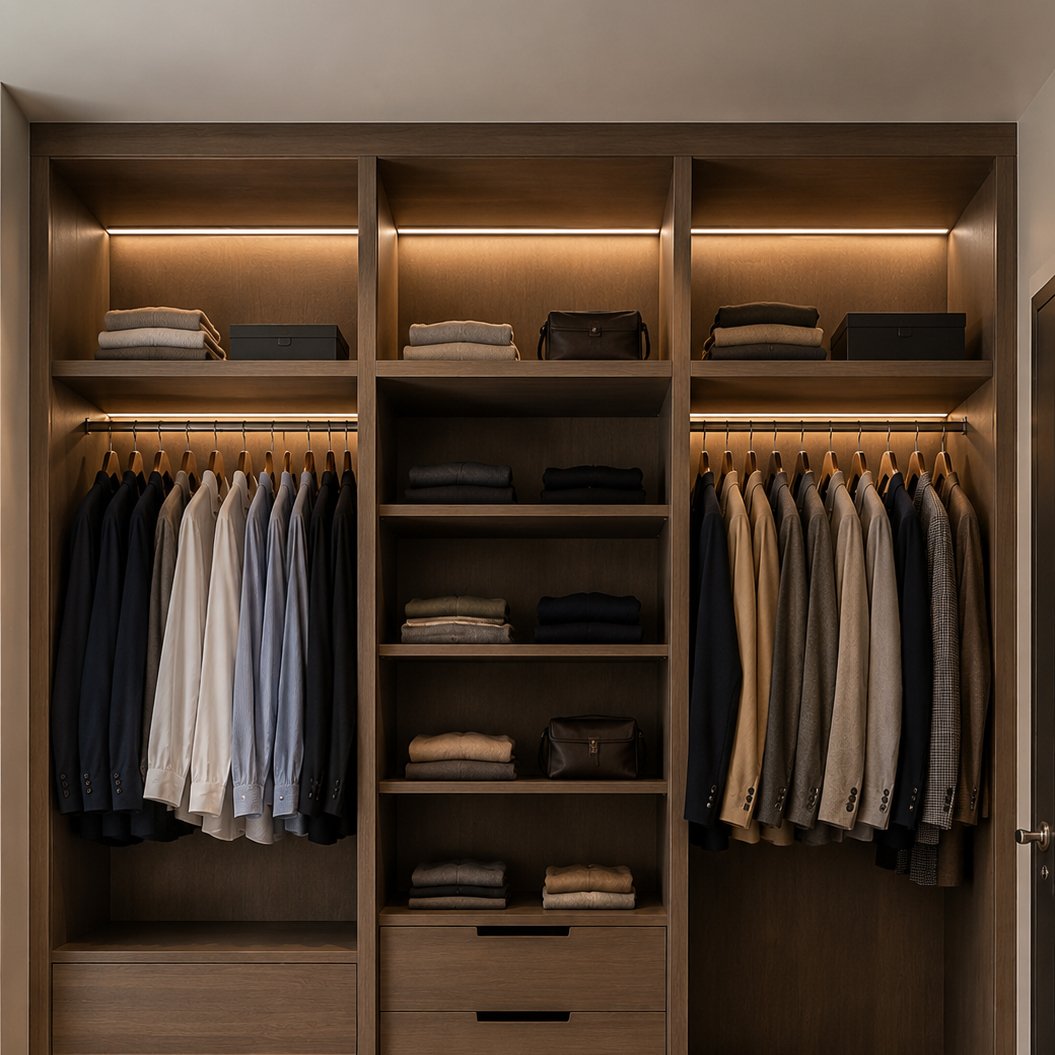

Fitted wardrobe lighting
door_frontFitted wardrobes
Wardrobe

Door-Switched Interior

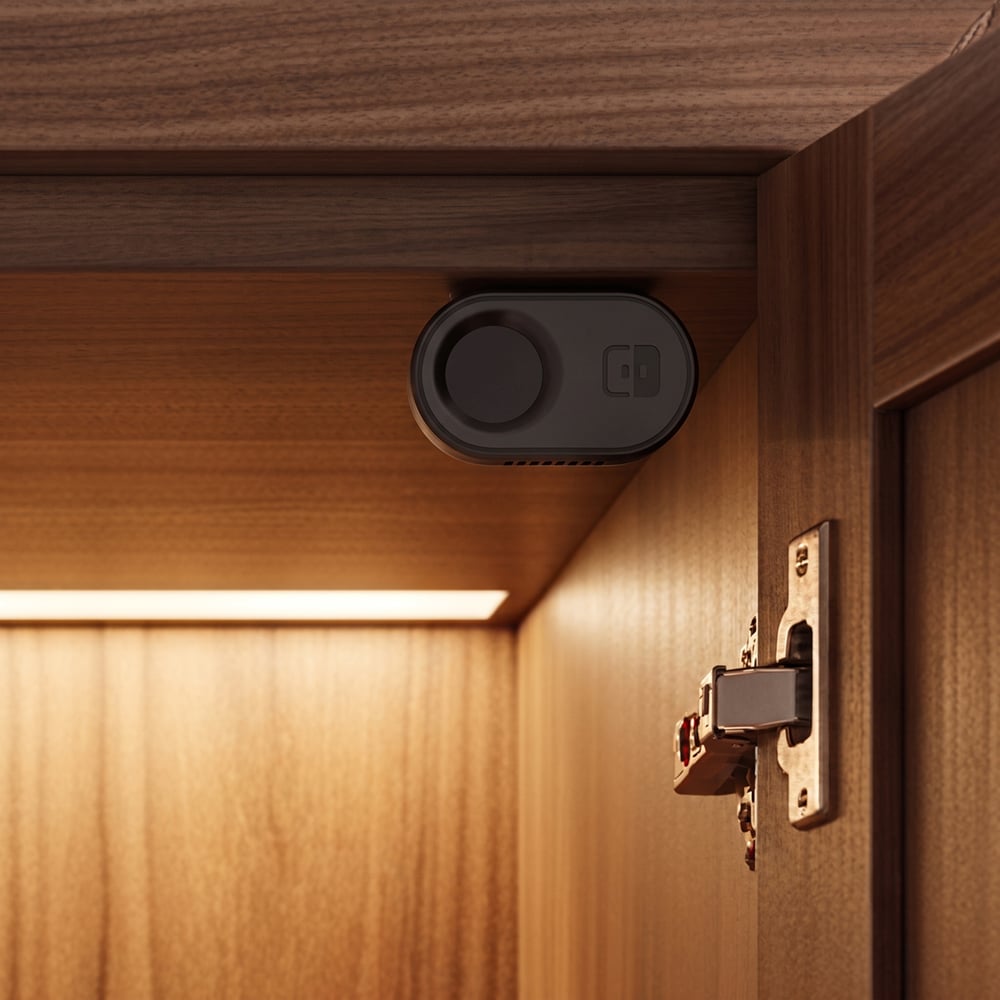

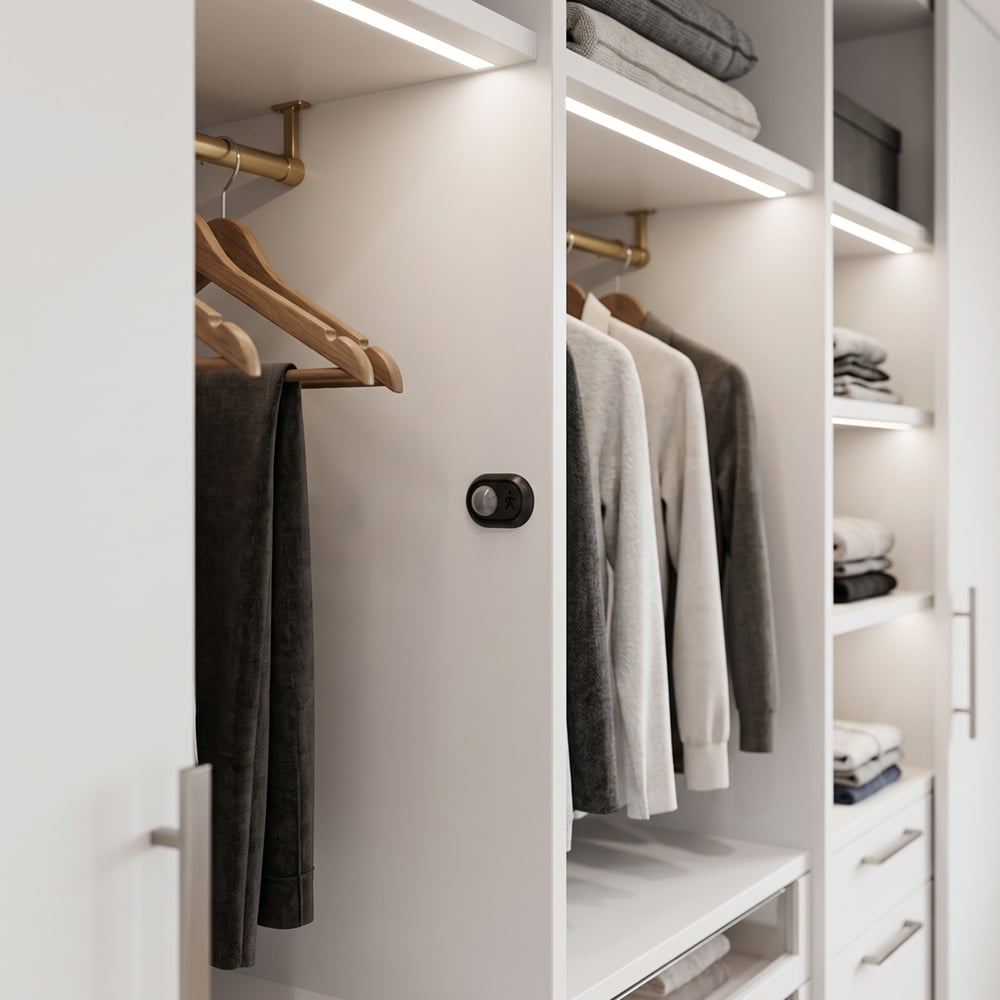

For wardrobes, larders and tall cabinet interiors with automatic activation.

  • COB or CCT cabinet light
  • Door sensor control
  • Accessible driver position

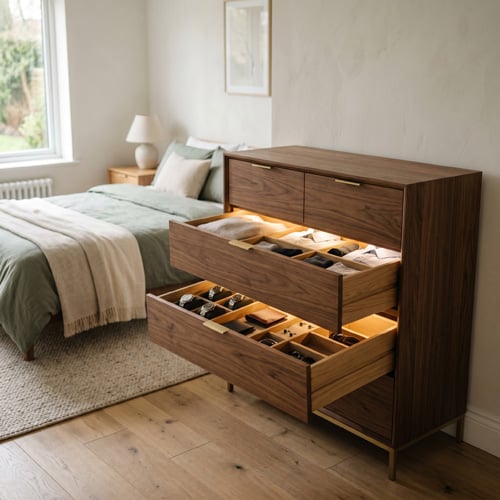

Opening drawer lighting
inventory_2Drawer lighting
Storage

Drawer Zone Control

For separate furniture zones that need independent switching and testing.

  • Channel control sensors
  • Power splitter layout
  • Planned cable routes

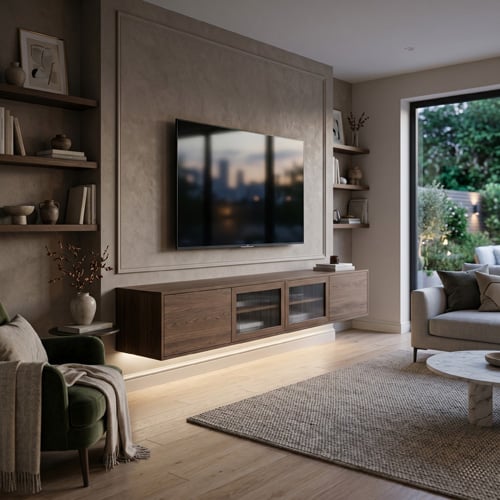

Media furniture and feature lighting
tvMedia furniture
Feature joinery

Media Unit Accent Runs

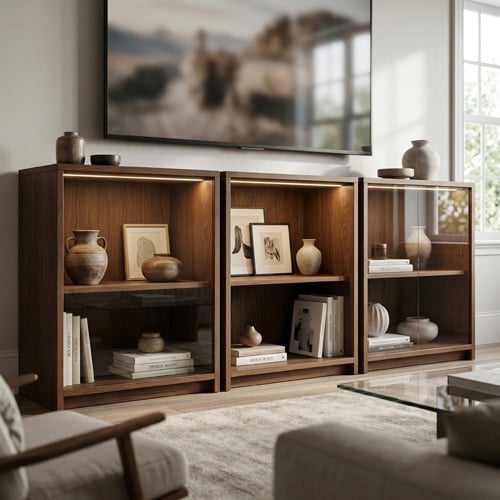

For TV units, shelving niches and feature furniture that need concealed light.

  • COB or Neon Flex
  • Touch or RF switching
  • Concealed driver route

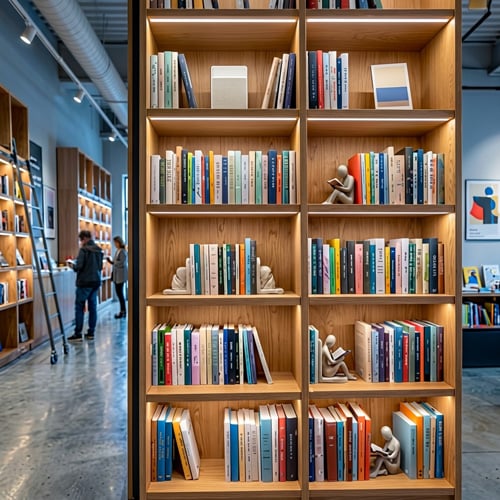

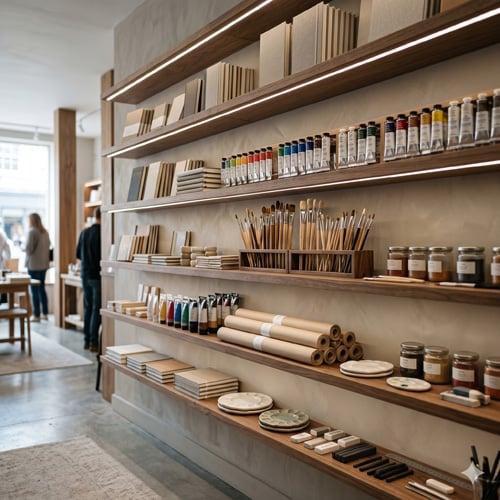

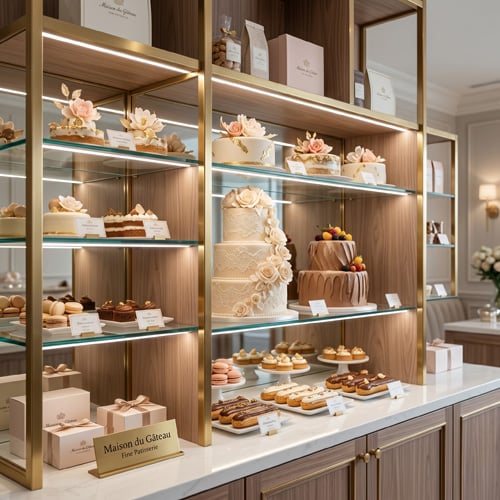

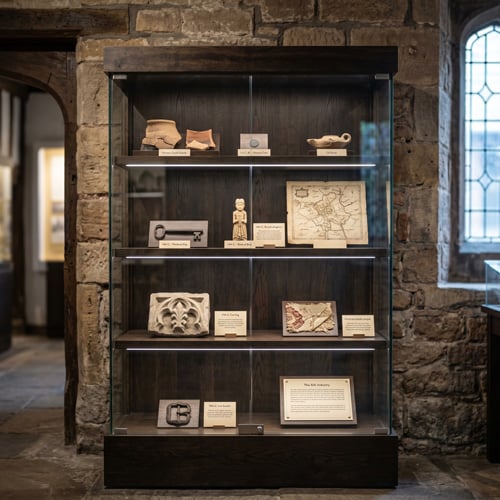

Retail display cabinet lighting
storefrontRetail display
Display

Retail Feature Lighting

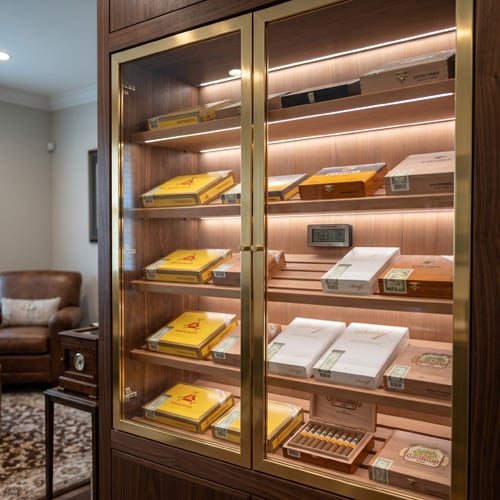

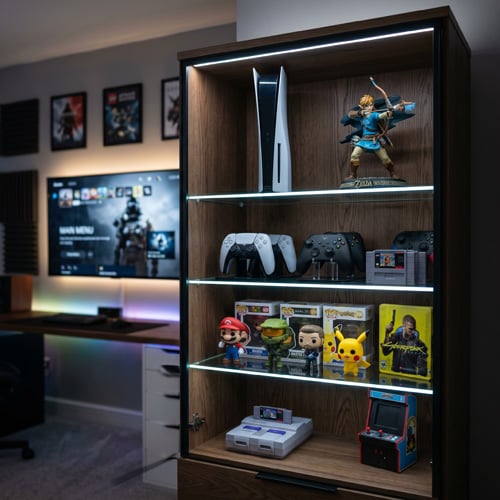

For glass cabinets, shelves and display units where products need clean light.

  • COB or Neon Flex
  • CRI90 colour rendering
  • RF control option

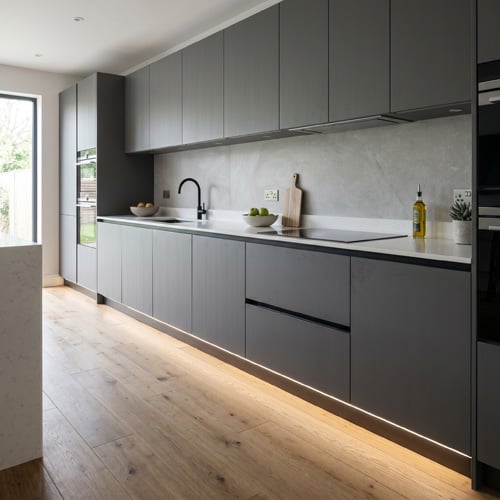

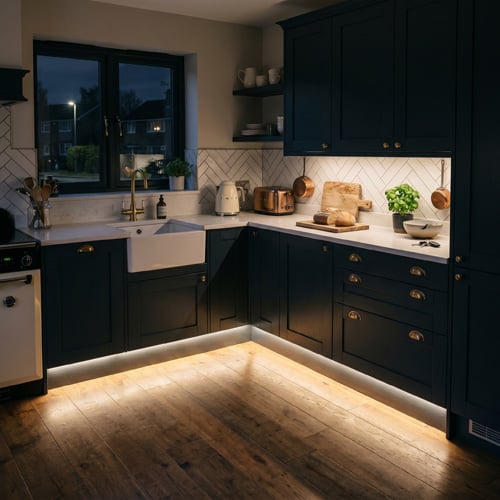

Kickboard lighting detail
line_weightKickboards
Low-level detail

Plinth and Kickboard Runs

For plinths and low-level furniture runs that need even linear output.

  • COB LED strip
  • Matched 12V or 24V driver
  • Planned cable routes
Lighting range

Choose the Right Profile for the Furniture Detail

All three strip families are available across matched 12V and 24V platforms with CRI90 colour rendering.

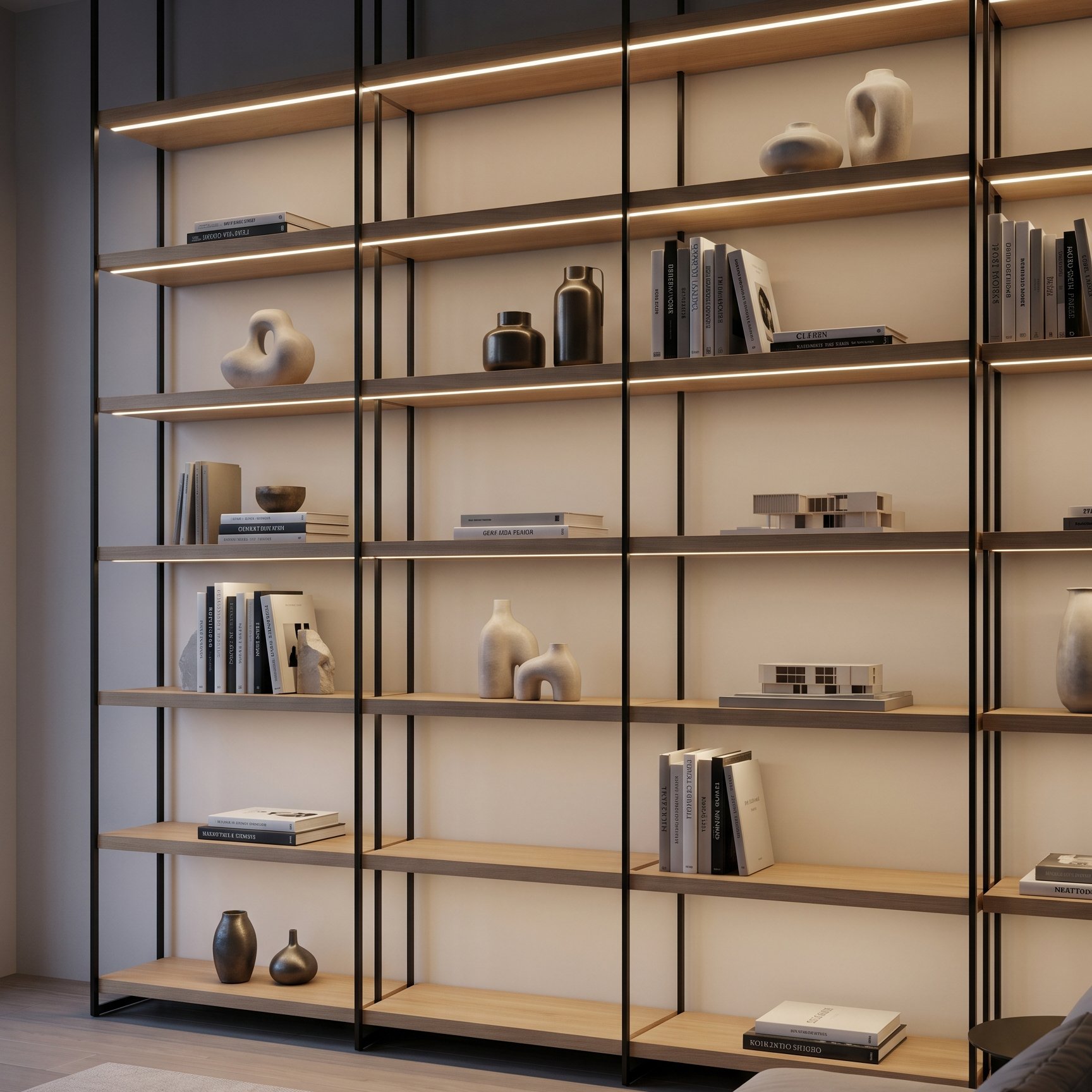

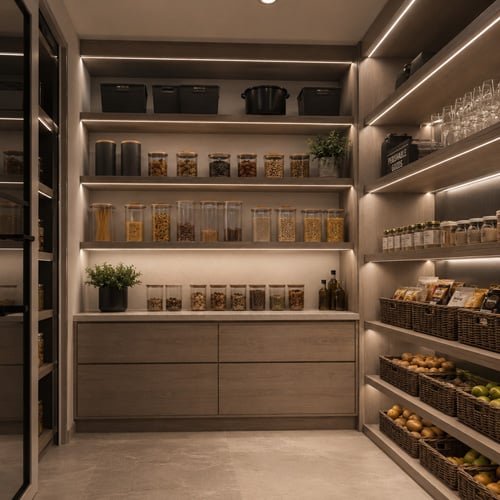

Simpilio COB LED cabinet strip
300.001-300.013Straight runs

COB LED strip

Dot-free linear light for routed channels, shelf undersides, worktops and plinth details.

Colour temperatures
3000K / 4500K
Voltage
12V / 24V
Protection / quality
IP65 / CRI90
Reel lengths
1m / 3m / 5m
Select product
3000K
12V 1m12V 3m12V 5m24V 1m24V 3m24V 5m
4500K
12V 1m12V 3m12V 5m24V 1m24V 3m24V 5m
Best for straight runsStraight routed channels, shelf undersides, worktops and plinth details where a clean dot-free line is required.

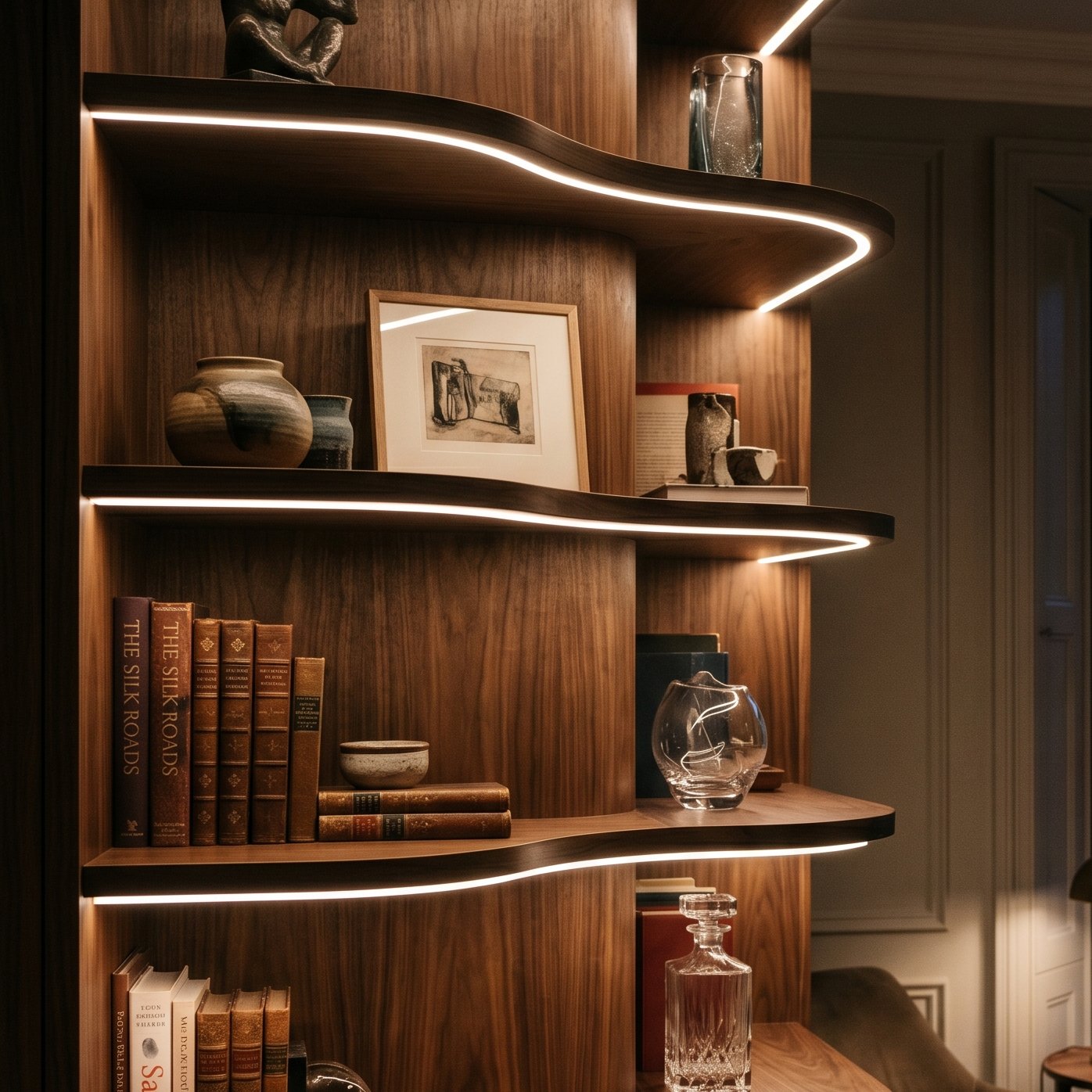

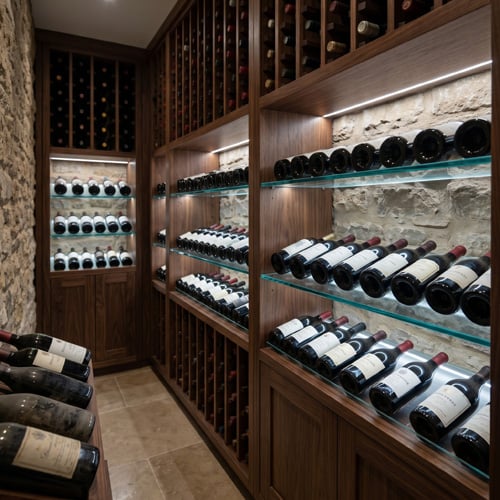

Simpilio cabinet Neon Flex
300.014-300.037Curved details

Neon Flex

Diffused flexible light for gentle bends, feature shapes and non-linear furniture details.

Colour temperatures
3000K / 4500K
Voltage
12V / 24V
Protection / quality
IP65 / CRI90
Reel lengths
1m / 3m / 5m
Select product
3000K
12V 1m12V 3m12V 5m24V 1m24V 3m24V 5m
4500K
12V 1m12V 3m12V 5m24V 1m24V 3m24V 5m
Best for curved detailsCurved shelves, feature routes and non-linear furniture details with smooth continuous output.
Simpilio Angle Neon cabinet lighting
300.038-300.049Corner details

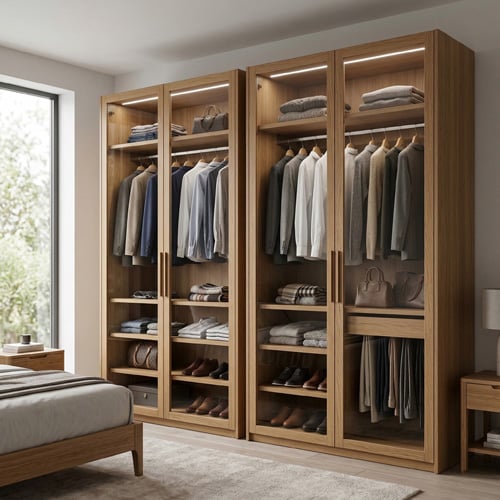

Angle Neon

Forward-projecting light for corner routes, shelf returns and concealed edge details.

Colour temperatures
3000K / 4000K
Voltage
12V / 24V
Protection / quality
IP65 / CRI90
Reel lengths
1m / 3m / 5m
Select product
3000K
12V 1m12V 3m12V 5m24V 1m24V 3m24V 5m
4000K
12V 1m12V 3m12V 5m24V 1m24V 3m24V 5m
Best for corner detailsCorner returns, forward-facing edges and concealed shelf details where the light projects from an angle.

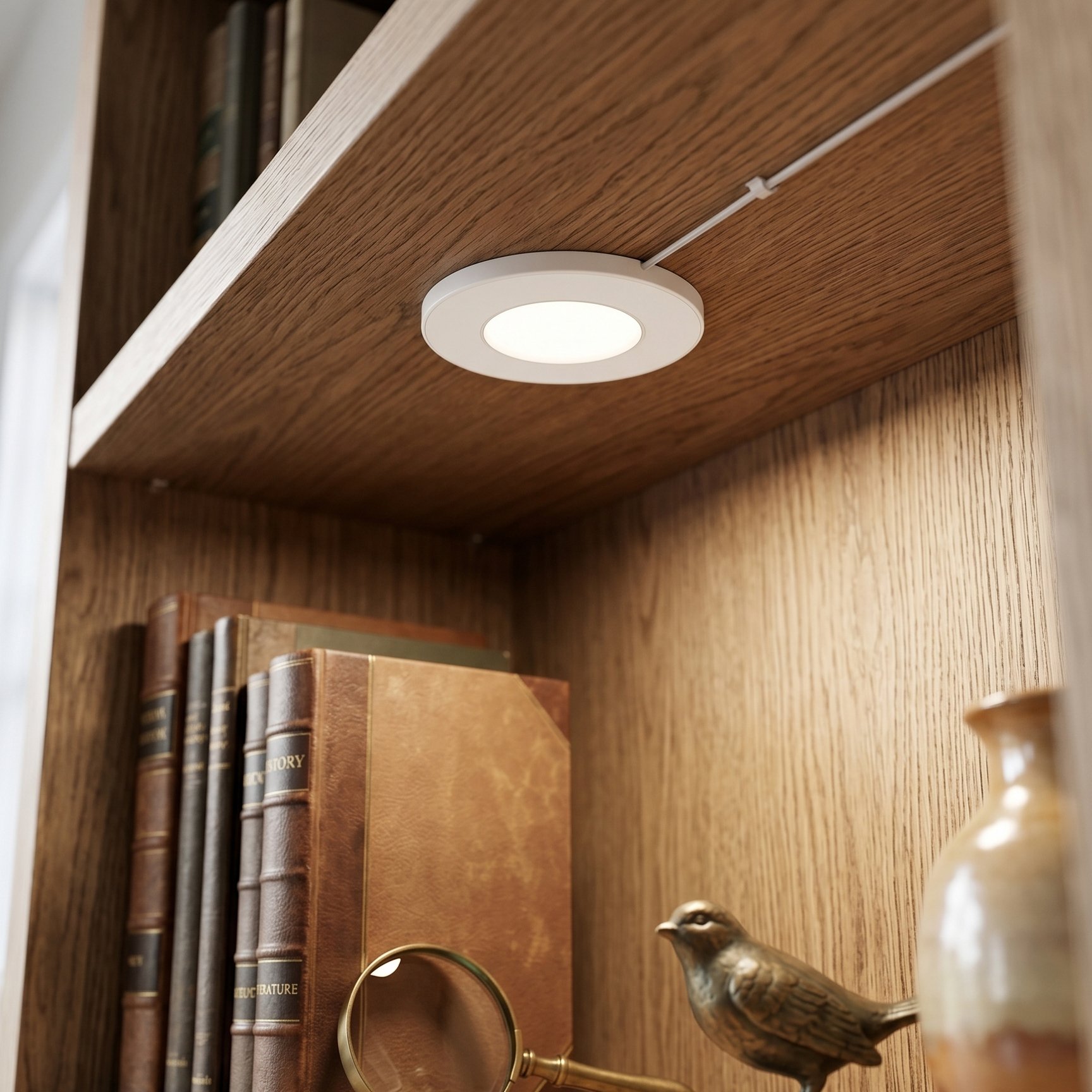

Simpilio circular CCT cabinet light
tuneCCT cabinet lights

Adjustable White Puck Lighting for Cabinet Interiors

Use circular CCT cabinet lights where the project needs adjustable white light from warm display lighting through to cooler task lighting.

Colour range2700K - 6000K
Voltage options12V / 24V
FormatWired circular light
300.07924V CCT light300.08212V CCT light

Need Help Specifying a Project?

Send your dimensions, run lengths and control requirements, then build a checked Simpilio bill of materials.

fact_checkBuild specificationsupport_agentSend dimensions
Switching and control

Match Control Behaviour to the Furniture

Specify master control when all lighting should operate together, or channel control when separate compartments need independent switching.

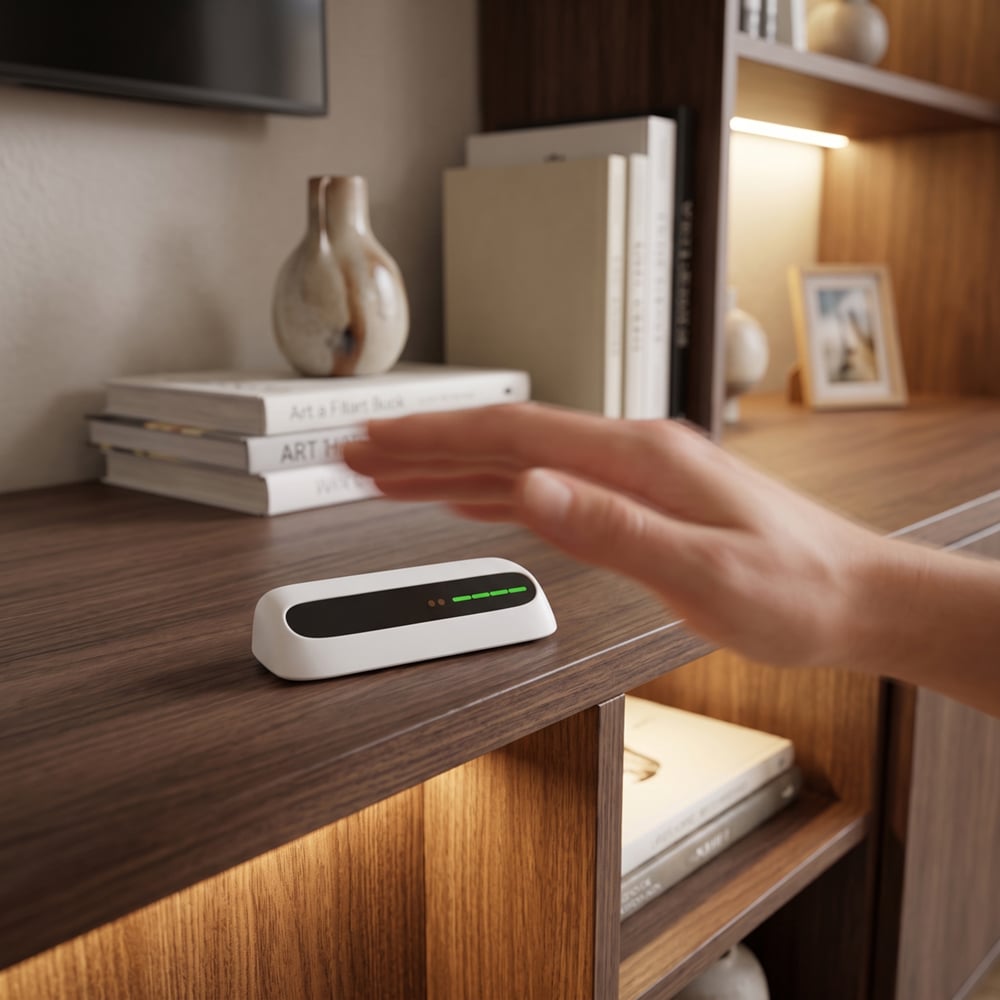

Hand wave cabinet control
waving_hand

Hand wave

Contactless switching for kitchen work areas.

300.074RF wave
Power and distribution

Match Drivers, Controls and Cabling

Calculate connected load first, then select the voltage-matched driver, control distribution and cable lengths required by the furniture layout.

Component groupAvailable productsSpecification rule
Drivers60W and 100W, 12V or 24V
300.05160W 24V300.052100W 24V300.05360W 12V300.054100W 12V
Match voltage and retain sensible load headroom.
Mains connectionUK power cord for drivers
300.050UK Power Cord
One mains lead is required for each driver.
Wired distributionMaster or channel power splitters
300.055Channel splitter300.056Master splitter
Choose distribution to match the required control zones.
RF distributionSingle-colour or CCT smart splitters and receiver
300.057RF SC splitter300.058RF CCT splitter300.060RF receiver
Use with compatible RF sensors and switches.
CablingConnecting and extension cables
300.0801m connect300.0811m extend
Plan routes and accessible connection points before manufacture.
infoTrade planning note: keep drivers ventilated and accessible, confirm cable routes before final fixing, and test every zone before concealment.
Completed fitted furniture lighting project
Completed fitted furniture lighting

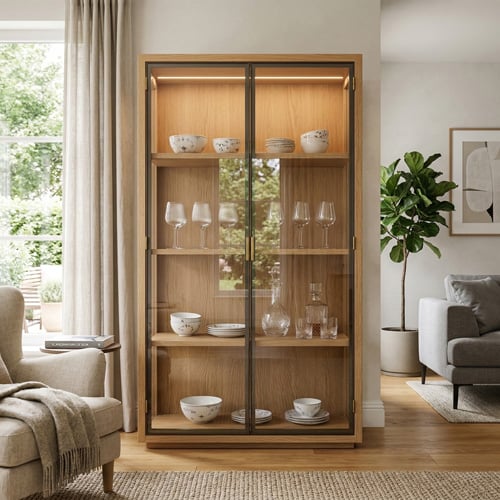

Integrated cabinet lighting detail
Integrated cabinet detail
Professional cabinet lighting installation
Professional installation finish
fact_checkPre-order checks

What You Need Before Ordering

Confirm these details before building the specification so the bill of materials is complete first time.

straightenRun LengthsFinished run lengths, cut points and reel allocation.
boltPower PositionDriver voltage, wattage allowance and access position.
sensorsControl ZonesMaster or channel control zones for each furniture area.
engineeringSimpilio trade specification

Project Specification and Order Planner

Enter the application, run lengths and controls to calculate a compatible bill of materials. Smart checks flag missing driver, control and cabling items before ordering.

Video guides

Workshop Setup and Site Checks

Use the product overview and installation guides to brief fitters, confirm the route and check the build sequence before final fixing.

smart_displayGuide 01

Overview Guide

Introduce the Simpilio cabinet lighting system, component groups and the main specification decisions.

straightenGuide 02

Installation Video for the Strips

Show cutting, positioning, cable planning and testing for COB, Neon Flex and Angle Neon strip runs.

constructionGuide 03

Profile and Strip Guide

Cover profile preparation, strip placement, diffuser fitting and final checks for a clean installed finish.

  • straightenConfirm finished run lengths before cutting strip.
  • airKeep every driver ventilated, accessible and serviceable.
  • account_treeRoute low-voltage cable before closing panels.
  • fact_checkTest switching, polarity and dimming before concealment.
  • engineeringProfessional installation is required for warranty cover.
15Year warranty

Professional Product Cover for Professionally Installed Systems

Every Simpilio product is supported by long-term cover when installed as part of a professionally specified and completed system. Keep product codes and installation records for warranty support.

verifiedAll Simpilio productsengineeringProfessional installation requiredinfoTerms and conditions apply
Technical support

Trade Specification Questions

Key answers for estimating, system design and installation planning.

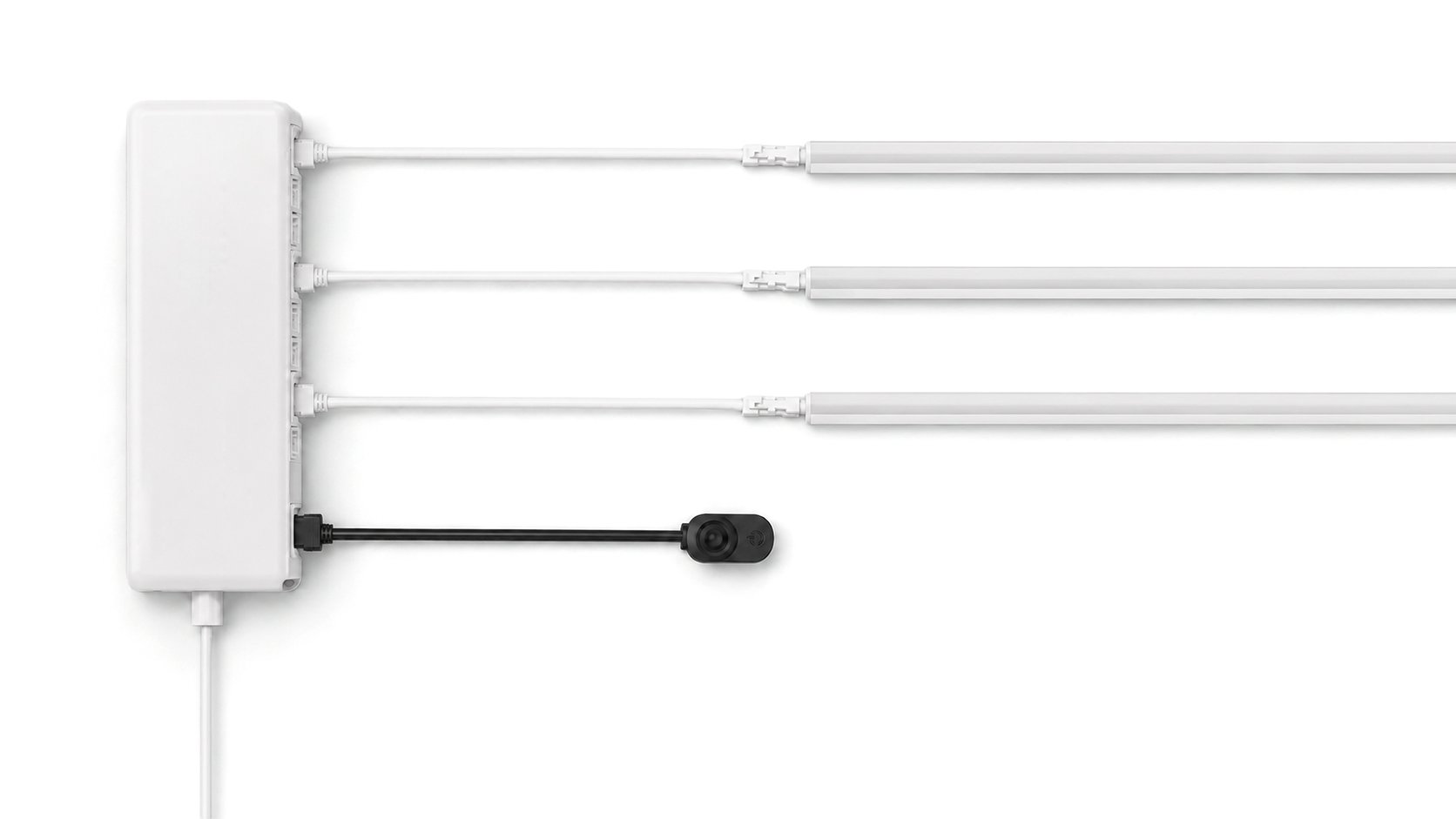

What is the difference between master and channel control?add

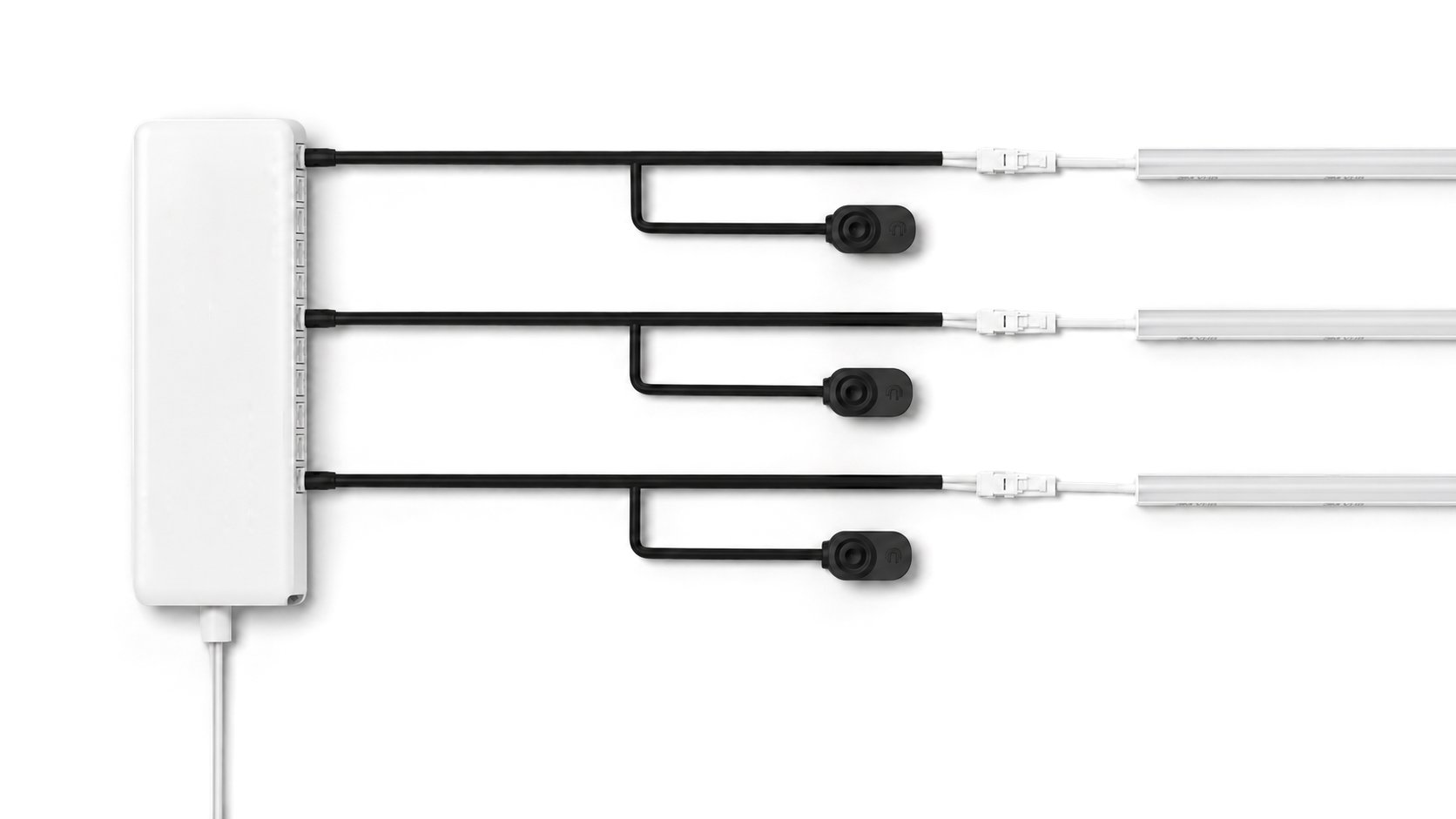

Master control switches everything connected to the driver together. Channel control operates individual outputs, allowing separate shelves or compartments to respond independently.
Should I specify 12V or 24V?add
Match the driver to the lighting voltage. Longer total runs generally suit 24V, while shorter installations can use 12V. The specification tool calculates the recommended platform.
Can strip products be cut to length?add
Yes. Cut COB strip, Neon Flex and Angle Neon only at their marked cut points, then confirm the final reel allocation before installation.
How much driver capacity should be allowed?add
Calculate the complete connected load and retain sensible headroom. Keep the selected driver and distribution products within their published load limits.
Which control suits cabinet interiors?add
Door sensors are the usual choice for cupboards, wardrobes and drawers. Use master control for the full unit or channel control for independently switched compartments.
Where should the driver be installed?add
Install the driver in a ventilated, accessible position. Confirm access, cable routes and connection locations before final furniture assembly.
Can the system be dimmed?add
Yes, when the installation uses compatible dimming controls, receivers or smart switching. Keep the driver, controller and lighting type matched as one system.
Can different Simpilio light types be mixed?add
Yes. COB strip, Neon Flex, Angle Neon and CCT puck lights can be specified on the same project when each run uses the correct voltage, driver capacity and control method.
What information is needed before ordering?add
Confirm finished run lengths, voltage, colour temperature, control type, driver position, cable routes and whether each area needs master or channel control.
What should be tested before panels are closed?add
Test polarity, switching, dimming, sensor response, cable connections and every lighting zone before shelves, back panels or access covers are finally fixed.
Trade confidence

Why Traders Choose Simpilio

Matched product codes, checked compatibility and professional support help trade teams move from estimate to installation with fewer ordering mistakes.

tag

Matched Product Codes

Product families, voltages, controls and cables are organised for trade ordering.

fact_check

Reduced Ordering Mistakes

The specification workflow helps catch missing power, control and cabling items.

bolt

12V and 24V Platforms

Match the voltage platform to each planned run.

verified

Warranty Support

Keep project records and product codes aligned for trade warranty support.

Turn Project Dimensions Into a Complete Simpilio Specification
