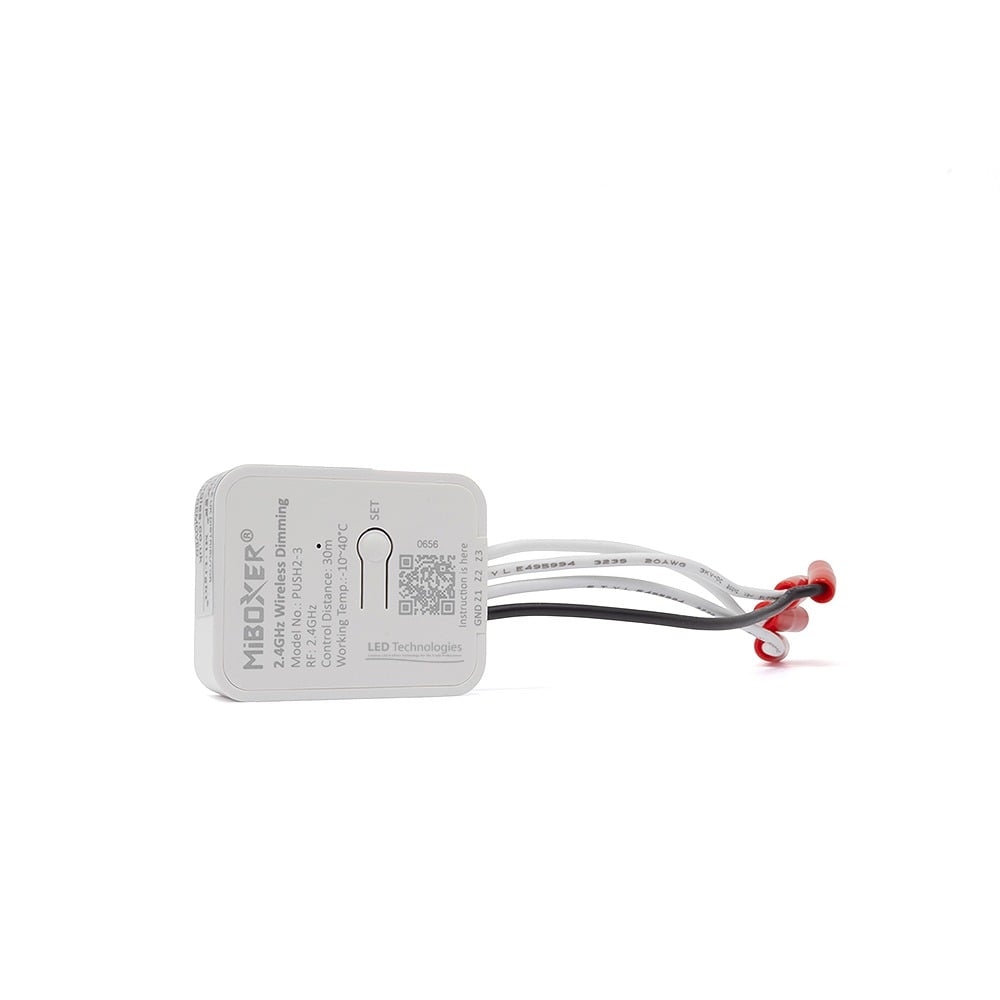

PUSH2-3 MiBoxer Single Colour 3-Zone Wireless Push Dimmer Controller (Battery)

Product Code: PUSH2-3
  • Sole UK Distributor
  • Wireless 3 Zone Push Dimming Controller
  • For Single Colour 2.4G Mi-Light / Mi-Boxer products
  • Requires a hard wired 3-gang Push Dimmer Switch
  • Battery Powered (1 x CR2302 Button Battery)
  • Wireless signal synchronisation up to 30m
  • Easy to install and pair with your products
  • Five Year Warranty
  • Compact design
  • Works with Mi-Light / Mi-Boxer 2.4G products
Battery Powered
check-circle Same day shipping available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

Product Description

This 2.4G wireless "Push Dimmer Controller" from our Mi-Light range of LED control products is a perfect solution for smooth Switching and dimming of up to three separate zones of single colour 2.4G Mi-Light / Mi-Boxer LED lighting products. Note: Although this unit is designed to be connected to a 3-gang Mi-Light / Mi-Boxer Push Dimmer Switch it can also be connected to any momentary hard wired 3-gang push dimmer switch. The controller is battery powered and is supplied with 1 x CR2032 button battery. Simply connect your 3 Gang Push switch to the corresponding terminals on the controller. The controller is just 11mm deep so it can be installed behind your push dimmer providing you have the clearance to accommodate the unit. Alternatively, it can be mounted remotely. Working on the 2.4G network system the controller forms a MESH network of products that will wirelessly synchronise together without any connecting cables. For more details of this and our other range of LED Control products, please contact our technical sales team by phone, email or Live Chat and WhatsApp on our website.

Quick Specs

  • Guarantee Period5 Years
  • IP RatingIP20 Non-Waterproof
  • Input VoltageBattery Powered

What's in the box

  • Single Colour 3-Zone Push Dimmer Controller (Battery)
  • Data Sheet / Wiring Diagram

Technical Specification

  • Product Code: PUSH2-3
  • Product Packed Gift box
  • Manufacturer Mi-Light / MiBoxer
  • LED Strip Brands Mi-Light MiBoxer
  • Product Type Controller / Receiver
  • IP Rating IP20 Non-Waterproof
  • Guarantee Period 5 Years
  • Input Voltage Battery Powered
  • Connectivity RF: 2.4G
  • Dimmable: No
  • Wireless Range Up to 30 metres
  • Max Bend Not Applicable
  • Operation Frequency Zigbee 3.0
  • Operating Temp -10 to 40ºC

Product Datasheets

  • pdf PUSH2-3 Datasheet Download

Related Products

PUSH2 MiBoxer RGB Push Dimmer
PUSH2 MiBoxer RGB+CCT 2.4G Wireless Push Dimmer (Battery)
PUSH2

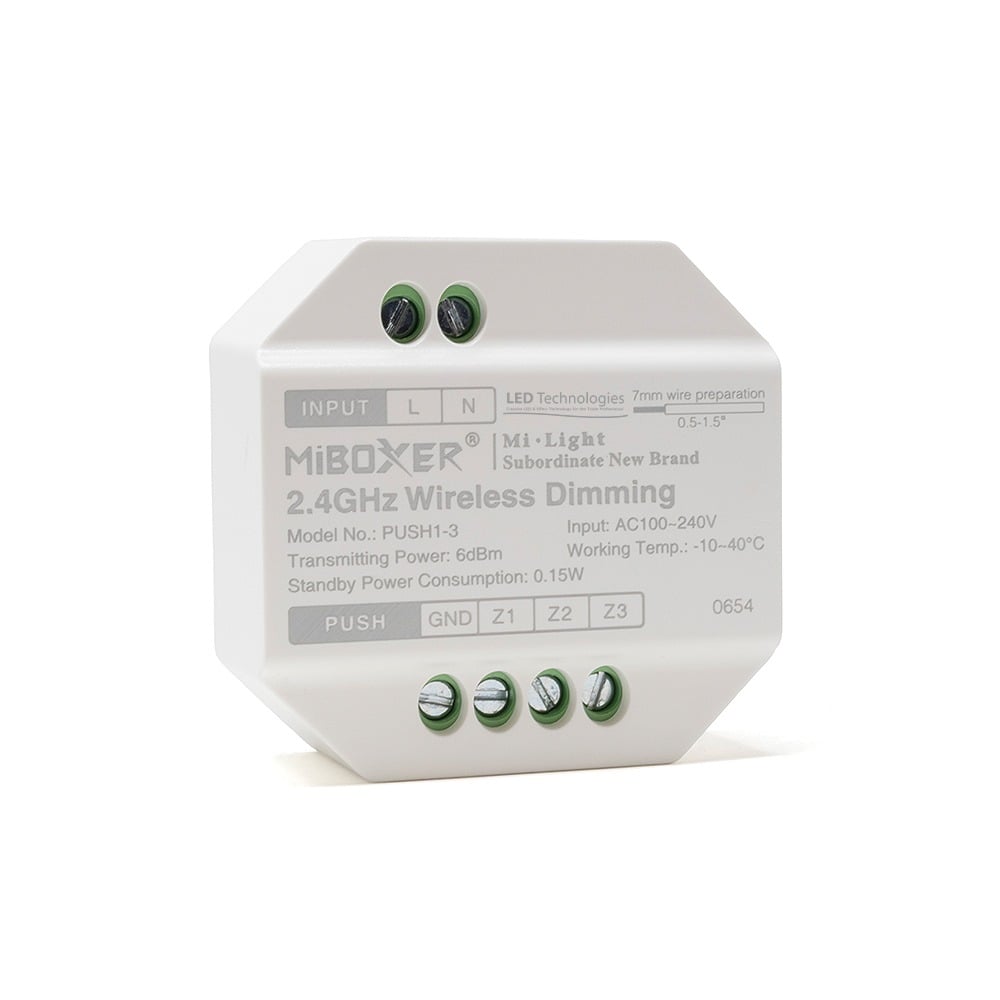

PUSH1-3 MiBoxer Single Colour Push Dimmer (AC100-240V)
PUSH1-3 MiBoxer Single Colour 3-Zone Wireless Push Dimmer Controller (AC100-240V)
PUSH1-3

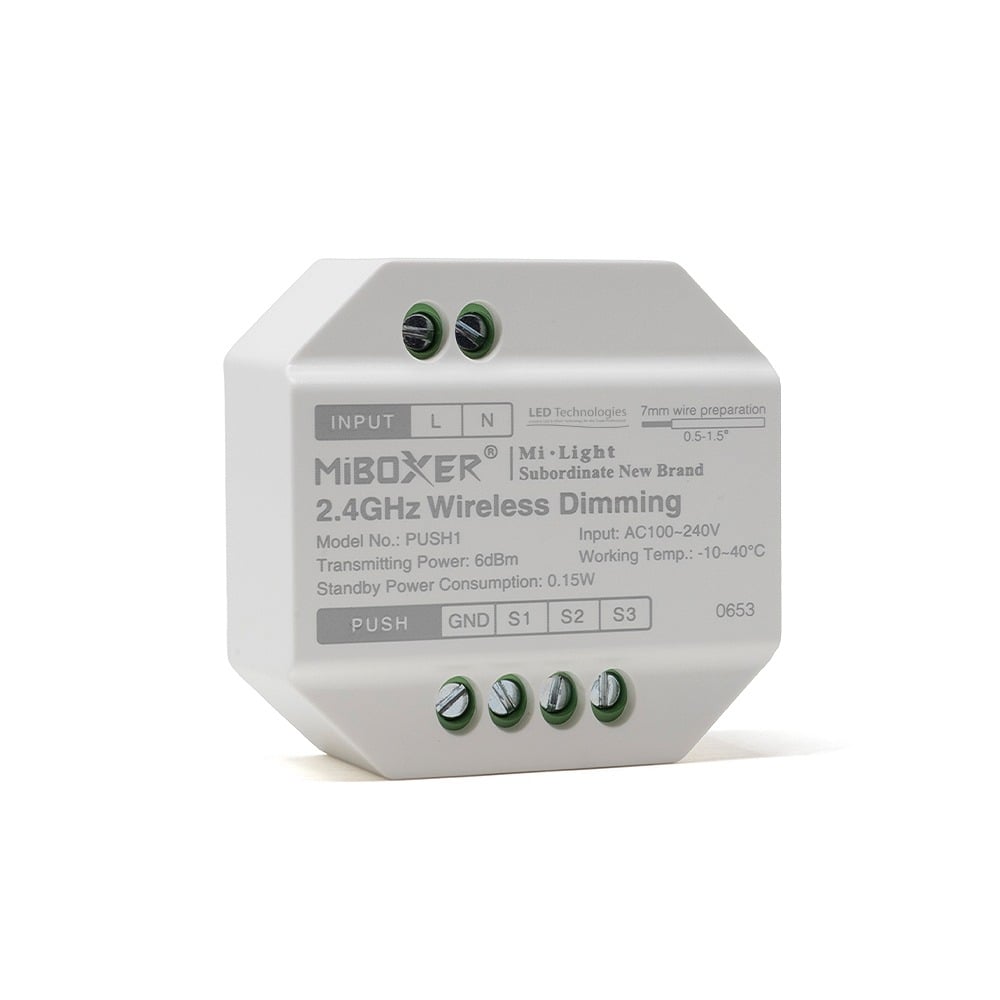

PUSH1 MiBoxer RGB Push Dimmer (AC100-240V)
