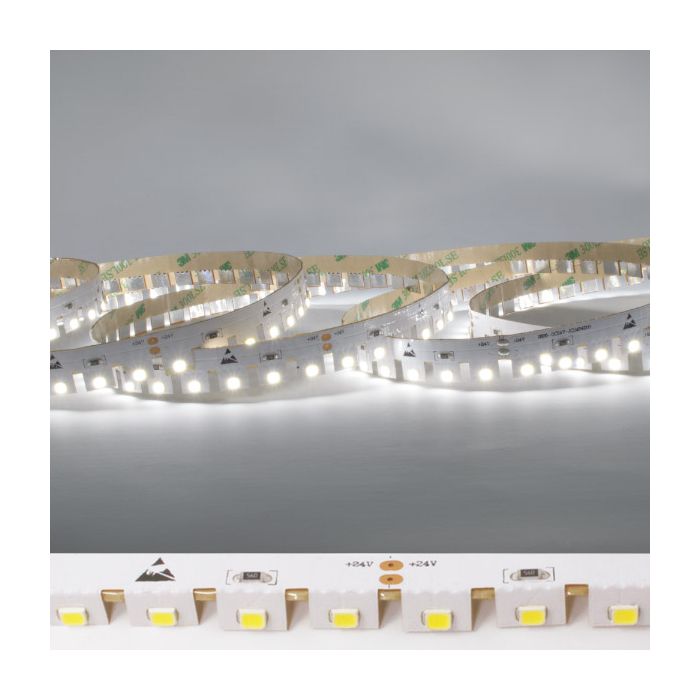

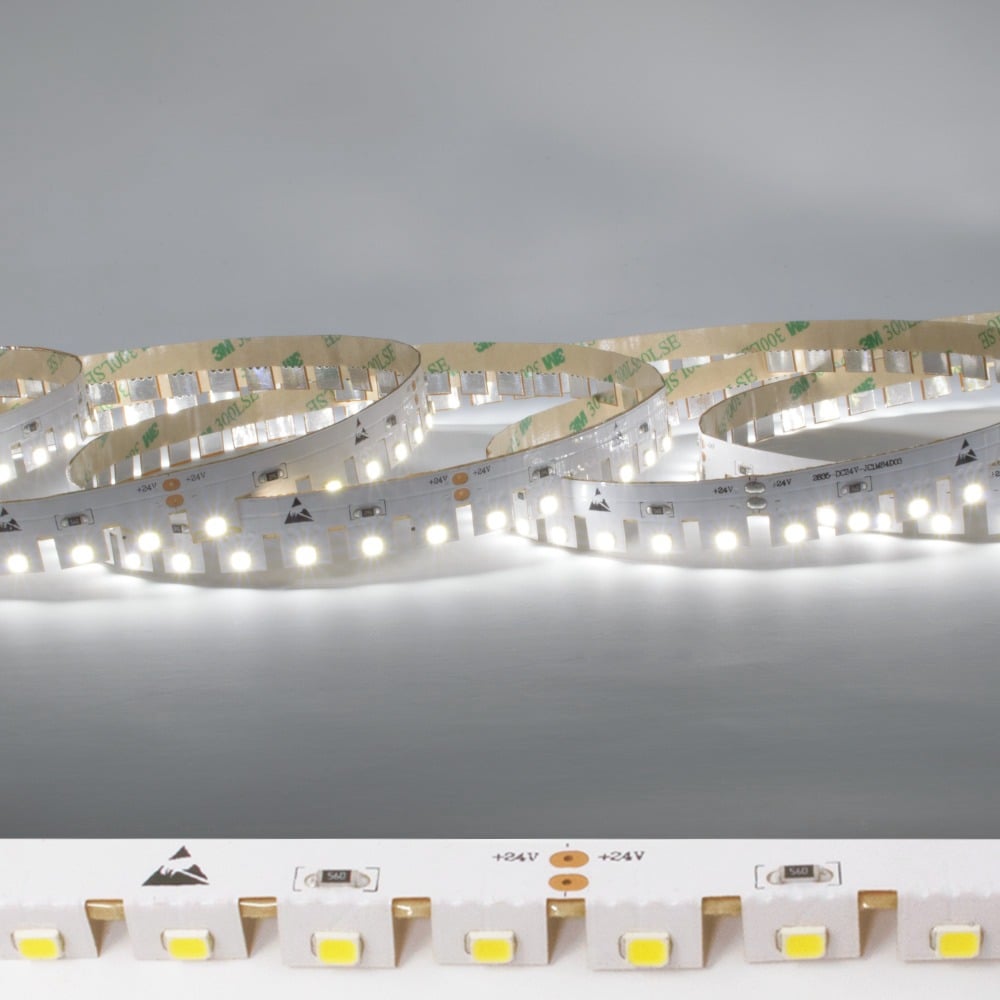

The ProFlex Angle Bendable product is a bright, flexible lighting strip featuring 84 x cool white LED's fixed to bendable tabs enabling the light to be directed as required. This is an ideal product for more specialist applications, where light needs to be focused at different angles and it can also be used to illuminate two surfaces at once if fixed onto a corner.
Angle Bendable flex can be cut every 70mm and fixed into place with the attached 3M sticky backing. With an IP20 rating, this innovative new product is designed for indoor installation purposes. To use, simply connect to a suitable 24v driver to achieve a bright, band of cool white light that can be angled as required. If more control is needed, Angle Bendable is fully dimmable and compatible with our range of dimmable 12v drivers.
In addition, dimming and control can be achieved using our RF remote controllers and we can also supply DMX Decoders so that it can be incorporated into an existing DMX 512 control system.
Specification
| Product Code: | 100.614 |
|---|---|
| Manufacturer | LED Technologies |
| Product Type | Flex |
| Colour | Cool White |
| IP Rating | IP20 Non-Waterproof |
| LED per mtr | 84 p/Mtr |
| Guarantee Period | 1 Year |
| Wattage | 84w |
| Input Power: | 24v |
| PCB Weight | 2oz |
| Weight (g) | 0.0000 |
| Size: | 14 x .02 x 5000mm Roll |
| Beam Angle: | 120 degree |
| Power Consumption: | 84w |
| Appx Lumens: | 19 lumens per led |
| CRI Rating (greater than) | CRI 80 |
| Dimmable: | Yes |
| Cut Intervals: | 70mm |
| LED QTY | 84 LEDs Per Mtr |
| LED Type: | Led chip 2835 |
| Continuous run | 5 mtr |
| Average LED life Hrs: | 50,000 |
| CE and RoHS: | Yes |
| Power Factor (greater than) | 80 |
| Equivalent to: | Not Applicable |
| Continuous Operation: | Not Applicable |
| Voltage: | 24v |
| Voltage Type | Constant Voltage |
| Base Type | Connector one end tails other |
