Plug & Play Pixel Tube Controller (ArtNet & DMX) For 360º LED Light Tubes | NEOLINEAR™

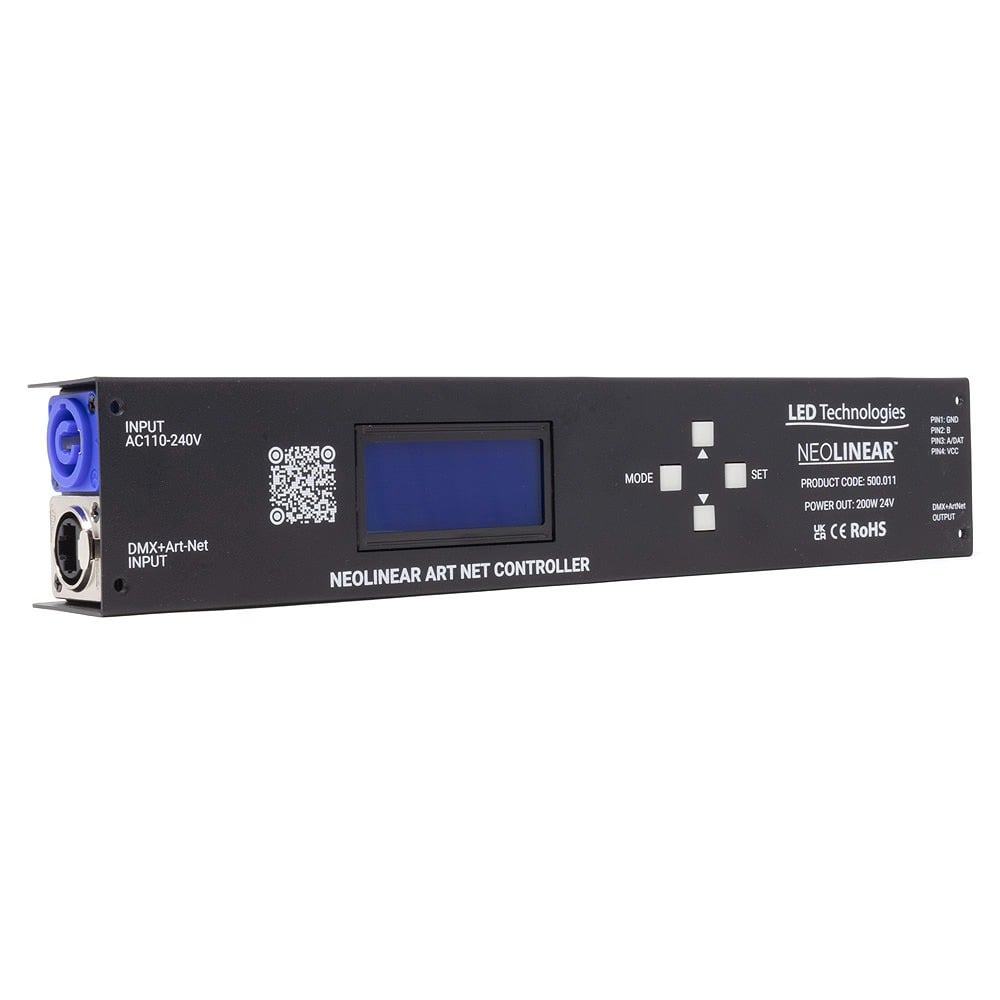

Pixel Tube Controller

This stand-alone Pixel Tube controller supports three control modes:

• Art-net
• DMX
• sACN

it can be used as a stand-alone controller and has 31 built in programs which can be selected from the on-board display and menu buttons which also can set the brightness and program speed as required. Multiple IC types are supported:

• WS2811
• SK6812
• UCS1903
• UCS8903
• UCS9812 together with DMX512

Please refer to the enclosed product data sheet for more comprehensive information.

Programming the Pixel Tube

Please refer to the enclosed product data sheet for more comprehensive information. The controller can also be connected to a computer running Madrix, Mad-Show, Resolume / Mad Mapper software or it can be connected to a DMX console, it supports Art-Net, DMX and sACN protocols. The controller has a built in SD card that enables you to program your own effects into the controller and store them on the internal SD card. If you wish to access and play these programs from an external control console, there is an interface board supplied with the controller that can be connected between your console and the controller. This will enable you to access the SD card from an external Console.

Note: The controller should be set to "SD Card Mode" to play the programmed effects using the console.

Power & Connections

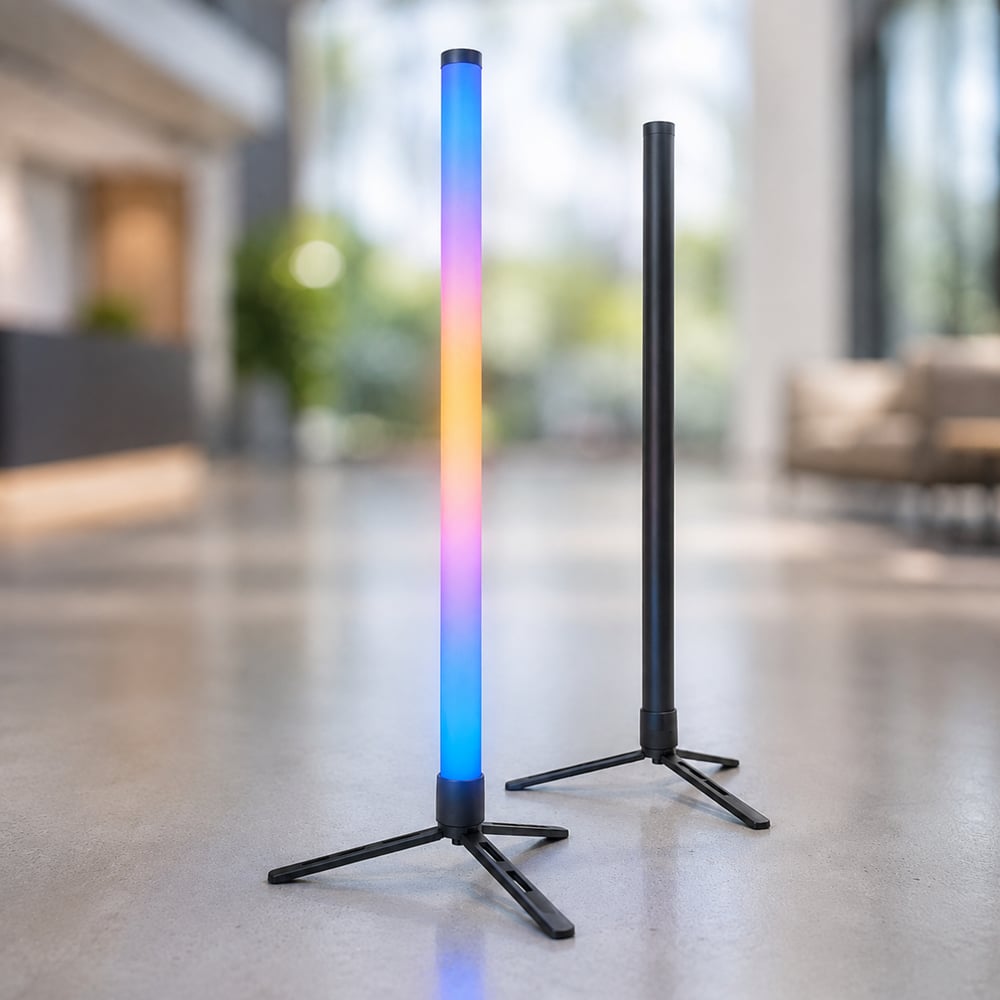

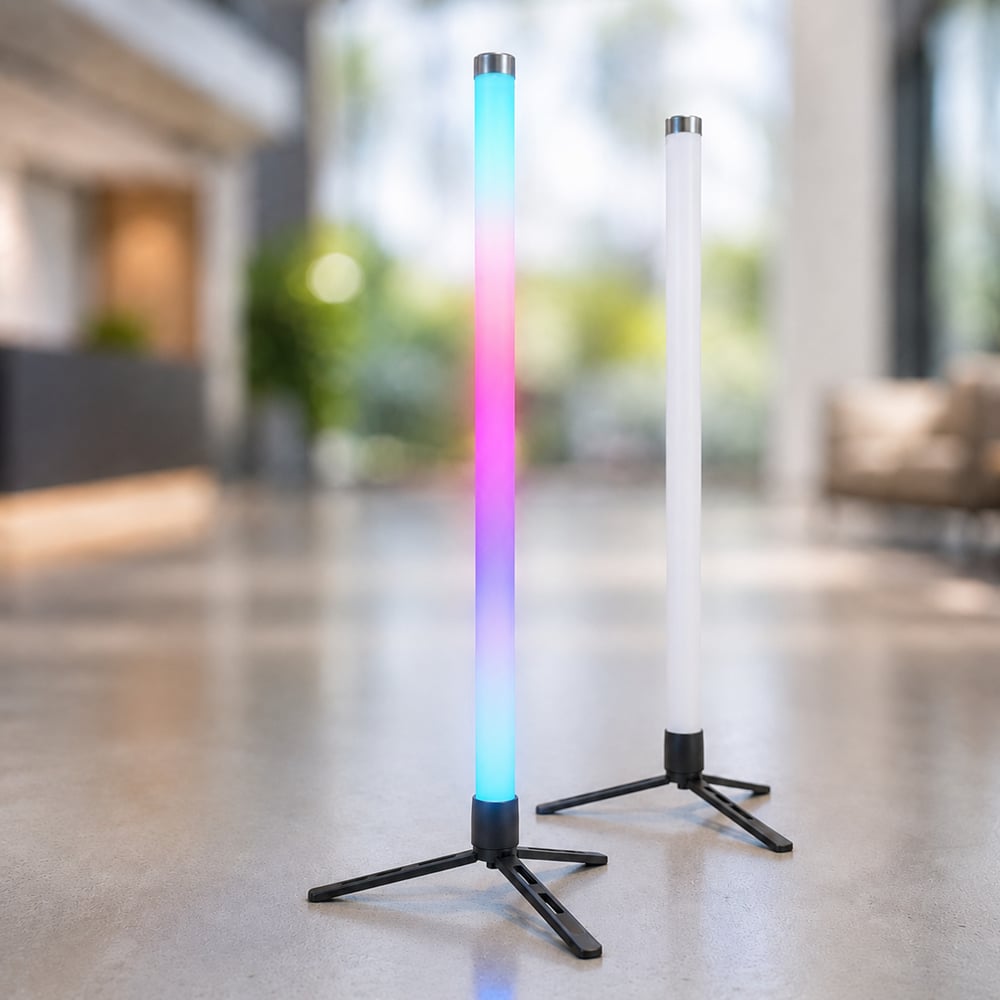

The controller is supplied with a dedicated power cord fitted with a UK plug and the input / output connections to your control software are RJ45 with an additional 4-Pin XLR output connection. The unit works with 24V DC NeoLinear 29W RGBW Pixel tubes and with its built-in 200W driver it can power up to 6 x 1m Pixel Tubes.

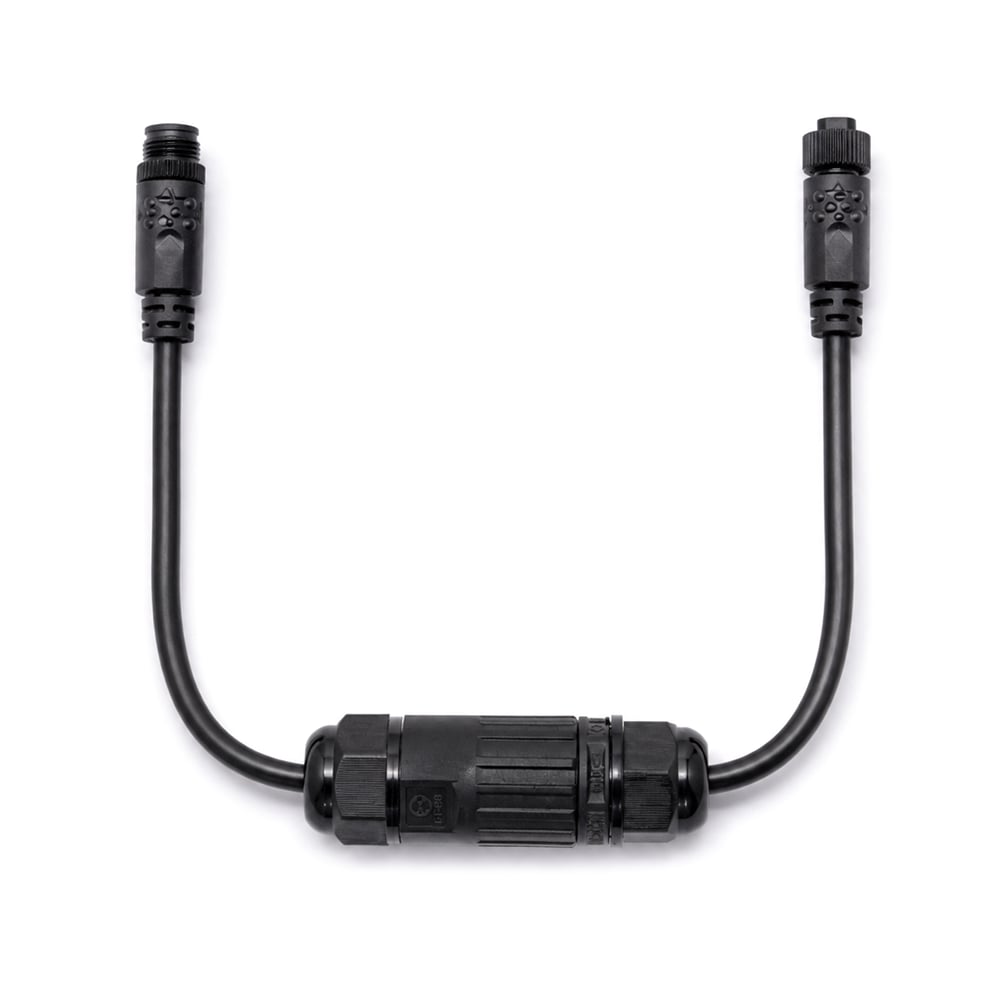

Note: For runs of link cable longer than 10m we recommend that you install an SPI Signal amplifier (500.020). For more information on our full range of LED tubes and accessories, please contact our technical sales team by phone, email or via live chat and WhatsApp on our website.
