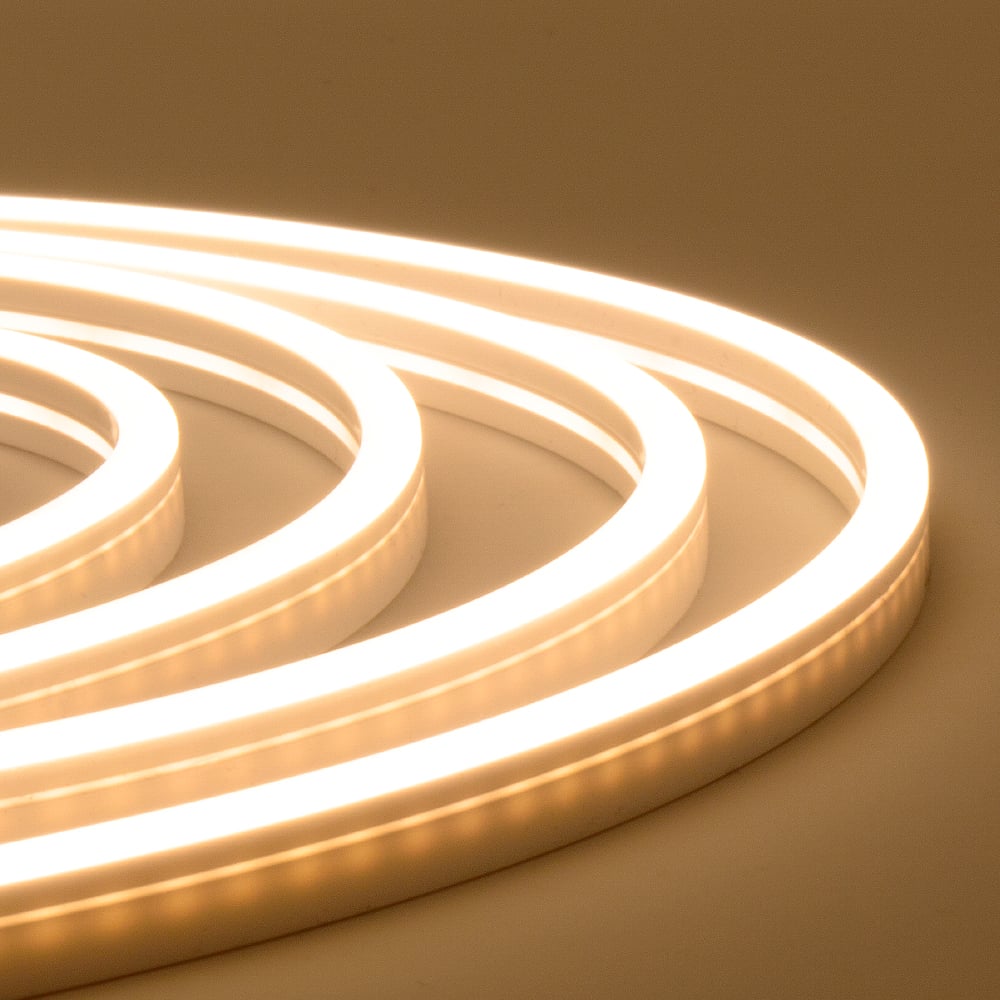

Neon Flex Mini Sideview - Warm White 2800K - 3300K | NeoLinear

Product Code: 100.939
  • IP67 Waterproof Coating
  • CRI Rating >90
  • Pixel free
  • Professional Grade
  • Built with high quality materials
  • 3 Year warranty
  • 5 Metre Roll
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

Our commercial grade Mini Neon LED Strip is a low voltage, compact, highly flexible, Pixel free, Linear lighting solution available in either Top View, Side View & a range of colour temperatures varying from 2200K to 6000K.

NeoLinear Top View Mini is ideal for projects such as highlighting stage edging, steps, bar fronts or other such applications where the product has to flex up and down on itself.

Widely used for commercial applications to create accent lighting for projects such as TV Studios, hotels, restaurants and shopping malls, both the top and side view Mini Neon Flex can be used for indoor and outdoor projects, in wet or damp environments due to its IP67 rating.

Both Mini Neon formats feature a continuous pixel free band of light and can be fixed into place with the custom made accessories including our 1m aluminium mounting profiles or the mini profile mounting clips that allow the product to be fixed into place at intervals allowing the Mini Neon to be shaped as required.

Quick Specs

This is the required amount of volts needed to power the product.


  • TV Studios
  • Exhibitions
  • Theatres
  • Kitchens
  • Bathrooms
  • Signage
  • Architectural
  • Outdoor Buildings

What's in the box?

  • 1 x 5 Metre Roll Of NeoLinear Mini
Product Code: 100.939
Product Packed Anti static Bag
Manufacturer LED Technologies
Product Type Neon Flex
Warm White
IP Rating IP67 Waterproof
LED per mtr
The amount of LED chips per 1 meter length.
240 p/Mtr
Metres 5 MTR
View Side View
Colour Temperature
Colour Temperature refers to the coolness or warmth of the light produced by the LED's indicated in degrees Kelvin.
Guarantee Period 3 Years
Wattage 30w
Current 250mA/M
Input Voltage
This is the required amount of volts needed to power the product.
24v DC
Brightness Super High Brightness
PCB Weight 2oz
Size 4 x 8 x 5000mm Roll
Reel Length 5M
Beam Angle: 120 degree
Power Consumption: 6w
Lumens P/LED 22 - 24lm
Lumens P/Mtr 644lm
CRI Rating (greater than) CRI >90
Dimmable: Yes
Cut Intervals: 25mm
LED QTY 240 LED Per Mtr
LED Type SMD2216
Continuous run 5 mtr
Average LED life Hrs 50,000
Colour Temperature Variation IP20 No
Power Factor > Not Applicable
Wireless Range Up to 30 metres
Continuous Operation Not suitable for 24/7 continuous use
Pixelation Pixel Free
Base Type Tails
Operating Temp NA
Datasheet - 100.939 Download
