Architectural LED profile systemMODULARLITE.
Precision engineering. Seamless integration.
An aluminium LED profile system that turns individual lengths into striking lines, corners and grids of light. Designed around your space.
01 / The system
One system.
Your signature.
ModularLite brings the profile, diffuser and connecting pieces into one coordinated range. Start with a straight aluminium channel, add the connections your layout needs, then choose the LED strip to create the light you want.
Freedom to connect
Build straight runs, turn corners and create intersections with dedicated inline, L, T and X connectors.
A considered finish
A square aluminium housing and diffuser give your LED strip a defined architectural form and help soften the light.
Made to fit together
Align profile sections with Allen-key link connectors. Surface mount the system or add a suspension kit.
Your choice of light
Accommodates LED strips up to 20mm wide, so you can select the colour temperature and output for your project.
02 / Application inspiration
Light that belongs
to the architecture.
Define a meeting space. Frame a display. Make an entrance. Create a layout that works with the room, from a single suspended line to a statement ceiling.
Make an entrance.
Turn open ceiling space into a memorable architectural feature.
A sharper workspace.
Give desks and meeting tables a clean, focused line of light.
Set the atmosphere.
Frame displays and define dining spaces with deliberate lines.
Give retail a clear rhythm.
Connected ceiling grids bring structure to large, open interiors.
Follow the room.
Perimeter lines echo the architecture and define the space.
Make a statement overhead.
Combine geometric forms for a distinctive shared space.
From perimeter lighting to connected ceiling grids. One coordinated visual language.
Find the pieces for your layout03 / Profiles & connectors
Start with a line.
Take it anywhere.
Choose your straight profile, then shape the layout with purpose-made connectors. Every piece has a clear role in the finished design.
35 × 35mm cross-section

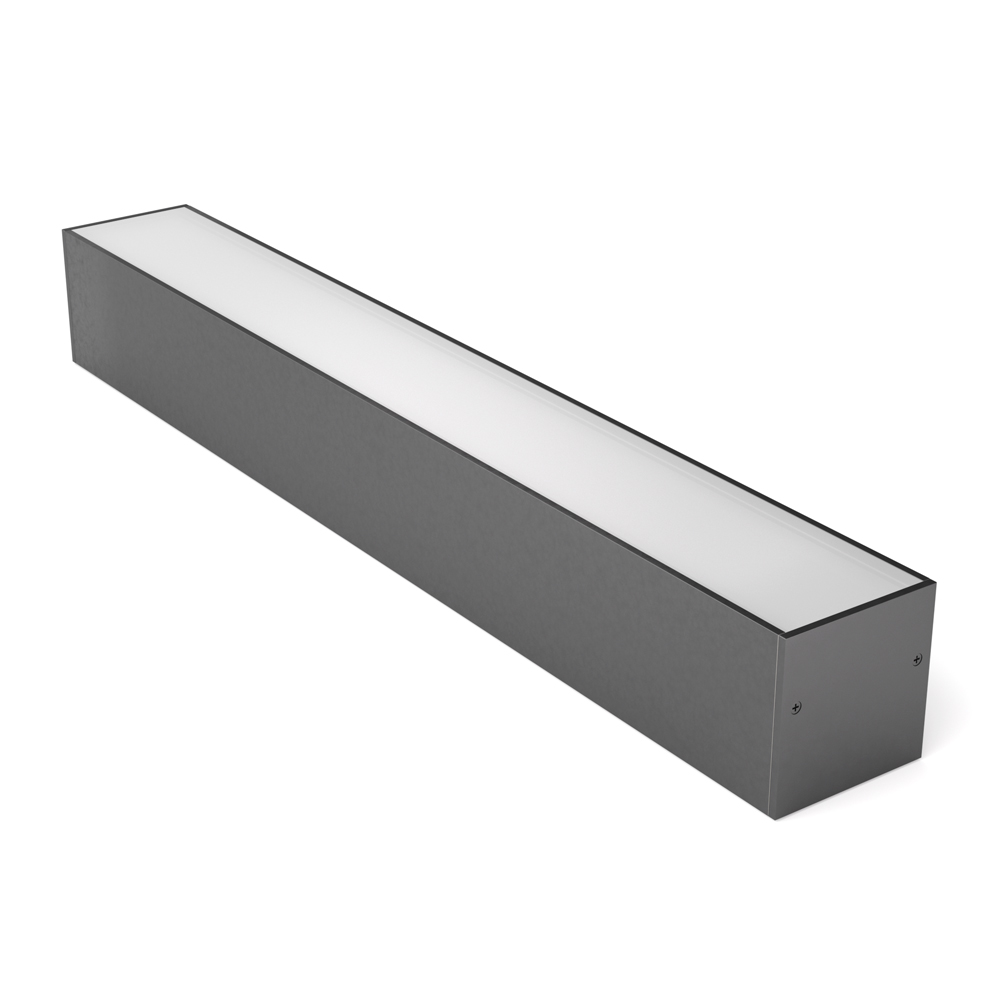

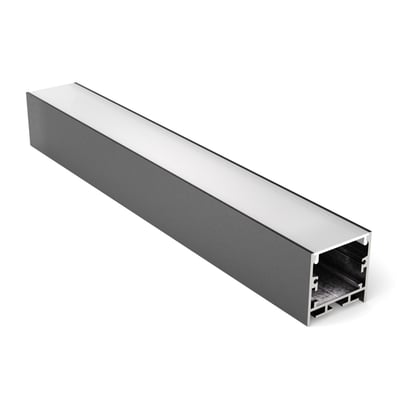

35 × 35mm LED profile
The foundation of your design. Use a single length for a clean linear feature, or connect multiple sections to create a larger architectural layout.
- Profile length
- 2m
- Section / mm
- 35 × 35
- Max. strip width
- 20mm
Includes diffuser, end caps and 4 surface mounting clips. Select your LED strip and power supply separately.
L-shape corner connector
Turn a clean 90° corner. Ideal for framing a space, outlining a perimeter or creating a rectangular feature.
T-shape 3-way connector
Branch off a main line. Join three profile directions to introduce another run into your lighting layout.
X-shape 4-way connector
Build an intersection. Connect four directions for cross-shaped features and structured ceiling grids.
Use inline link connectors to secure adjoining profile sections. Plan electrical connections, LED strip and mounting hardware to suit the complete layout.
Complete your system04 / The finishing pieces
Connect it.
Suspend it. Complete it.
The details make the difference. Add the hardware that brings your chosen profile layout together.

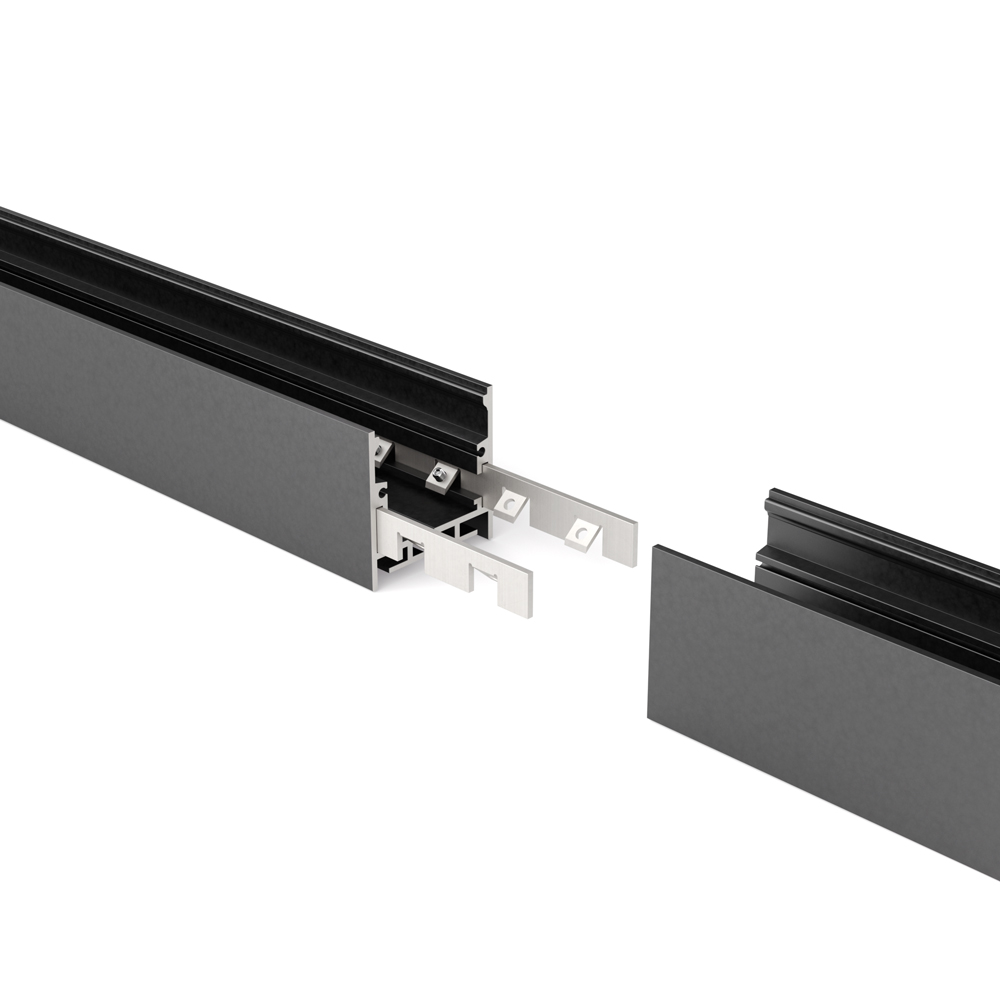

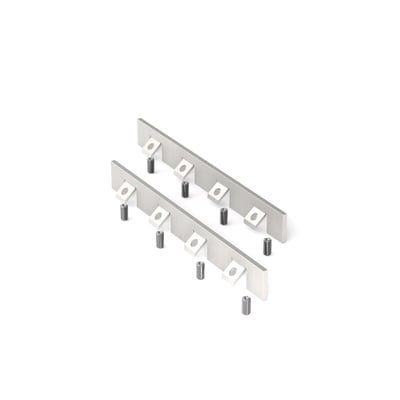

Inline link connector
Secure and align adjoining profiles to continue your run. Supplied with screws and an Allen key.

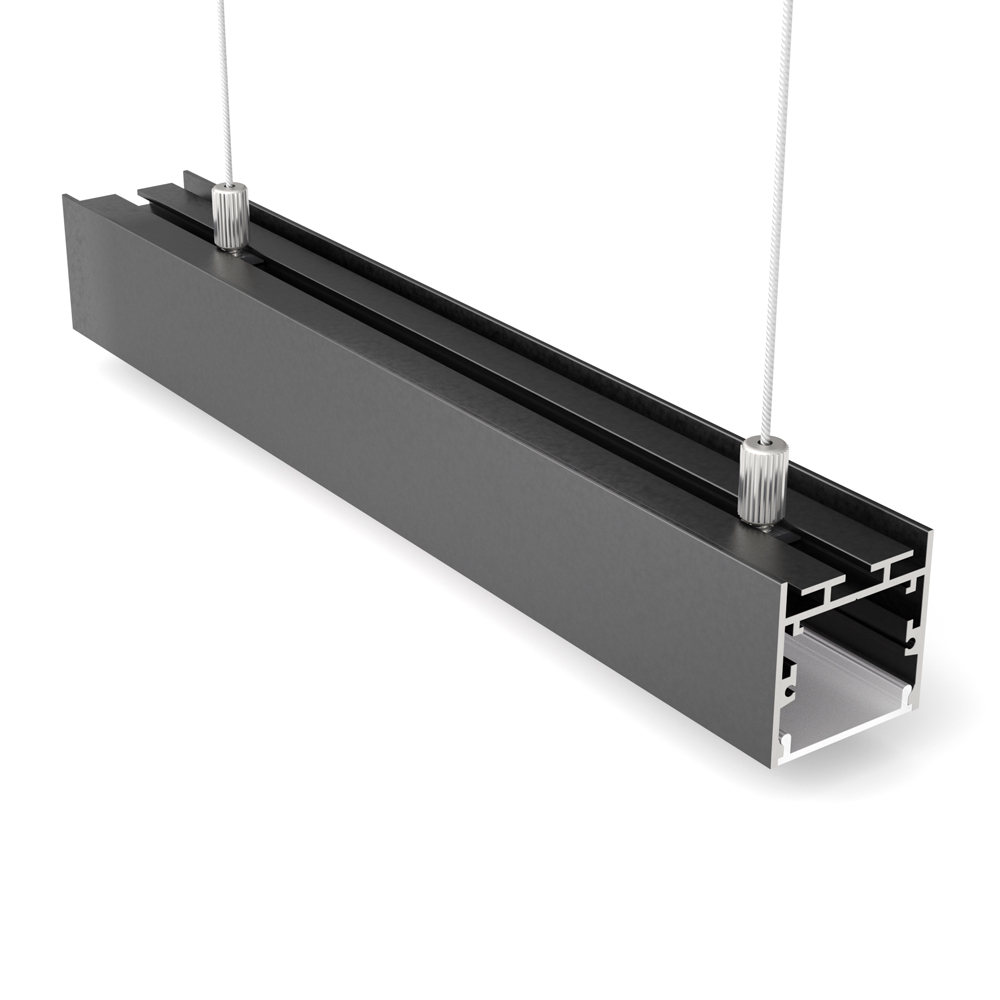

2m suspension kit
Lift your design off the surface. Suspend ModularLite profiles above workspaces, displays and shared areas.
The system in situ
Small details.
A striking whole.
See how the profile becomes part of the space. From a single suspended line to a connected ceiling feature, the same system supports a distinctive architectural finish.
A clean profile.
A defined aluminium edge gives the light a precise architectural form.
A connected composition.
Extend the idea across the ceiling with lines and intersections.
A feature in its own right.
Create a suspended grid above a display or shared area.
05 / From pieces to a system
See how it
comes together.
Define your layout
Choose straight lengths, then add L, T or X pieces wherever your design changes direction.
Join the profiles
Use inline link connectors to align and secure the adjoining sections.

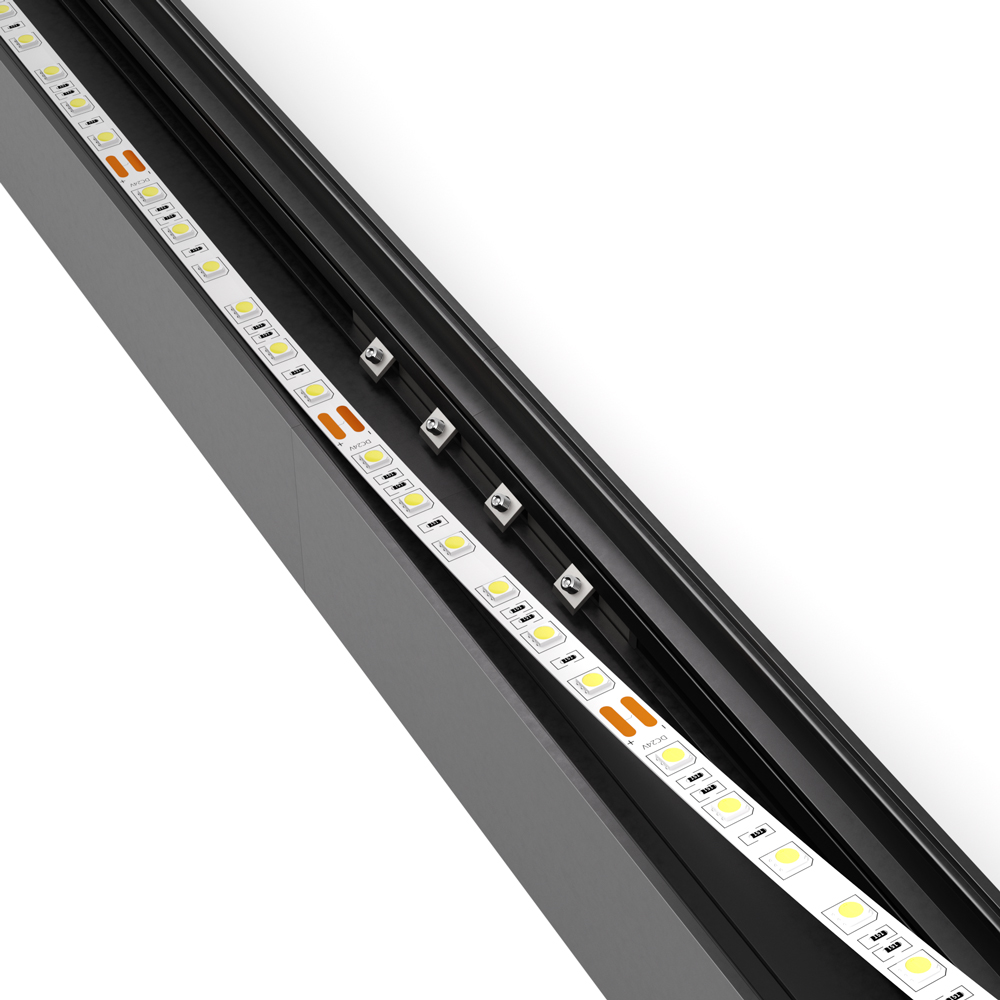

Add your LED lighting
Plan the LED strip, wiring and compatible power supply, then fit the diffuser.
Mount or suspend
Use the profile’s surface mounting clips or the dedicated suspension kit for your installation.
Assemble, wire and suspend your system.
Watch on YouTubePlanning a connected layout? Allow for the profile sections, joining hardware, suspension points and electrical components your design needs. Our team can help you choose the right combination.
Get help with your projectA few useful details
Before you
build.
Straight answers to help you specify your ModularLite LED profile system.
Talk to an LED specialistWhat is ModularLite?
ModularLite is a modular aluminium LED profile system for architectural lighting. Straight channels and matching connectors form lines, corners, branches and grids. You select the LED strip and electrical components to suit your project.
Which LED strips fit the profile?
The 35 × 35mm profile accommodates LED strips up to 20mm wide. Choose the strip’s colour temperature and output, then match the driver and controls to its electrical requirements. Browse the LED strip range or ask our team for help.
What is supplied with the 2m straight profile?
The straight profile includes a diffuser, end caps and four surface mounting clips. LED strip, driver, additional connectors and suspension kits are selected separately. See the straight profile product page for its full specification.
Which connector does my layout need?
Choose an L-shape for a 90° turn, a T-shape for a three-way branch, or an X-shape for a four-way intersection. Inline link connectors secure adjoining profile sections. These mechanical joins do not replace the electrical connections required for your LED strip.
Can I surface mount or suspend ModularLite?
Yes. The straight profile includes surface mounting clips. For a suspended installation, add the ModularLite 2m suspension kit and plan the fixing points for your layout.
