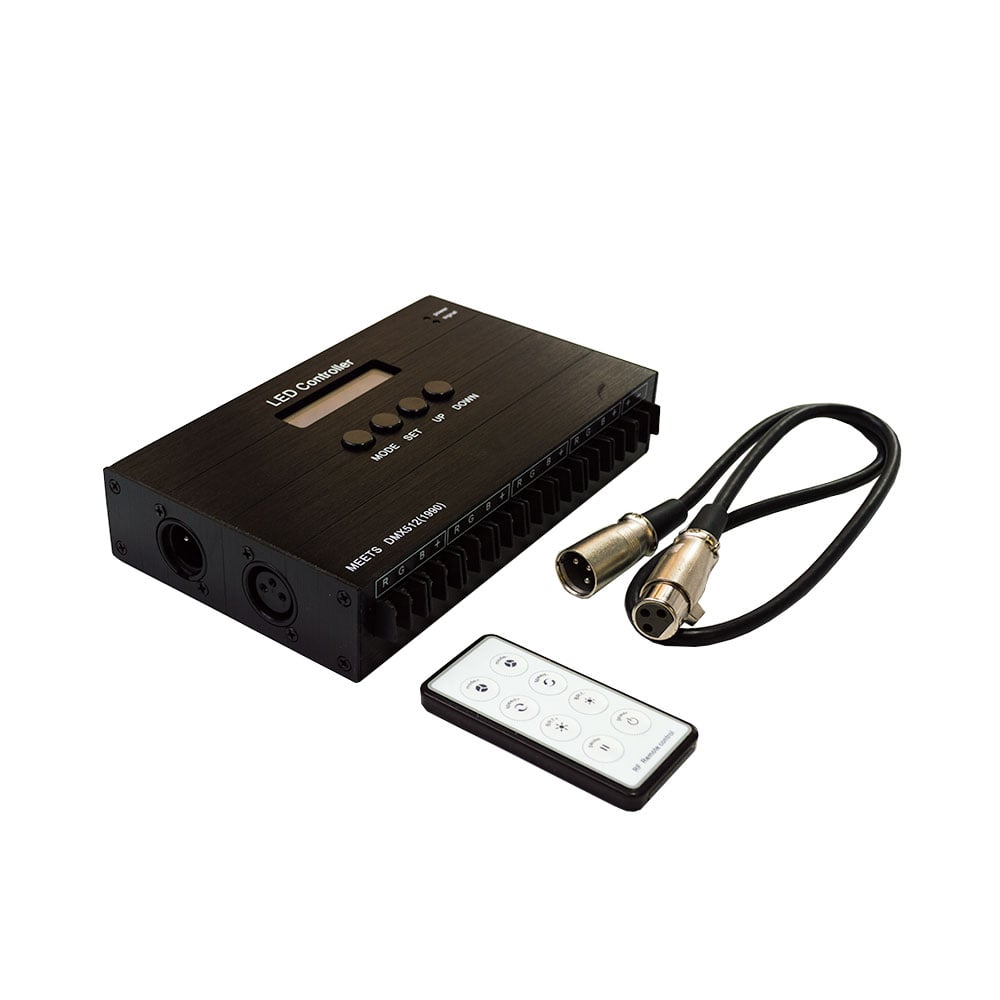

LEDTech LED RGB DMX Controller / Zoner

Product Code: 100.258
  • Digital interface
  • 4 channel zoning
  • DMX512 compliant
  • Adjustable built in programmes
12V / 24V DC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Sign In/Register to view Prices

Product Description

This superb DMX Controller / Zoner allows control over most LED Tri-Colour Products including our RGB LED Strip Lights. LED Technologies supply a wide range of LED tapes and other LED lighting devices in various single colours, adjustable white LEDs, and RGB & RGBW options. However, this device is only suitable for lights up to RGB.



Use the 3 channel DMX decoder's digital display to select the various in-built programs that can be adjusted for program speed and intensity. You can also choose one of the three DMX input modes;

  • Single DMX channel selection of built-in programs
  • Synchronised four Zones (three-channel mode)
  • Up to Four separate Zones (12 channel mode)

Connect a suitable DMX512 Control desk via the built-in 3-pin XLR port or link multiple units together through DMX In & Out XLR Connections for the larger installation.



Note: Built-in programs can be selected remotely using the included Remote Control Transmitter.

This DMX decoder with 3 channels is the perfect solution for installations that require DMX LED-controlled lighting. For example, this would be perfect for installations places such as hotels, shopping centres and any commercial location.



For more information on this product, don't hesitate to get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Decoders through our website or contact our technical sales team.

Quick Specs

  • Beam Angle:N/A
  • Guarantee Period1 Year
  • Input Voltage12V / 24V DC

Technical Specification

  • Product Code: 100.258
  • Manufacturer LED Technologies
  • Product Type Controller / Driver
  • Guarantee Period 1 Year
  • PCB Weight Not Applicable
  • Appx Lumens: Not Applicable
  • Beam Angle: N/A
  • Power Consumption: Not Applicable
  • Power Factor > 80
  • Input Voltage 12V / 24V DC
  • Size 190 x 120 x 45mm
  • Equivalent to: Not Applicable
  • Continuous Operation Not Applicable
  • Output Voltage 12V / 24V DC
  • Voltage Type Not Applicable
  • Base Type N/A
  • Dimmable: No
  • Cut Intervals: Not Applicable
  • LED Type Not Applicable

Product Datasheets

  • pdf LED (RGB) DMX Controller Zoner User Manual Download
