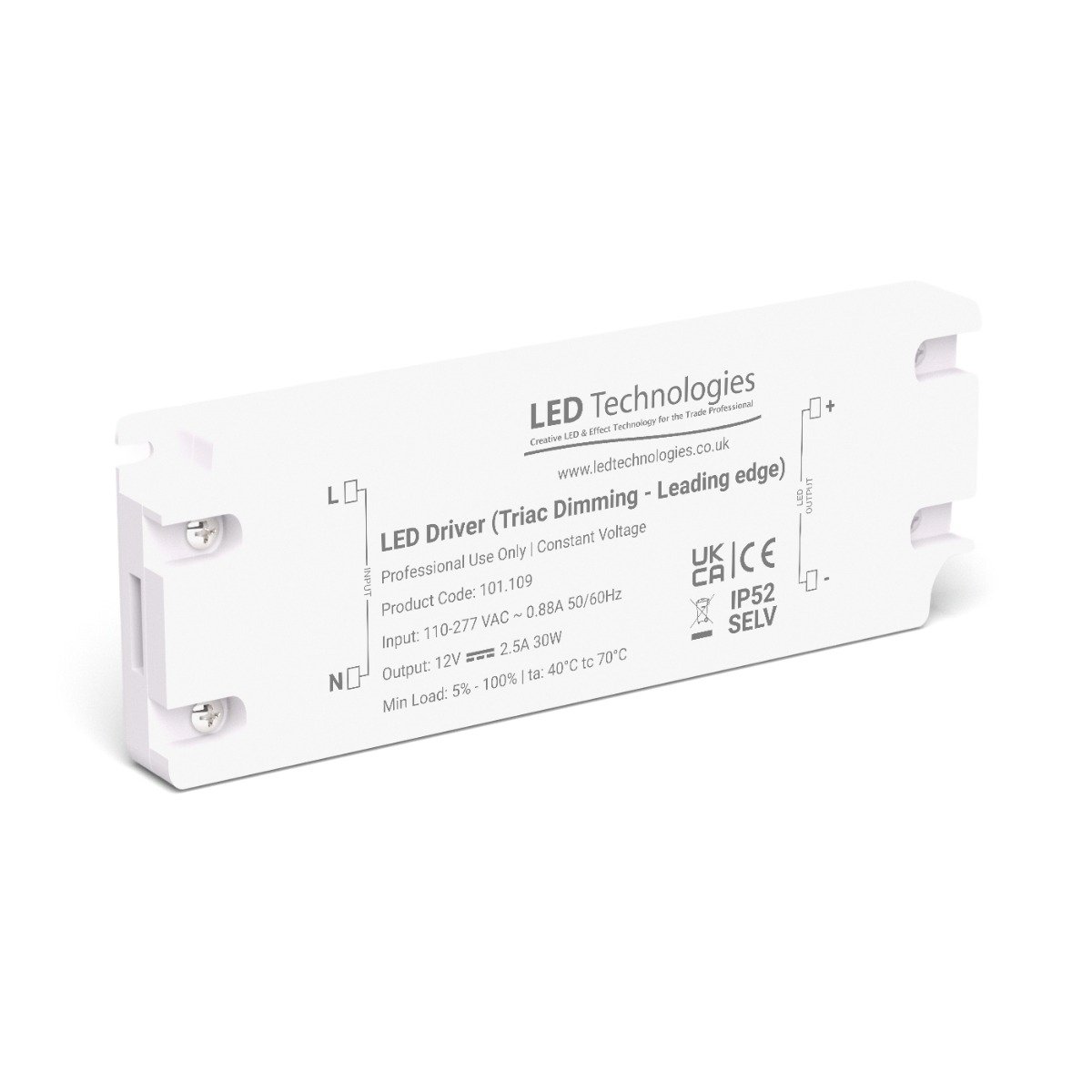

LEDTech | 30W 12V Triac Dimmable LED Driver

Product Code: 101.109
  • 30W 12V TRIAC dimmable driver
  • Constant voltage PWM TRIAC dimmer
  • PWM Frequency is 4KHz
  • IP20 Rated
  • For leading or trailing edge dimmers
  • Recommended load rating 5% to 100%
  • Smooth dimming curve
  • 110v – 277v AC input
  • Short, overload & over temp protection
  • Use dimmers 1.5 x driver value
Brushed Aluminium
110V - 277V AC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Sign In/Register to view Prices

Product Description

This superb quality TRIAC dimmable 12V LED Driver from LEDTech will switch and dim your single colour 12V LED Strips smoothly and without flicker when loaded between 5% & 100% (1.5W & 30W). The driver’s dimming output protocol is PWM.

Simply connect to your mains-powered TRIAC Dimmer for smooth, flicker-free dimming. Unlike some dimmers that have a much narrower load tolerance, you will have none of the associated dimming dropouts or flickering at low dimming levels that TRIAC dimmable drivers tend to suffer from. This will only be the case, provided the load does not exceed the 5% - 100% parameters.

Note: We recommend using a dimmer that is rated 1.5x the driver value, so for this unit please make sure that the dimmer switch used is rated at a minimum of 45W.

Made from quality components, this driver is IP20-rated so can only be used in internal environments.

For protection, the driver has built-in "Short Circuit", "Over Load" and "Over Temperature" protection. All of them recover automatically after the fault is removed or in the case of over temperature, the unit will reset when it has cooled down.

Quick Specs

  • ColourBrushed Aluminium
  • Guarantee Period2 Years
  • IP RatingIP20 Non-Waterproof
  • Input Voltage110V - 277V AC

What's in the box

  • LEDTECH 30W 12V Dimmable Driver


Technical Specification

  • Product Code: 101.109
  • Product Packed Box
  • Manufacturer LED Technologies
  • Product Type Power Supplies
  • Colour Brushed Aluminium
  • IP Rating IP20 Non-Waterproof
  • PWM Frequency 4KHz
  • Guarantee Period 2 Years
  • Wattage 30W
  • Current 2.5A
  • Input Voltage 110V - 277V AC
  • Output Voltage 12V DC
  • Connectivity PWM protocols
  • Size 158 x 54 x 20mm (L x W x H)
  • Power Consumption: 30w
  • Dimmable: Yes
  • Average LED life Hrs 30,000
  • Voltage Tolerance ±0.5V
  • Voltage Regulation ± 0.5%
  • Rated Current 2.5A
  • Rated Power 30W
  • Load Regulation ±2%
  • Voltage Range 110V - 277VAC
  • Frequency Range 47 - 63Hz
  • Power Factor PF≥0.96/230VAC
  • THD <20%
  • Efficiency 79%
  • AC Current 0.20A/200VAC
  • Inrush Current 34A,50%,104us@230VAC
  • Leakage Current <0.5mA
  • Protection Class 1
  • Working Temperature -40~+60℃
  • Working Humidity 20 - 95%RH, non-condensing
  • Storage Humidity 10 - 95%RH
  • Storage Temperature -40 - +80℃
  • Temp Coefficient ±0.03%/℃(0 - 50℃)
  • Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min
  • Safety Standards EN61347-1 EN61347-2-13 EN62493
  • Withstand Voltage I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
  • Isolation Resistance I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25℃/70%RH
  • EMC Emission EN55015 EN61000-3-2 EN61000-3-3
  • EMC Immunity EN61000-4-2,3,4,5,6,11 EN61547
  • Packing 30pcs /CTN SIZE: 290 X 270 X 160mm
  • Unit Weight 0.21Kg
  • Operating Temp NA

Product Datasheets

  • pdf Datasheet - 101.109 Download
