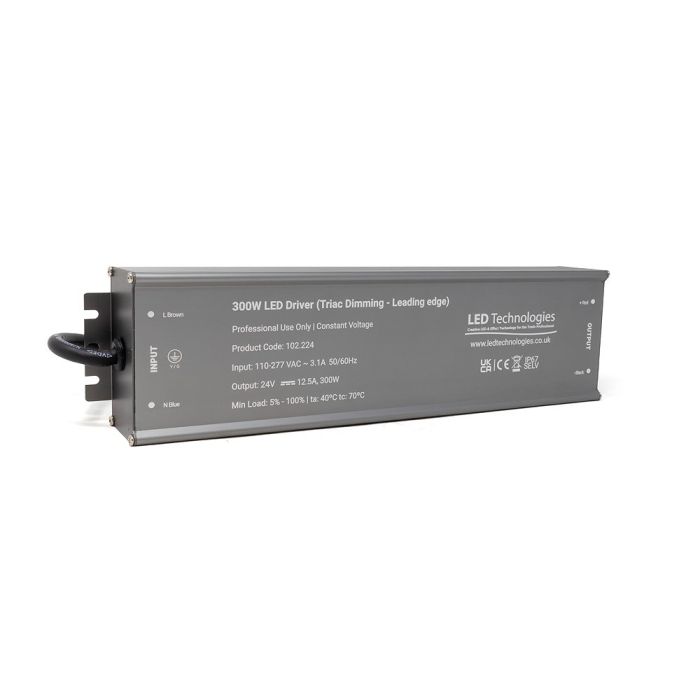

LEDTech | 300W 24V LED Driver (Triac Dimming - Leading Edge)

Product Code: 102.224
  • 300W 24V TRIAC dimmable driver
  • PWM Frequency is 4KHz
  • IP66 rated (waterproof)
  • For leading or trailing edge dimmers
  • Recommended load rating 5% to 100%
  • Smooth dimming curve
  • 110V – 277V AC input
  • Short, overload & over temp protection
  • Three Year Warranty
Brushed Aluminium
110V - 277V AC
check-circle Same day shipping available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

Product Description

This superb quality TRIAC dimmable 24V LED Driver from LEDTech will switch and dim your single colour 24V LED strips smoothly and without flicker when loaded between 5% &; 100% (10W & 300W). The driver’s dimming output protocol is PWM.

Simply connect to your mains-powered TRIAC Dimmer for smooth, flicker-free dimming. Unlike some dimmers that have a much narrower load tolerance, you will have none of the associated dimming dropouts or flickering at low dimming levels that TRIAC dimmable drivers tend to suffer from. This will only be the case, provided the load does not exceed the 5% - 100% parameters.

Made from quality components, this driver is IP67-rated so can be used in external environments (subject to the positioning restrictions with mains-powered products).

Please note that all connections to this driver should be made within an IP67 or IP68-rated junction box or Raytech Gel connector to maintain the IP rating of the driver.

For protection, the driver has built-in "Short Circuit", "Over Load" and "Over Temperature" protection. All of them recover automatically after the fault is removed or in the case of over temperature, the unit will reset when it has cooled down. For more information on this and all our other LED drivers, please contact our technical sales team by phone, email or through LIve Chat and WhatsApp on our Website

Quick Specs

  • ColourBrushed Aluminium
  • Guarantee Period3 Years
  • IP RatingIP67 Waterproof
  • Input Voltage110V - 277V AC

What's in the box

  • LEDTech | 300W 24V LED Driver (Triac Dimming - Leading Edge)

Technical Specification

  • Product Code: 102.224
  • Product Packed Box
  • Manufacturer LED Technologies
  • Product Type Power Supplies
  • Colour Brushed Aluminium
  • IP Rating IP67 Waterproof
  • Guarantee Period 3 Years
  • Wattage 300W
  • Current 6.25A
  • Input Voltage 110V - 277V AC
  • Output Voltage 24V DC
  • Size 335 x 205 x 260mm (L x W x H)
  • Dimmable: Yes
  • Voltage Tolerance ±0.5V
  • Rated Current 12.5A
  • Rated Power 300W
  • Load Regulation ±2%
  • Voltage Range 110-277VAC
  • Frequency Range 47 - 63Hz
  • Efficiency 91%
  • AC Current 3.3A
  • Leakage Current ﹤0.5mA
  • Working Temperature -40~+60℃
  • Working Humidity 20 - 90%RH, non-condensing
  • Storage Humidity 10 - 95%RH
  • Storage Temperature -40 - +80℃
  • Temp Coefficient ±0.03%/℃(0 - 50℃)
  • Vibration 10~500Hz, 2G 10min./1 cycle,period for 60min
  • Safety Standards UL8750+UL1310
  • Withstand Voltage I/P-O/P:1.88KVAC
  • Isolation Resistance I/P-O/P：100MΩ/500VDC/25℃/70%RH
  • EMC Emission FCC Part 15 B
  • Unit Weight 1.8Kg
  • Operating Temp NA

Product Datasheets

  • pdf 102.224 Datasheet Download
