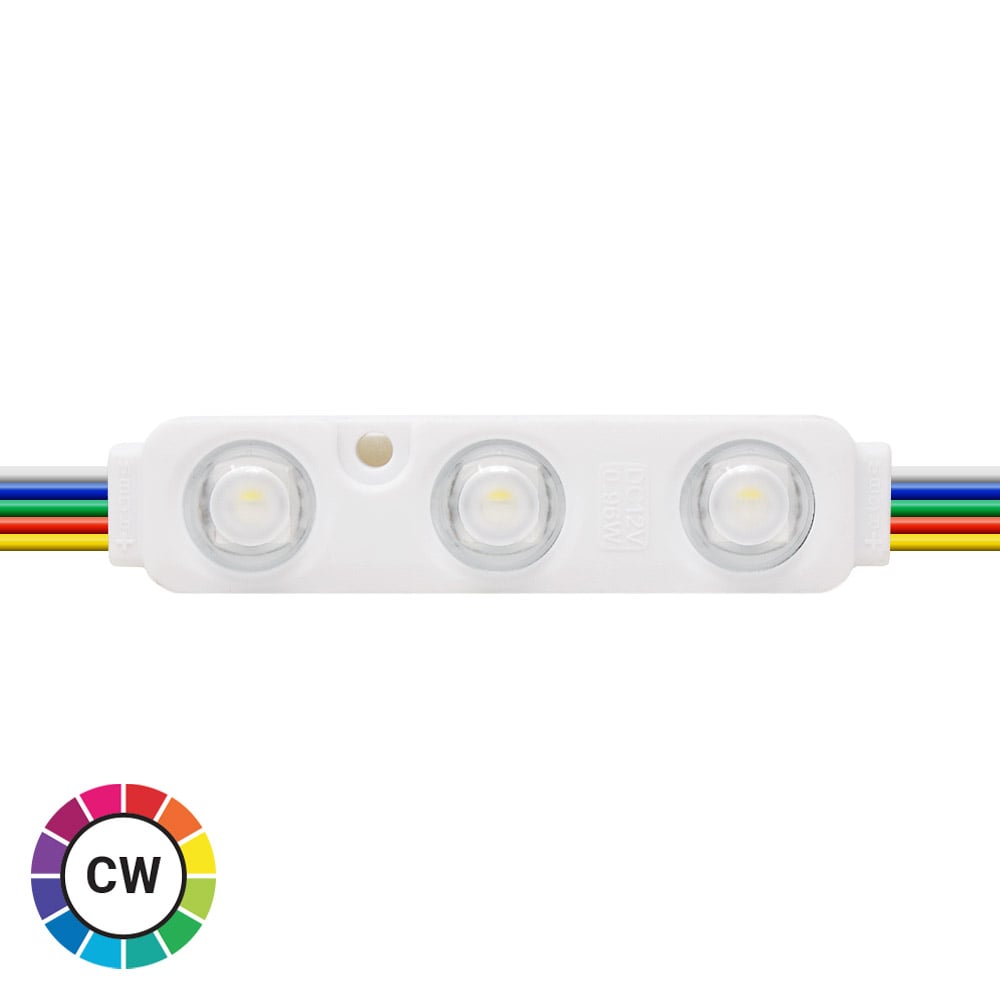

LED Module 0.96W 12V RGBW (6500K) Pack of 20

Product Code: 100.837

Triple LED Module RGBW (6500k)
4.4 Metre String Length
66.55 x 15.30 x 9.80mm In Size
IP67 Rated
133mm Distance Between Modules
142mm Tail Length
3 Year warranty
Pack of 20
Ideal for Lightboxes

View full product details and specification

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Currently in Stock

Next day delivery available*

In stock

Speak with an Expert

Product Details

Product Description

Featuring commercial grade quad colour LED Chips, these "three-pixel" RGBW LED Modules are the perfect solution for producing colour changing light boxes and with the addition of a cool white light you have the best of both worlds. The ideal depth of the lightbox to get the best effect from the modules is between 50mm and 250mm although they can be fitted to deeper boxes if required.

The modules are bright (0.96W) and are connected together with a five-core ribbon cable 133mm long. This can be cut as required enabling you to choose precisely the number of modules in your lightbox. Each string of 20 modules is 4.5m long including a 142mm tail to both ends. The modules have excellent colour consistency and are supplied with a 3m sticky backing that should be used as a first fix to position the modules for optimum effect. Once the correct placing has been achieved, we recommend hard fixing them into place using a small screw through the fixing hole on each module.

To control the colours, you will need an RGBW controller and a 12v driver to power them. Although you cannot connect more than 20 modules (one string) in one line you can connect more strings of modules to the controller by connecting them in parallel, just ensure that you have a large enough driver to power the number of modules you would like to control.

Please contact our sales team for advice and more information.

Quick Specs

Applications

TV Studios
Exhibitions
Signage
Retail Outlets
Shopping Centre
Restaurants

What's in the box?

Pack of 20 RGBW LED Modules

Technical Specification

Product Code:	100.837
Product Packed	Anti static Bag
Manufacturer	LED Technologies
Product Type	Module
Colour	RGB / Cool White
IP Rating	IP67 Waterproof
Colour Temperature Colour Temperature refers to the coolness or warmth of the light produced by the LED's indicated in degrees Kelvin.	6500K
Guarantee Period The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.	3 Years
Wattage	0.96W
Input Voltage This is the required amount of volts needed to power the product.	12V DC
PCB Weight	Not Applicable
Size	66.55 x 15.30 x 9.80mm (Module Size)
Reel Length	4.5m
Beam Angle:	160 degree
LED Spacing	133mm (Distance between modules)
Power Consumption:	0.96w
Lumens Per LED	49LM per Module

Lumens Per Metre	980LM per Chain
CRI Rating (greater than)	CRI >70
Dimmable:	Yes
Cut Intervals:	Not Applicable
LED Type	Led chip 2835
Continuous run	Max connection number 20 pcs
Average LED life Hrs	50,000
Power Factor >	70
Continuous Operation	Not Applicable
Voltage Type	Constant Voltage
Base Type	142mm Tails at both ends
