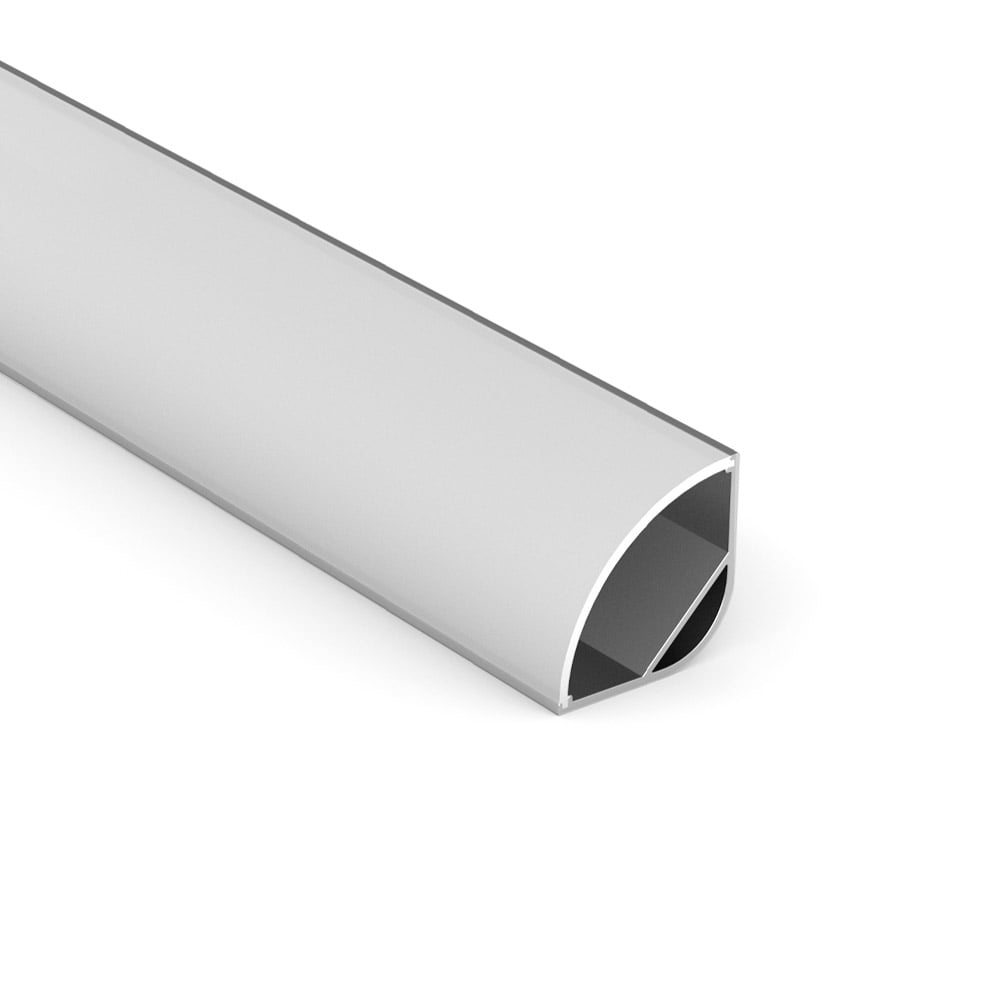

Large Corner Arc 90° LED Profile 2 MTR

Product Code: 101.162
  • Suitable for strips up to W20.2mm
  • Durable anodised aluminium
  • Acts as a heat sink, aids cooling
  • Reduces glare and softens light output
  • Sturdy housing protects LED strip
  • Clip In Diffuser
  • Easy fit end caps and diffuser
  • Sits flush with surface
IP Rating 20
2 mtr
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert

All 2 Metre Length LED Profiles have a Minimum Order Quantity of 6x2m Profiles.

Due to handling & shipping rates our 1 & 2 mtr profiles now have a shipping surcharge in addition to our standard next day service.

If you order online we will contact you to confirm your order alternatively please contact our sales office on 01260 540014 to place your order.

Speak with an Expert

Product Description

This high-quality corner aluminium LED profile is perfect for installing LED strip lights into corners. This angled LED channel has a tray angled at 45 degrees so that the LED lighting shines outwards rather than shinning up against the surface.

This LED corner profile will fit flush into a 90-degree corner and can be installed either horizontally or vertically. It is 2m and can be cut to customised lengths to fit perfectly into the space. It has a width and depth of 30mm and can hold LED tape that is no more than 20.2mm in width.



Our angled LED extrusions are made from quality anodised aluminium with a clip-in diffuser and end caps. This offers a wealth of benefits such as prolonging the life of LED strip lights. Read our "Why do I need LED profile" blog for 7 reasons why we recommend utilising LED profiles.



Corner LED profiles are vital for achieving professional and neat corner installations. They will improve the overall aesthetic of the lighting, perfect for high-end projects in both commercial and domestic establishments.



Installation

Angled extrusions can be mounted using the mounting clips provided. It can also be fixed into place by screwing through the back of the profile with a countersunk-headed screw.

Note: When installing LED strips into a profile, check that the back of the strip remains insulated from the profile. The profile is aluminium, meaning it will conduct the low-voltage power going through the tape, causing it to stop working.



For more information on this product, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Profiles through our website or contact our technical sales team.

Quick Specs

IP Rating 20
2 mtr

What's in the box?

  • 1 x Aluminium Base
  • 1 x Diffuser
  • 4 x Fixing Clips
  • 2 x End Caps
Product Code: 101.162
Product Packed Tube
Manufacturer LED Technologies
Product Type Extrusion
Colour Brushed Aluminium
IP Rating IP20 Non-Waterproof
Metres 2 MTR
Size See Schematic Diagram
Dimmable: No
Datasheet - 101.162 Download
