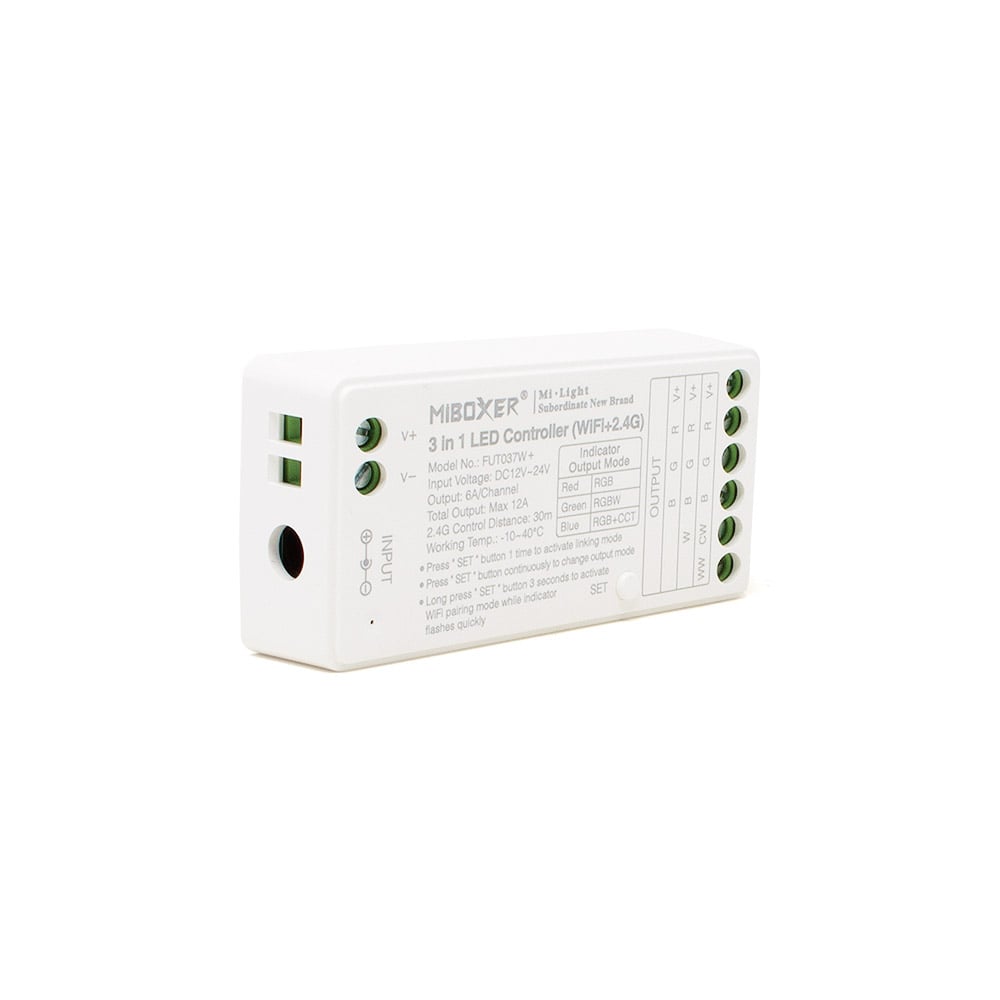

FUT037W-PLUS MiBoxer WiFi+2.4GHz 3 In 1 LED Controller

Product Code: FUT037W-PLUS

RF & Wi-Fi remote control (2.4GHz) & Push Dim
For RGB, RGBW & RGB+CCT LED strips
For Mi-Light 2.4GHz RF handsets & wall panels
Smartphone compatible (no gateway required)
Smart speaker compatible (no gateway required)
Wireless synchronisation between receivers
Adjustable PWM frequency from 250Hz to 16KHz
Compatible with the Mi-Light 100 Zone handset
Pairs easily with handsets, wall panels & gateways

View full product details and specification

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Currently in Stock

Next day delivery available*

In stock

Speak with an Expert

Product Details

Product Description

This multi-featured 3 in 1, 2.4GHz RF and Wi-Fi receiver from Mi-Light can be controlled wirelessly using a compatible 2.4GHz Mi-Light & Mi-Boxer handsets or wall panel. Pairing and unpairing the handset or wall panel to the receiver is simple. The PWM frequency of the unit can also be set at either 16KHz or 250Hz helping to reduce flicker and banding when the product that it is controlling is photographed or videoed.

This receiver also works through Wi-Fi without a gateway and can be controlled from your smart phone or some smart speakers by downloading the Tuya application.

The receiver / controller can easily be set to control three channel (RGB) four channel (RGBW) or five channel (RGB+CCT) LED Strips. The set button on the receiver and associated indicator light will glow red to indicate three channel mode, green to indicate four channel mode or blue to indicate five channel mode. An excellent feature of these products is the wireless synchronisation which enables multiple receivers to synchronise together wirelessly each forming a MESH network of products. There is no need to have all the receivers within 30m of the controller as the system forms a MESH network so the wireless signal will jump from receiver to receiver providing each unit is within 30m of the preceding receiver.

Note: Walls and other obstructions between the controller and the first receiver in the network or between each receiver may reduce this range.

These superb wireless receiver / controllers can be used for both commercial or domestic installations for 12v or 24v DC LED strips up to a maximum output of 12A.

Other control options are available and the receiver can be paired with a smartphone application or by voice control through your smart speakers. Note: An additional gateway is required for this feature.

For more information on these or any of our Mi-Light / Mi-Boxer range of products please call our technical sales team or contact us by email or live chat on our website.

Quick Specs

What's in the box?

Receiver
Sticky fixing pad
Instruction manual

Technical Specification

Product Code:	FUT037W-PLUS
Product Packed	Gift box
Manufacturer	Mi-Light / MiBoxer
Product Type	Controller / Receiver
Colour	RGB
IP Rating	IP20 Non-Waterproof
Guarantee Period The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.	5 Years
Input Voltage This is the required amount of volts needed to power the product.	12V / 24V DC
Connectivity	RF & WiFi
Size	L74.5mm x W36mm x H17mm
Dimmable:	No
Wireless Range	Up to 30 metres
Operation Frequency	WiFi Standard: IEEE 802.11b/g/n 2.4GHz
Operating Temp	-10 to 40ºC
Total Output	Max12A
Output Max	6A/Channel
Smart Synchronisation	Version 2.0
