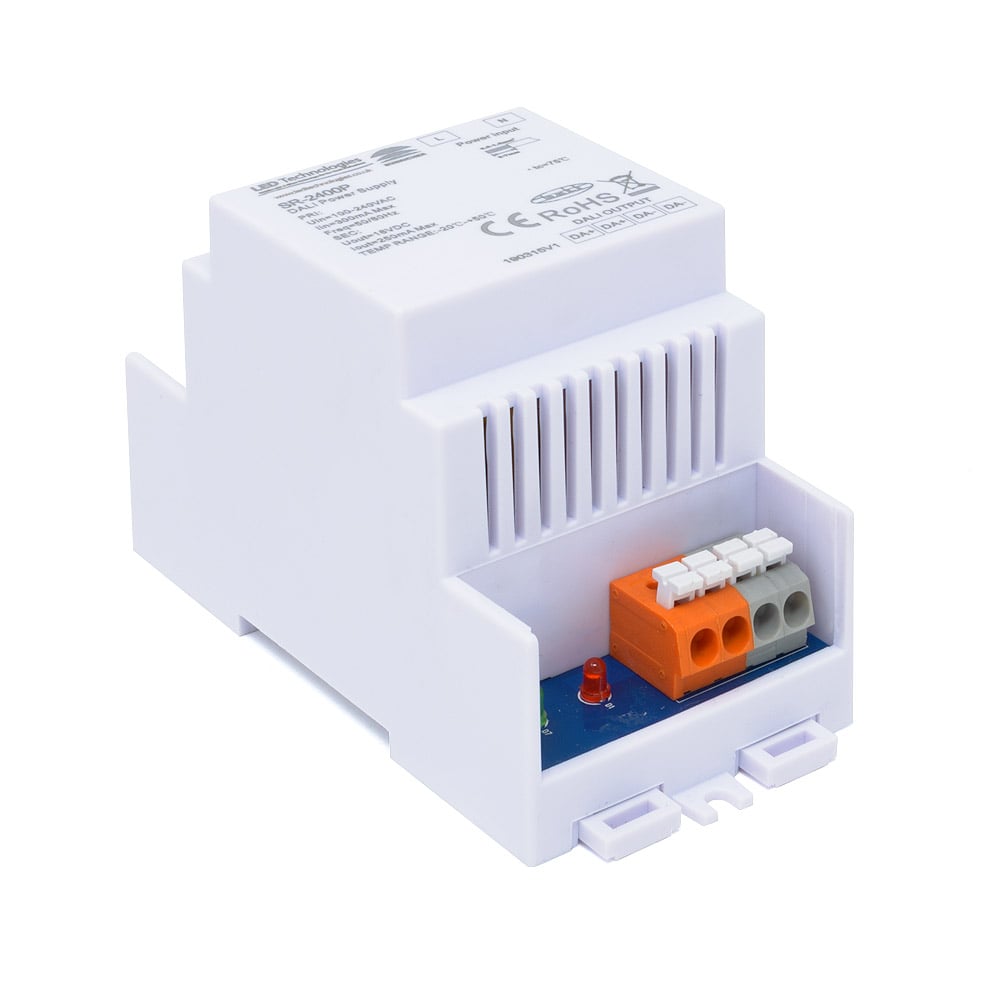

Sunricher DALI DIN Mountable DALI Bus Power Supply
- DALI bus power supply
- Works with all available DALI systems
- Supplies 16v DC to power the DALI bus
- 100v - 240v 50/60Hz AC input
- DIN rail mountable or fixing lugs
- LED status indicator
- LED error indicator
- Push terminals for ease of connection
*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.
Product Description
This DALI device is available from our extensive range of DALI lighting control systems from our Sunricher control device products. DALI is an LED lighting management system with many control options for your lighting systems.
This compact DALI bus power supply is DIN rail mountable for ease of installation. The unit also comes with fixing lugs to mount for surface mounting.
The power supply is compatible with all available DALI systems providing the required 16V DC power for the DALI bus line. It is fitted with push terminals on both the input and output sides for ease of installation. There are two LED indicator lights for working status or error status which will give a visual indication. This is useful if any faults occur in the system.
This product is IP20 rated for indoor use only and requires a mains power supply of 100v - 240v 50/60Hz AC.
LED Technologies supply a wide range of DALI devices such as DALI controllers and LED Strip lights that are suitable to be controlled by our DALI LED drivers and controllers.
Quick Specs
- ColourGrey
- Guarantee Period5 Years
- IP RatingIP20 Non-Waterproof
- Input Voltage100V - 240V AC
What's in the box
- DIN rail mountable DALI bus power supply
- Instruction manual
Technical Specification
- Product Code: SR2400P
- Product Packed Gift box
- Manufacturer LED Technologies
- LED Strip Brands Sunricher
- Product Type Power Supplies
- Colour Grey
- IP Rating IP20 Non-Waterproof
- Guarantee Period 5 Years
- Current 250mA
- Input Voltage 100V - 240V AC
- Output Voltage 16V DC
- Size 110 x 53 x 65mm
- Dimmable: No
- Voltage Type Mains Voltage
- Relative Humidity 8% to 80%
- Operating Temp -20 to +45
Product Datasheets
- Datasheet - SR-2400P Download
