Cool White (6000-6500K) LED Module 1.4W 12 x 56deg Pack of 20

Product Code: 100.715
  • 1.4w LED Module
  • 3.6 Metre String Length
  • 37 x 29 x 4mm In Size
  • IP67 Rated
  • 150mm Distance Between Modules
  • 12 x 56 Degree Beam Angle
  • Pack of 20
  • Ideal for Lightboxes
Cool White
rthrhrh
Guarantee
Voltage
This is the required amount of volts needed to power the product.
View full product details and specification

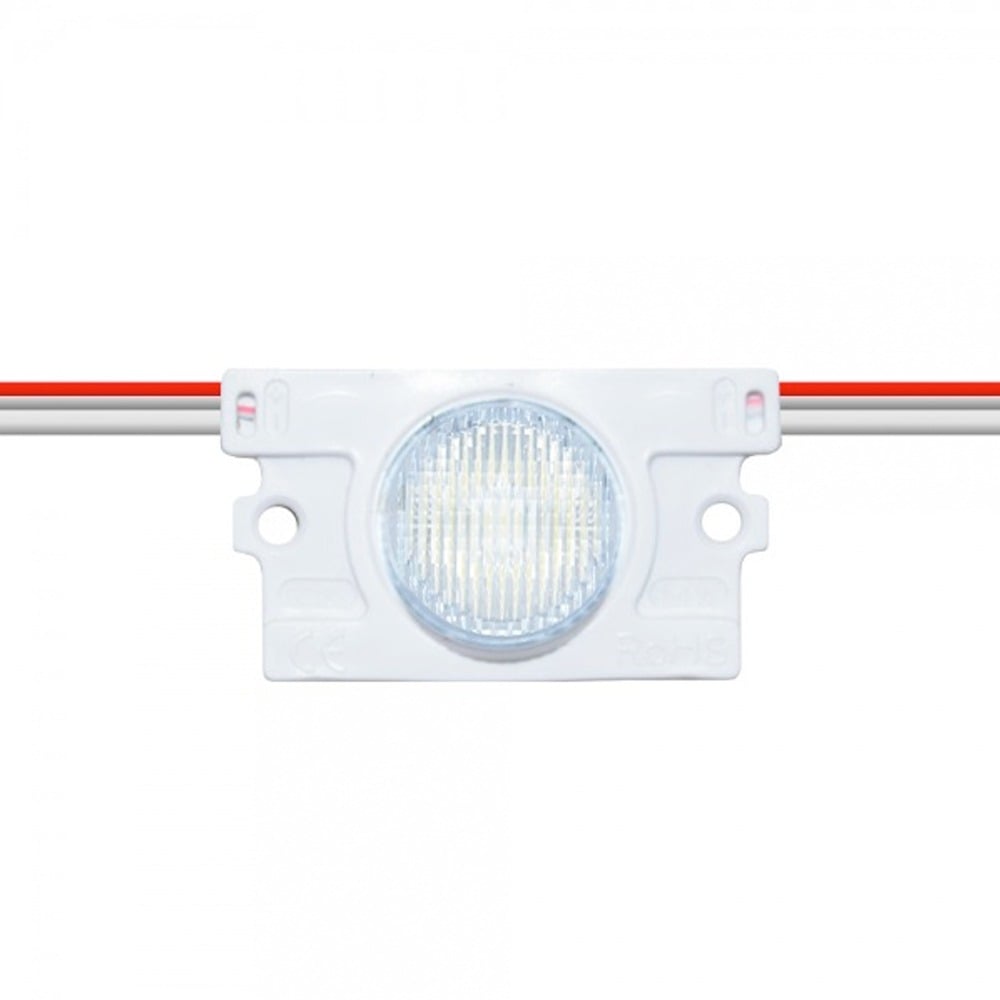

main product photo
Currently in Stock
Next day delivery available*
In stock
Speak with an Expert
Speak with an Expert

Product Description

These very bright 1.4w Injection Modules are an ideal product for use in the construction of slim light boxes and for signage where the depth of the sign box is limited.  Featuring 20 x 1.4w cool white LED's with a 12 x 56deg beam converter, these powerful modules are will create a long narrow (12deg wide) continuous band of cool white light.  The modules should be mounted around the outside of the box with the light focused towards the centre, this will create a wash effect across the back of the graphic making it possible to manufacture very slim light boxes.


The modules are fully dimmable and compatible with our range of RF remote and wall mounted controllers including our range of SunRicher products.  In addition, we stock a variety of DMX512 decoders so that our modules can be connected to a DMX system.


As the modules are IP66 rated, they are suitable for use in wet or damp environments both indoors and outdoors.

Quick Specs

Cool White
rthrhrh
CRI Rating
Guarantee
Voltage
This is the required amount of volts needed to power the product.
Wattage
Product Code: 100.715
Product Packed Anti static Bag
Manufacturer LED Technologies
Product Type Module
Colour
rthrhrh
Cool White
Colour Temperature
Colour Temperature refers to the coolness or warmth of the light produced by the LED's indicated in degrees Kelvin.
6000 - 6500K
Guarantee Period 3 Years
Wattage 1.4w
Input Voltage
This is the required amount of volts needed to power the product.
12v DC
Output Voltage 12v DC
PCB Weight Not Applicable
Size: 37 x 29 x 4mm
Power Consumption: 1.4w
Appx Lumens: 130 lumens
CRI Rating (greater than) CRI >70
Dimmable: Yes
Cut Intervals: Not Applicable
LED QTY 1 LED
LED Type: Led chip 2835
Continuous run Max connection number 20 pcs
Average LED life Hrs 50,000
Colour Temperature Variation IP20 No
Materials Not Applicable
Bin / Step MacAdam 4
Power Factor > 70
Equivalent to: Not Applicable
Continuous Operation: Not Applicable
Voltage Type Constant Voltage
Base Type Tails
Adjustable PWM Not Applicable
Datasheet - 100.715 Download
