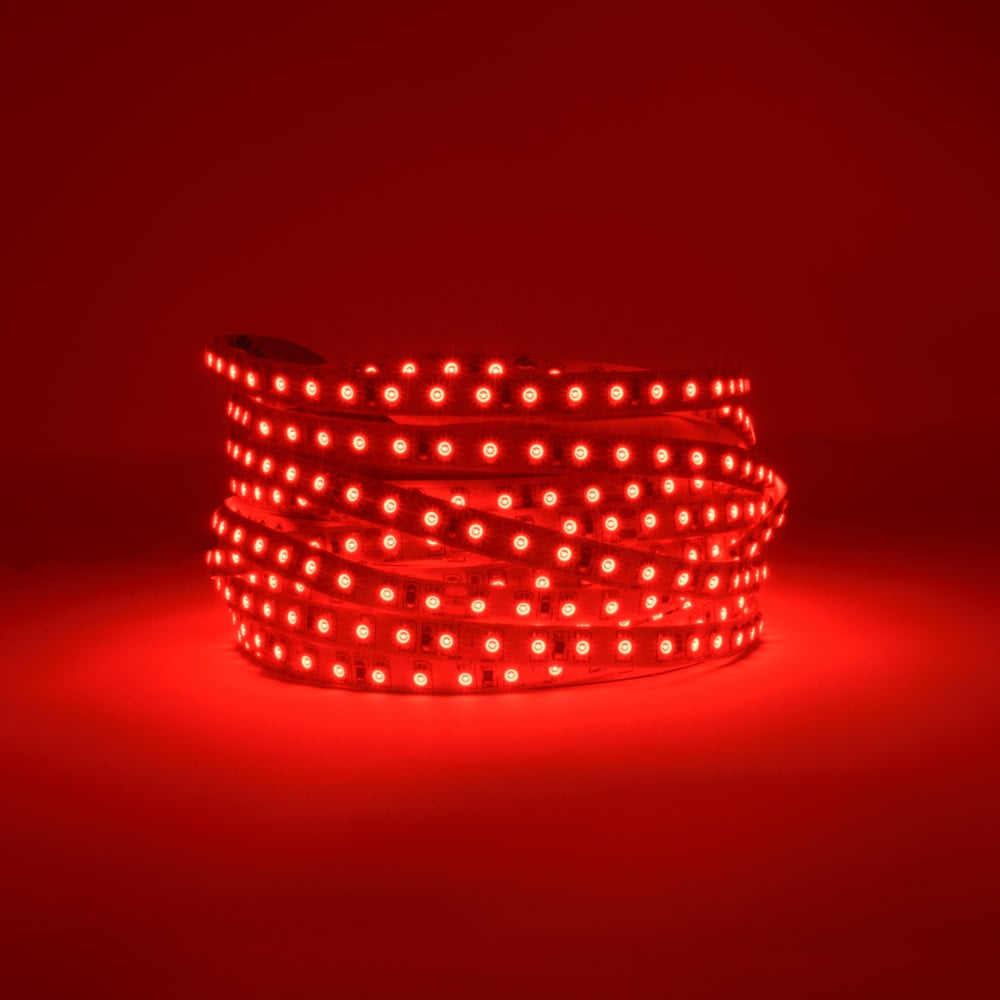

ProFlex Red 48W 24V 120 L/pmtr
- Red (620-625nm) LED Strip
- 8mm PCB Width
- 120 x 3528 LED's Per Metre
- 9.6w Per Metre
- Built with high quality materials
- 3 Year warranty
- 5 Metre Roll
- 50mm Cut Intervals
*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.
Green 505-510nm
Blue 460-470nm
Orange 600-610nm
Cool White 6000 - 6500K
Natural White 5000 - 5500K
Daylight White 4000 - 4500K
Warm White 2600 - 2800K
Warm White 3000 - 3500K
Product Description
This 24v LED Red strip light is available from our Proflex range of strip lights. This red LED tape light features a colour temperature of 620-625NM . It provides a lumen rating of 65LM per metre (1LM per LED).
Our LED red light strips have a gorgeous colouring with a 120-degree beam angle. This is perfect for adding a pop of colour to any space. They are also dimmable, ensuring that a unique brightness level can be achieved for the perfect aura.
Our red LED lighting is supplied on 5M reels, with 50mm intervals. Custom lengths of strips can be easily achieved by cutting along the marked cutting points.
Our red LED strip lights are the perfect solution for professional lighting projects. Ideal for both commercial and domestic applications, these are energy-efficient alternatives to traditional lighting methods.
Installation
These LED strips are only suitable for dry environments such as indoors due to their IP20 non-waterproof rating.
For ideas on where to install LED strip lights, read our case studies for inspiration.
The LED flexible strip lights are very easy to install. For secure mounting, ensure the surface is smooth and dust free. Then peel back the protective paper to reveal the 300LSE 3M adhesive backing of the strip light. It can then be easily stuck to the surface.
Proflex strip lights can also be installed in LED profiles that offer a wealth of benefits. This includes prolonging the life of your LED lighting.
For more information on this product and control options, please contact our sales team. Simply Call, email or use our online live chat to talk to our technical sales team.
Shop our range of LED Strip lights through our website or contact our technical sales team.
Quick Specs
- Beam Angle:120 degree
- BrightnessMedium Brightness
- ColourRed
- Guarantee Period3 Years
- IP RatingIP20 Non-Waterproof
- Input Voltage24V DC
Applications
- TV Studios
- Exhibitions
- Theatres
- Office Spaces
- Living Areas
What's in the box
- 1 x 5 Metre Roll Of Strip
- 10 x Bridging Clips for Fixing
- 1 x Installation Guide
Technical Specification
- Product Code: 100.852
- Product Packed Poly / Anti static Bag
- Manufacturer LED Technologies
- LED Strip Brands ProFlex
- Product Type LED Strip Light
- Colour Red
- IP Rating IP20 Non-Waterproof
- LEDs Per Metre 120 LEDs/m
- Metres 5 MTR
- Colour Temperature 620-625nm
- Guarantee Period 3 Years
- Wattage 48W
- Current 400mA/M
- Input Voltage 24V DC
- Brightness Medium Brightness
- PCB Weight 2oz
- Size 8 x 2.2 x 5000mm Roll
- Reel Length 5M
- Beam Angle: 120 degree
- LED Spacing 8.3mm
- Lumens Per LED 1lm
- Lumens Per Metre 65lm
- Dimmable: Yes
- Cut Intervals: 50mm
- LED Quantity 120 LED p/mtr
- LED Type Led chip 3528
- Continuous run 5 mtr
- Average LED life Hrs 10,000
- Peelable Back 300LSE 3M Adhesive Tape
- Base Type Connector one end tails other
- Strip Light Width 8mm
Product Datasheets
- Datasheet - 100.852 Download
