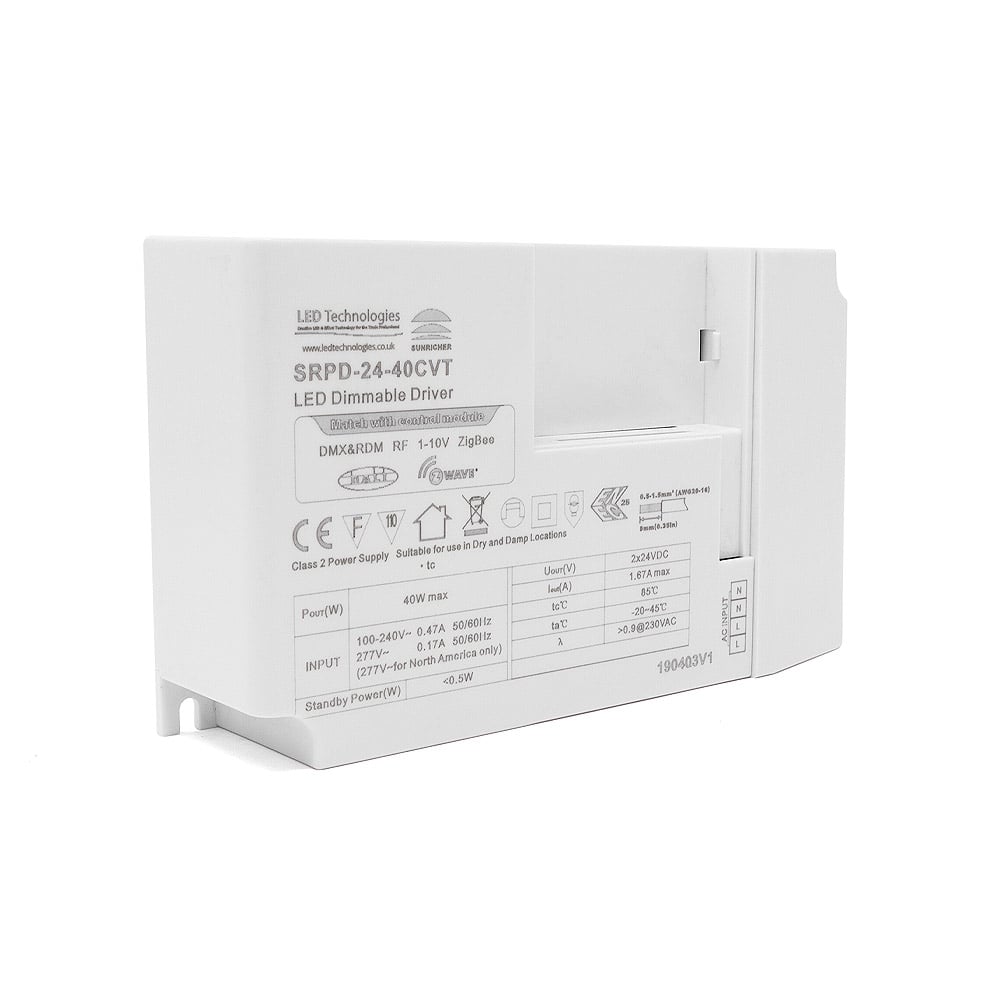

Sunricher Modular 24v 40W Two Channel Driver

Product Code: SRPD2440CVT
  • Works with plug-in control modules
  • Works as stand alone driver
  • Constant voltage 24v, 40w PWM output
  • 1,500Hz PWM frequency
  • 100v - 240v AC mains input
  • Short circuit, over voltage & temp protect
  • Smooth flicker free dimming
  • Works with 24v LED products
CRI 80
5 Year Guarantee
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
40w
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

This smart 40w 2 channel dimmer module is from the Sunricher range. It is UL & ENEC-approved unit that features the ability to change the input protocol that the driver will work with. This is achieved by inserting the appropriate plug-in control module.

The control module transforms the LED driver 2 channel into a LED light controller. This means that you have one unit rather than a driver and a separate controller or decoder making controlling your lights easy.



There are various modules available including:

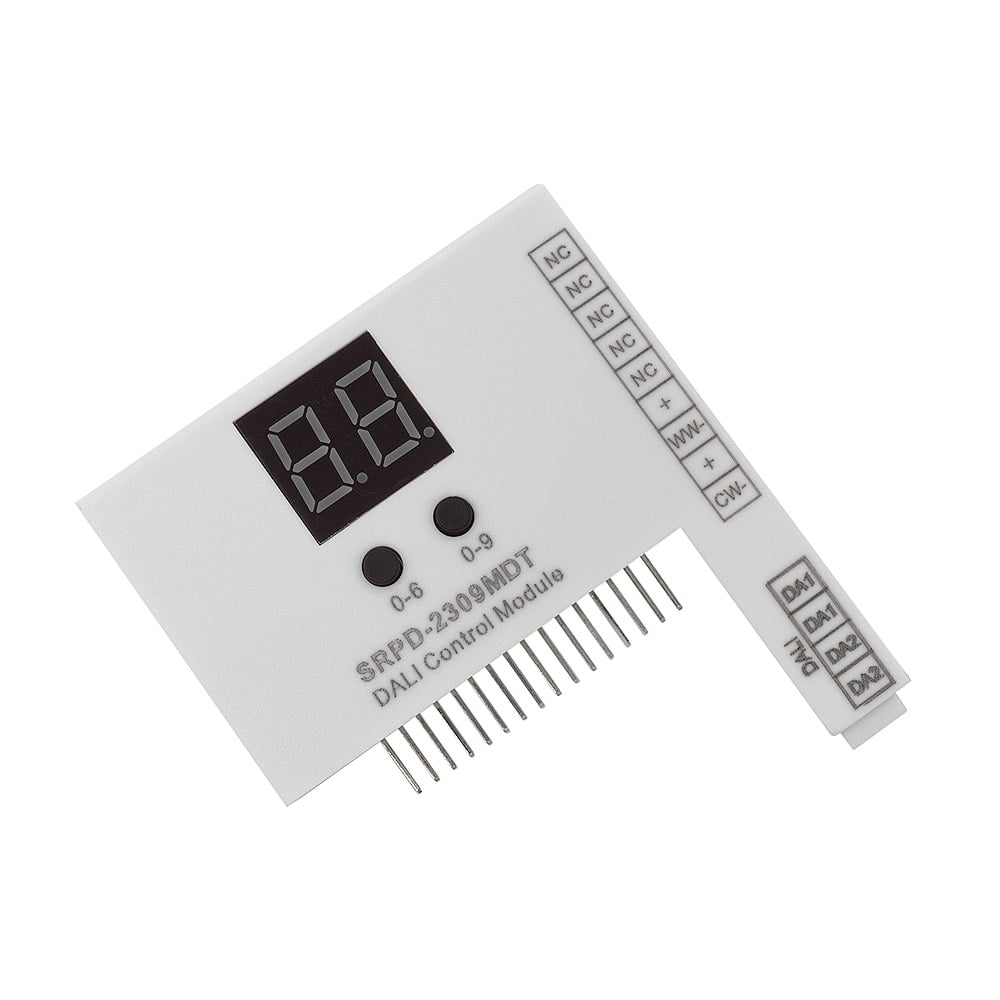

  • DALI (DT6 & DT8)

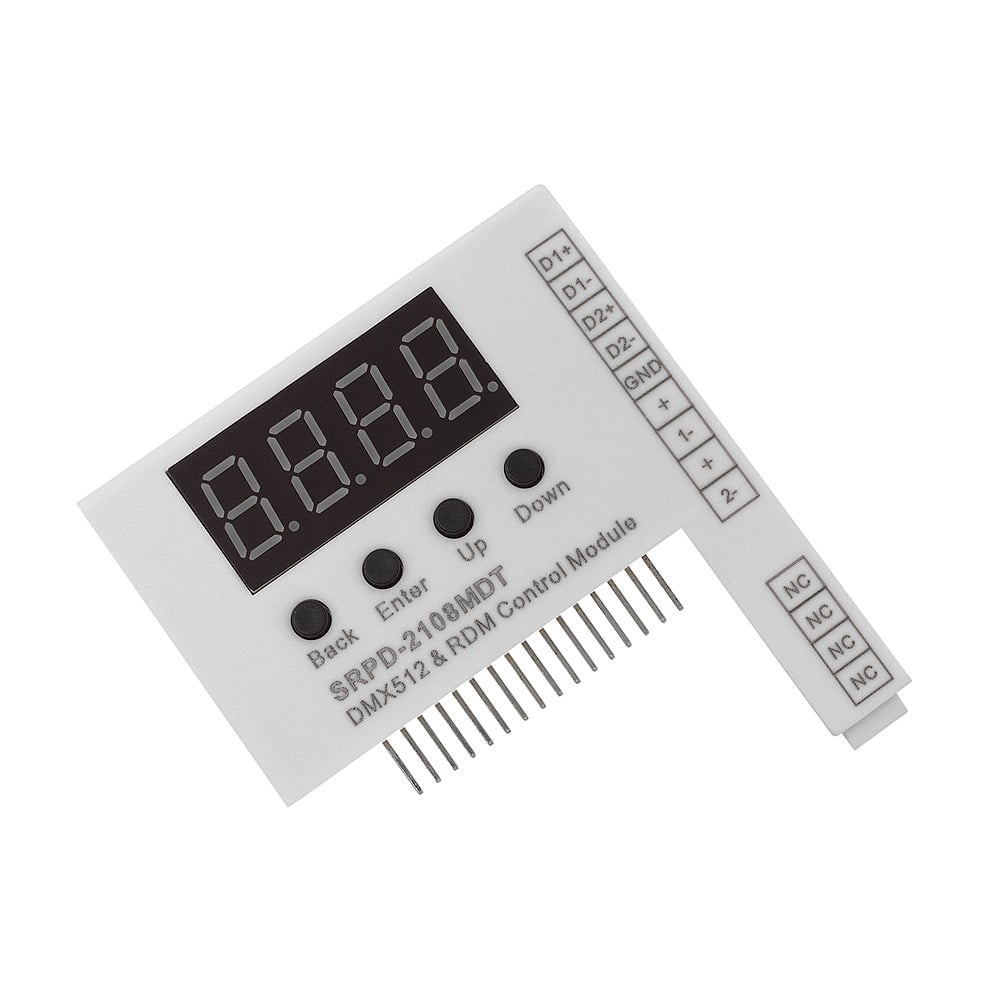

  • DMX512 & DMX512 with RDM
  • RF (remote control)
  • 1-10V protocols
  • ZIGBEE (Home automation)
  • Z-Wave, (Home automation)
  • and much more available soon.

The PWM digital dimming output enables smooth dimming down to 0.11% with no flicker or noise.



This 2 channel LED driver is ideal for domestic and commercial installation. It can be used in a range of spaces such as hotels, offices and your home. It features short circuits, over-voltage and temperature protection to ensure safety when used.



This modular 2 channel LED driver requires a 100v or 240v DC power supply. It has a 24v DC 40w two-channel constant voltage output.

This 2 channel LED driver is ideal for controlling the lighting fixtures in your smart home. It can be integrated into multiple Mesh networks that can be integrated within your home automation network. This ensures that your professional lighting can be effortlessly controlled.



For more information on this product, don't hesitate to get in touch with our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Controls through our website or contact our technical sales team.

Quick Specs

CRI 80
5 Year Guarantee
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
40w

What's in the box?

  • 24v 40w Sunricher Modular Driver
  • Instruction manual
Product Code: SRPD2440CVT
Product Packed Gift box
Manufacturer LED Technologies
Product Type Controller / Driver
Colour White
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
5 Years
Wattage 40W
Input Voltage
This is the required amount of volts needed to power the product.
100V - 240V AC
Output Voltage 24V DC
Connectivity Multiple
PCB Weight Not Applicable
Size 144 x 84 x 36mm
CRI Rating (greater than) CRI >80
Dimmable: No
LED Type Not Applicable
Average LED life Hrs 30,000
Power Factor > Not Applicable
Continuous Operation Not suitable for 24/7 continuous use
Voltage Type Constant Voltage
Operation Frequency 8% to 80%
Operating Temp -20 to +45
Datasheet - SRPD-12-40CVT-SRPD-24-40CVT Download
