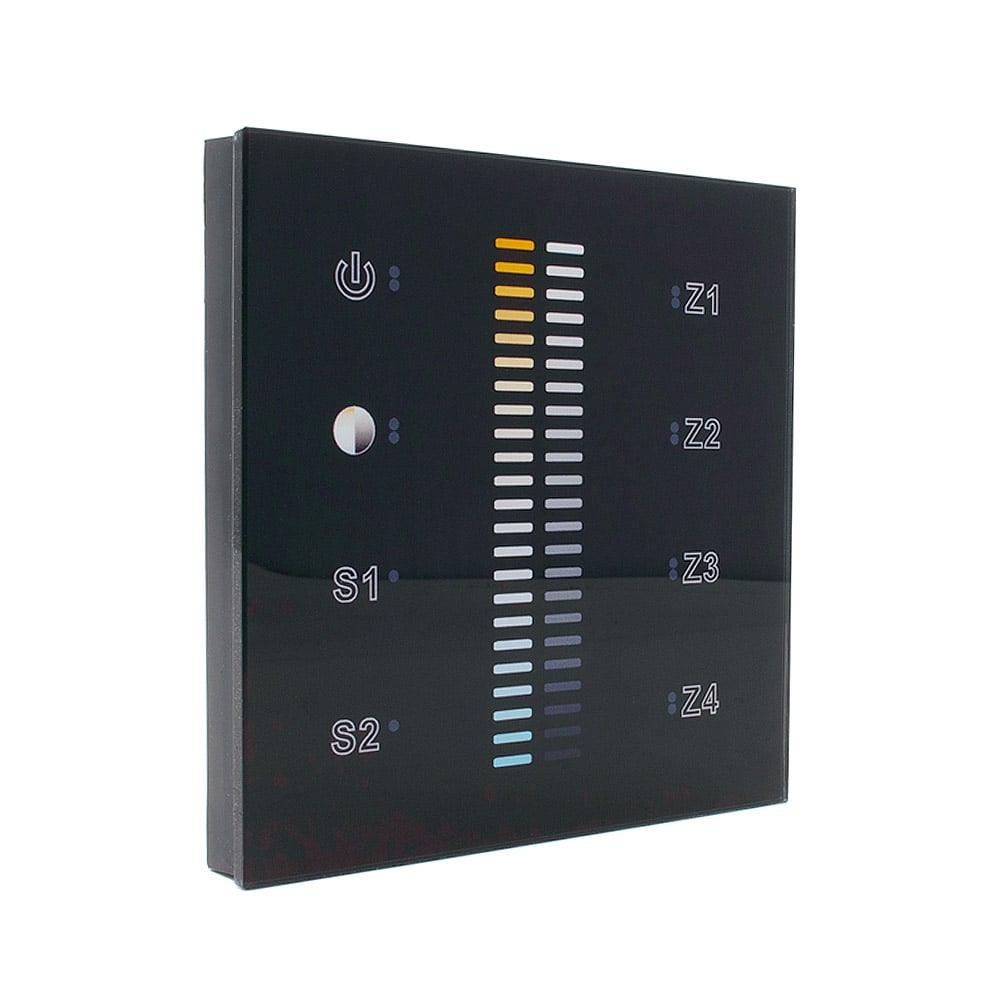

Sunricher DALI DT8 Four Group Dual Colour (CCT) Double Touch Slider DALI Wall Panel Black (Low voltage)

Product Code: SR2300TSCCTBL
  • DALI DT8 dual colour wall panel
  • Can control 4 x DALI group of devices
  • 2 x programmable scenes
  • Controls all DALI devices on the circuit
  • 12v or 24v DC input
  • Rear rotary switch for assigning groups
  • Works with all available DALI products
  • Stylish touch sensitive slider controls
Black
IP20 No
12V / 24V DC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

Product Description

This DALI LED colour temperature controller is available from our stunning range of Sunricher control units. Featuring fully touch-sensitive controls, it has a gorgeous black glass finish. Perfect for controlling LED lighting including LED strip lights.

DALI LED control systems allow you to address and control lights. With bi-directional communication, lights can send information back to the user. This wall control panel complies with DALI standard protocols IEC 62386-209:2011. It supports all DALI DT8 products so it will integrate with your existing DALI system perfectly.



Using the high-quality touch panel, this CT control wall switch features:

  • Easy switching (On/Off)
  • 4 zone control
  • Smooth dimming
  • Smooth colour temperature adjustment
  • 2 programmable scenes

Each zone controls one DALI address. Two rotary switches on the back of the device enable the DALI address to be adjusted thus changing the address assigned to the zones.



The DALI wall panel requires a connection to a DALI BUS power supply.



For more information on this product and control options, please contact our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Controls through our website or contact our technical sales team.

Quick Specs

  • CRI Rating (greater than)CRI >80
  • ColourBlack
  • Guarantee Period5 Years
  • IP RatingIP20 Non-Waterproof
  • Colour Temperature VariationIP20 No
  • Input Voltage12V / 24V DC

What's in the box

  • DALI DT8 Four Group Dual Touch Slider Colour Wall Panel
  • Fixing Kit
  • Instruction Manual

Technical Specification

  • Product Code: SR2300TSCCTBL
  • Product Packed Gift box
  • Manufacturer LED Technologies
  • LED Strip Brands Sunricher
  • Product Type Controller
  • Colour Black
  • IP Rating IP20 Non-Waterproof
  • Guarantee Period 5 Years
  • Input Voltage 12V / 24V DC
  • Connectivity DALI DT8 Protocols
  • PCB Weight Not Applicable
  • Size 86 x 86 x 29.1mm
  • CRI Rating (greater than) CRI >80
  • Dimmable: Yes
  • LED Type Not Applicable
  • Average LED life Hrs 30,000
  • Power Factor > Not Applicable
  • Continuous Operation Not suitable for 24/7 continuous use
  • Voltage Type Constant Voltage
  • Relative Humidity 8% to 80%
  • Operating Temp 0-40°C

Product Datasheets

  • pdf Datasheet - SR2300TSCCTBL Download
