Sunricher DMX 5 x Channel RGB+CCT Double Touch Slider Wall Panel White (Low voltage)

Product Code: SR28345CDMXWH
  • Twin touch back-lit slider controls
  • Single scene for store & recall
  • Ten built in programs
  • 12v - 24v connection only required
  • Smooth RGB+CCT adjustment & dimming
  • Separate main dimming control
  • Works with all DMX512 decoders
  • Stylish white glass panel design
CRI 80
5 Year Guarantee
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
IP Rating 20
DMX
View full product details and specification

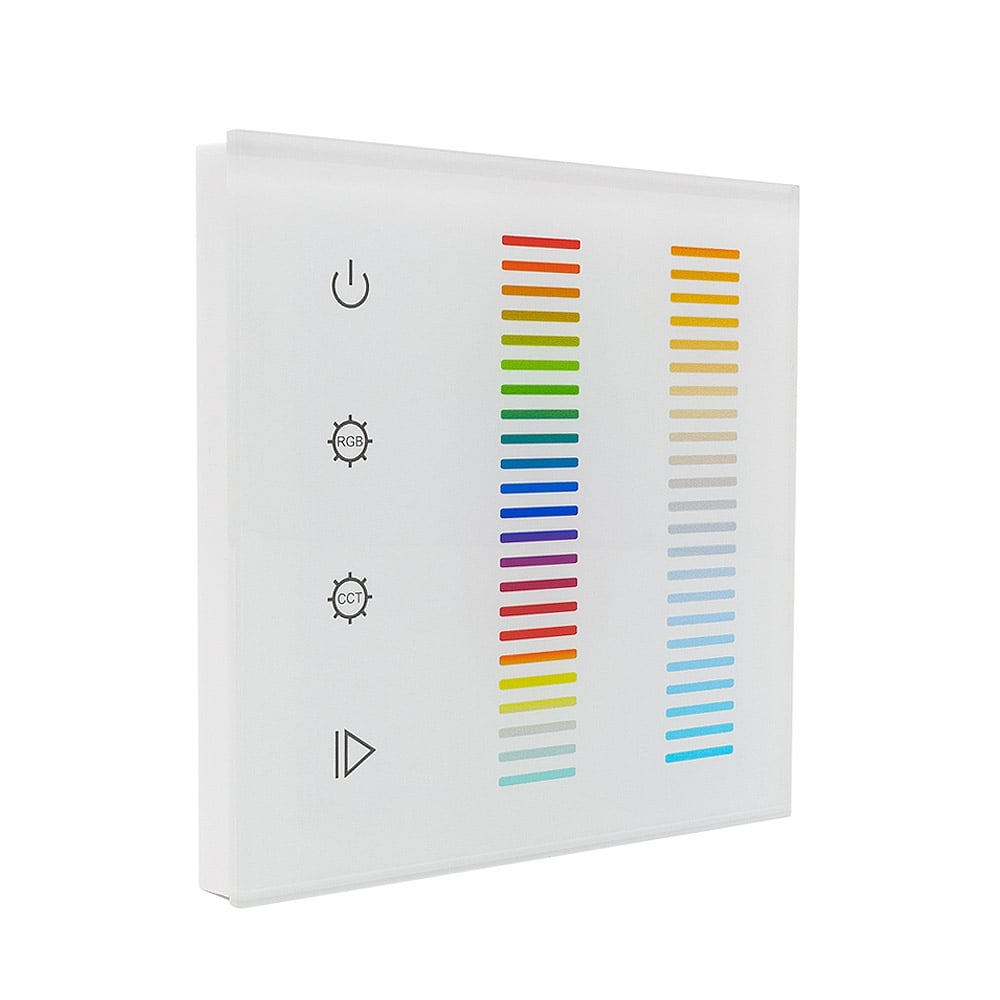

main product photo
Currently in Stock
Next day delivery available*
In stock
Speak with an Expert
Speak with an Expert

Product Description

This touch-sensitive RGB+CCT DMX controller is available from our fantastic range of Sunricher control gear. Featuring easy to use touch sliders with a stylish white glass finish. This is perfect for full control over LED lighting up to 20m away from the receiver.

Digital multiplex (DMX) is a LED lighting system that is popular for high-end productions. It can control multiple LED lighting fixtures at the same time, such as LED strip lights. This makes it perfect for large-scale projects such as stage lighting or TV production lighting.



Using high-quality touch-sensitive sliders, this RGB CCT panel features:

  • Easy Switching (On/Off)
  • Smooth Colour changing
  • Smooth colour temperature adjustment
  • Smooth brightness control
  • 10 pre-programmed dynamic modes
  • Single programmable scene
  • Backlit (for operation in the dark)



This RGB+CCT wall panel requires the main voltage supply. Wire the panel according to the instructions on the datasheet and install it into a UK wall box. Then pair it with an appropriate DMX decoder.



For more information on this product and control options, please contact our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Controls through our website or contact our technical sales team.

Quick Specs

CRI 80
5 Year Guarantee
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
IP Rating 20
DMX

What's in the box?

  • RGB+CCT Double Touch DMX Wall Panel
  • Fixing kit
  • Instruction manual
Product Code: SR28345CDMXWH
Product Packed Gift box
Manufacturer LED Technologies
Product Type Controller
Colour White
IP Rating IP20 Non-Waterproof
Guarantee Period
The guarantee period is the length of time a replacement or refund will be issued if the product becomes faulty and all operating and installation requirements have been met.
5 Years
Input Voltage
This is the required amount of volts needed to power the product.
12V / 24V DC
Connectivity DMX 512 protocols
PCB Weight Not Applicable
Size 86 x 86 x 29.1mm
CRI Rating (greater than) CRI >80
Dimmable: Yes
LED Type Not Applicable
Average LED life Hrs 30,000
Power Factor > Not Applicable
Continuous Operation Not suitable for 24/7 continuous use
Voltage Type Low Voltage
Relative Humidity 8% to 80%
Operating Temp 0-40°C
Datasheet - SR-2834DMX-5C Download
Pre-Programmed Effects List Download
