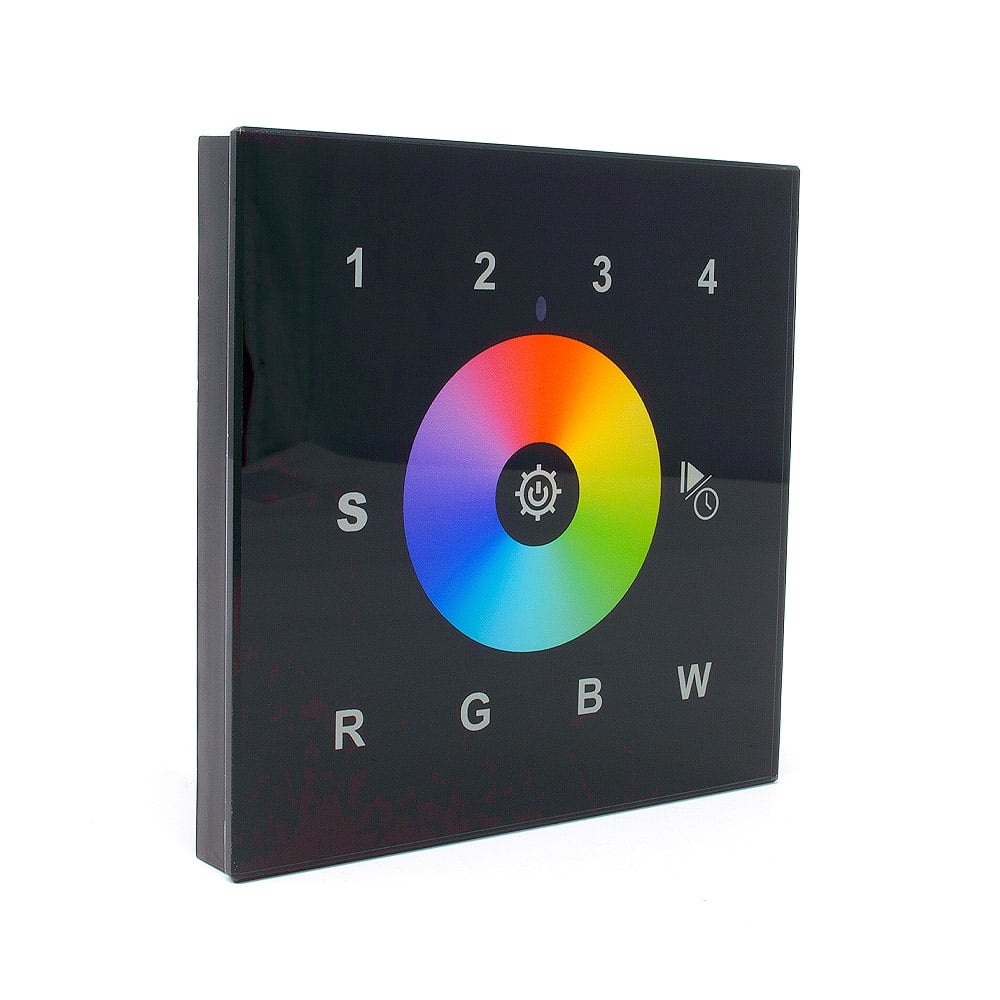

Sunricher DMX 4 x Zone Wall Panel Black (Low voltage)

Product Code: SR2812
  • RGBW colour four zone DMX wall panel
  • One programmable scene per zone
  • Ten built in adjustable programs
  • 12v or 24v Connection required
  • Smooth RGBW adjustment and dimming
  • Compatible with all DMX 512 decoders
  • Fixing Kit supplied
  • Stylish black glass panel design
IP Rating
Currently in Stock
Next day delivery available*

In stock
Speak with an Expert
Speak with an Expert

Product Description

This wall mounted four zone, single scene DMX wall panel from our range of Sunricher products is a high quality unit designed for controlling Quad Colour LED products.  It is ideal for installing in the commercial or domestic market where a reliable, high quality product is required.

Instant colour selection is available using the touch sensitive disc and it is possible to adjust the brightness levels of all four channels independently, enabling you to mix the exact colour required which can then be saved into a scene for future recall.  In addition there are ten effects that can be selected and adjusted for both run speed and brightness.

This product is compatible with our range DMX decoders which will control 12v, 24v or 36v quad colour products.
The wall panel has an attractive black finished touch sensitive glass panel.

Quick Specs

CRI Rating
IP Rating

What's in the box?

  • RGBW colour changing four zone wall panel
  • Fixing kit
  • Instruction manual
Product Code: SR2812
Product Packed Gift box
Manufacturer LED Technologies
Product Type Controller
IP Rating IP20 Non-Waterproof
Guarantee Period 5 Years
Input Voltage
This is the required amount of volts needed to power the product.
12v / 24v DC
Connectivity DMX 512 protocols
PCB Weight Not Applicable
Size: 86 x 86 x 29.1mm
CRI Rating (greater than) CRI >80
Dimmable: Yes
LED Type: Not Applicable
Average LED life Hrs 30,000
Colour Temperature Variation IP20 No
Power Factor > Not Applicable
Continuous Operation: Not suitable for 24/7 continuous use
Voltage Type Low Voltage
Operating Temp 0-40°C
Adjustable PWM Not Applicable
Relative Humidity 8% to 80%
Datasheet - SR2812 Download
