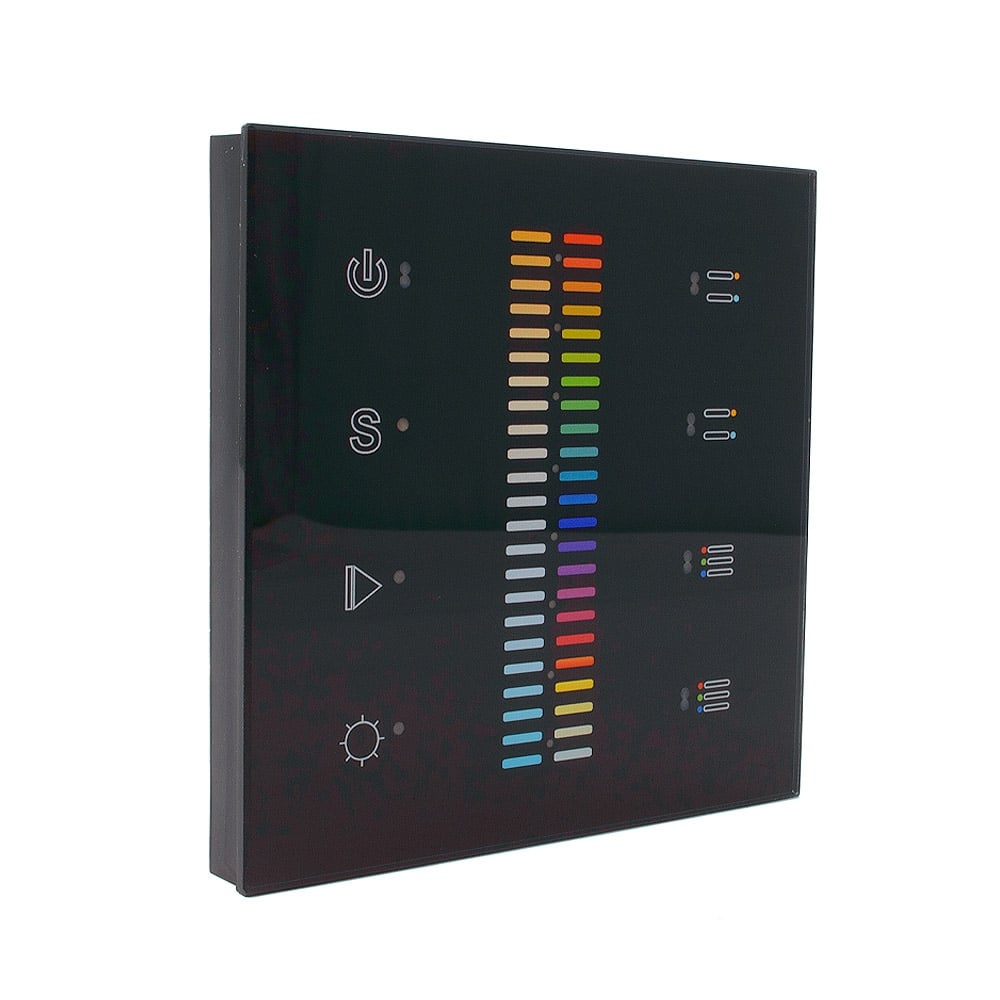

Sunricher DMX Five Channel CCT & RGB Wall Panel (Low voltage)

Product Code: SR2830CDMXBLACK
  • RGB & CCT four zone DMX wall panel
  • Two zones RGB and two zones CCT
  • One programmable scene per zone
  • RGB / CCT adjustment and dimming
  • Ten built in adjustable programs
  • Compatible wtih all DMX 512 decoders
  • 12v or 24v connection required
  • Fixing Kit supplied
Black
IP20 No
12V / 24V DC
check-circle Next day delivery available*

*We will endeavour to ship on time. Bulk/complex orders may ship the following working day.

Already have an Account? - Sign In No Account? - Create a Trade Account →

Product Description

This attractive RGB+CCT DMX controller is available from our stunning range of Sunricher control systems. Featuring fully touch-sensitive controls, it has a beautiful black glass finish. Perfect for controlling LED lighting such as LED strip lights.

DMX 512 (Digital Multiplex) is a lighting standard used in film and theatre for set and stage lighting. It is also widely used for domestic and commercial lighting projects.



Using high-quality touch-sensitive sliders, this RGB+CCT panel features:

  • Easy switching (On/Off)
  • Smooth colour temperature adjustment
  • Smooth brightness control
  • Single programmable scene
  • 10 dynamic modes
  • 2 RGB zones and 2 CCT zones



This DMX dimmer switch requires a 12v-36v DC power supply to operate. Wire according to the instructions on the datasheet and install it into a UK wall box. Then pair the DMX wall panel with a DMX decoder for full control over LEDs.



For more information on this product and control options, please contact our sales team. Call, email or use our online live chat to talk to our technical sales team.

Shop our range of LED Controls through our website or contact our technical sales team.

Quick Specs

  • CRI Rating (greater than)CRI >80
  • ColourBlack
  • Guarantee Period5 Years
  • IP RatingIP20 Non-Waterproof
  • Colour Temperature VariationIP20 No
  • Input Voltage12V / 24V DC

What's in the box

  • RGB & Duel colour changing four zone wall panel
  • Fixing kit
  • Instruction manual

Technical Specification

  • Product Code: SR2830CDMXBLACK
  • Product Packed Gift box
  • Manufacturer LED Technologies
  • LED Strip Brands Sunricher
  • Product Type Controller
  • Colour Black
  • IP Rating IP20 Non-Waterproof
  • Guarantee Period 5 Years
  • Input Voltage 12V / 24V DC
  • Connectivity DMX 512 protocols
  • PCB Weight Not Applicable
  • Size 86 x 86 x 29.1mm
  • CRI Rating (greater than) CRI >80
  • Dimmable: Yes
  • LED Type Not Applicable
  • Average LED life Hrs 30,000
  • Power Factor > Not Applicable
  • Continuous Operation Not suitable for 24/7 continuous use
  • Voltage Type Low Voltage
  • Relative Humidity 8% to 80%
  • Operating Temp 0-40°C

Product Datasheets

  • pdf Datasheet - SR2830CDMXBLACK Download
  • pdf Pre-Programmed Effects List Download
